NVR5464-16HP-EI2 | NVR 64 IP CHANNELS ONVIF® DAHUA - 4K ULTRA HD - 16 POE PORTS - H.265+ - UP TO 32 MEGAPIXELS - ARTIFICIAL INTELLIGENCE


Dahua

The Dahua NVR5464-16HP-EI2 is a network video recorder from the WizSense EI2 range, designed for high-performance professional video surveillance systems. It offers 64 IP channels , support for up to 32 MP and 8K HDMI output for the highest quality images. AcuPick technology enables fast and precise searches, while the NVR NEXT interface simplifies management and improves operational efficiency. AI features include Perimeter Protection , Face Detection , Face Recognition , Vehicle License Plate Comparison and PPE Detection by Camera , ensuring intelligent analysis and false alarm reduction.

Main specifications:

- 64 IP Channels, Resolution up to 32MP

- 8K HDMI video output and bandwidth up to 448 Mbps

- AcuPick for intelligent target search

- NVR NEXT with intuitive modular interface

- AI Features: facial recognition, perimeter protection, ANPR

- PPE Detection by Camera for Occupational Safety

- 16 built-in PoE ports for power and direct camera connection

Further details

✅ Number of Channels :
Supports up to 64 IP channels , ideal for large video surveillance systems with centralized management and scalability
✅ Resolution:
Compatible with cameras up to 32 MP and featuring 8K HDMI output, it ensures clear and smooth images even in complex scenarios.
✅ PoE Port:
It has 16 built-in PoE ports with ePoE support (1–8 ports), allowing for direct power and connection of cameras, reducing installation costs and time .
✅ AcuPick:
Advanced search technology that uses front-end and back-end intelligence to locate people or vehicles quickly and accurately.

✅ NVR NEXT:
Modular and intuitive interface that optimizes workflows, simplifies management and increases operational efficiency.
✅ AI Features:
Thanks to deep learning algorithms, it integrates intelligent functions such as video metadata, predictive analysis and false alarm reduction.
✅ Perimeter Protection:
It offers perimeter protection on up to 8 channels from NVR and on all channels from camera , ensuring accurate monitoring of sensitive areas.
✅ Face Detection:
Face detection with attribute analysis (age, gender, mask, glasses, beard) up to 32 targets/s via AI cameras . .
✅ Face Recognition :
It supports up to 20 databases with up to 30,000 images , enabling fast and accurate identification.

✅ Vehicle License Plate Comparison:
ANPR function integrated with database of up to 20,000 license plates , with allowlist and blocklist management.
✅ Network:
Compatible with advanced protocols (HTTP/HTTPS, IPv4/IPv6, SNMP, P2P, iSCSI) and full ONVIF support for integration with third-party systems.
✅ Alarm:
It manages 16 alarm inputs and 6 alarm outputs , integrating motion detection, system anomalies, intelligent alarms and real-time notifications.
✅ PPE Detection by Camera:
Intelligent analysis for the detection of PPE (helmets, masks, jackets, glasses), with alarm generation in case of non-compliance .

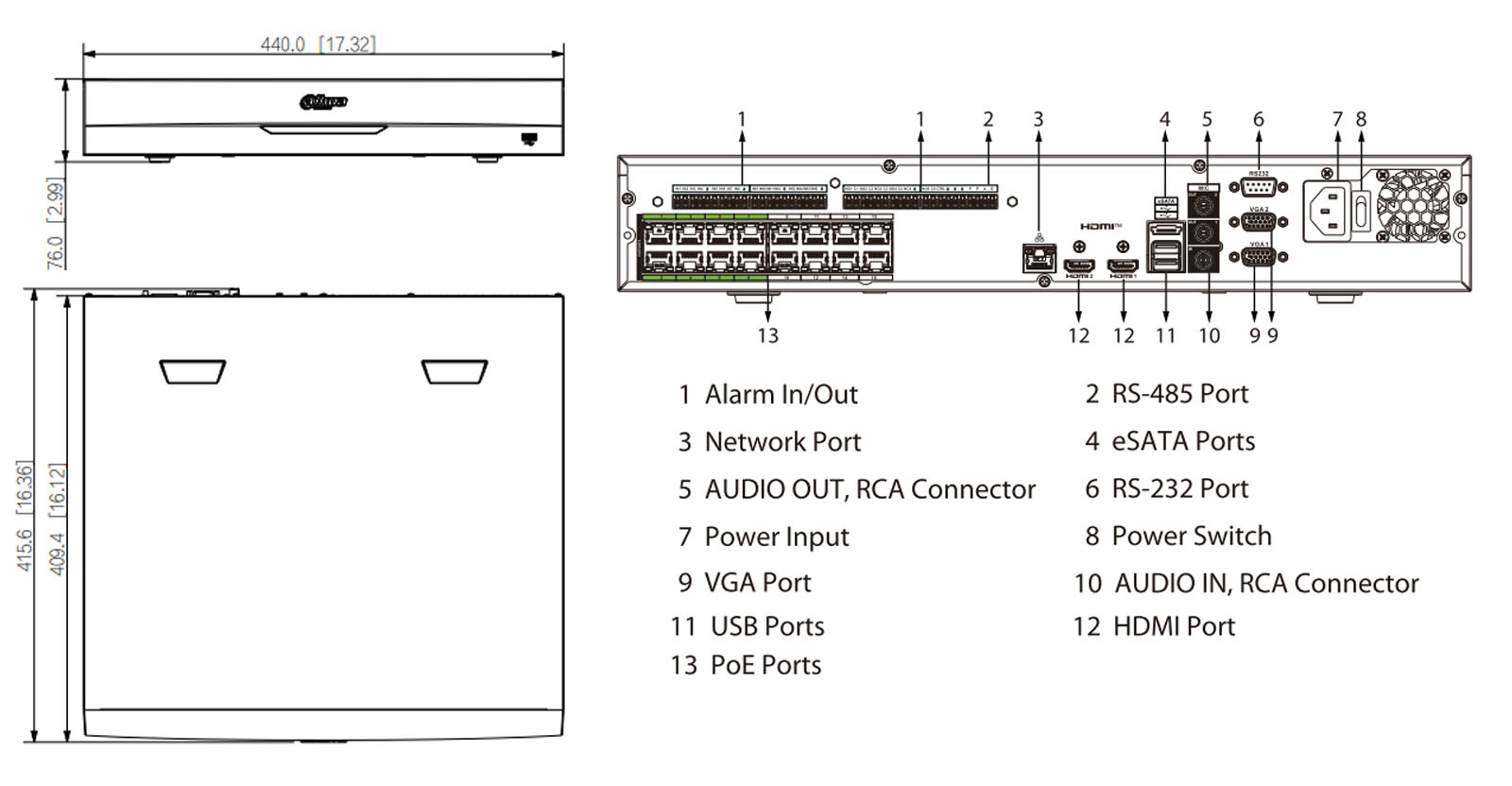

NVR5464-16HP-EI2 dimensions

Technical data sheet

NVR5464-16HP-EI2

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

TO THE

AI by Recorder

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; ANPR; SMD Plus; AcuPick

AI by Camera

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat maps; PPE detection; smart object detection; smart sound detection; AcuPick

AcuPick Performance of AI by Recorder (1080P) (Number of Channels)

4 channels

AcuPick Performance of AI by Camera (1080P) (Number of Channels)

Max. 32-channel, 1 combined event per channel/s

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

8 channels, 10 IVS rules for each channel

Perimeter Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

4 channels (up to 12 face images/s each channel)

Face Detection Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

Face Recognition

Face Database Capacity

Up to 20 face databases with 30,000 images, with a total capacity of 3.75 GB. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.

Face Recognition Performance of AI by Recorder (Number of Channels)

1. 24-channel FD (by camera) + FR (by recorder), image stream: 24 face images/s
2. 4-channe FD (by recorder) + FR (by recorder), video stream: 24 face images/s

Face Recognition Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

SMD

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera

All channels (64 targets/s)

Video Metadata

Metadata Performance of AI by Camera (Number of Channels)

4 channels, 22 attributes extraction.

Metadata Performance of AI by Camera (Number of Channels)

All channels (16 targets/s)

People Attributes

Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella

Motor Vehicle Attributes

License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location

Non-motor Vehicle Attributes

Vehicle model, vehicle color, number of persons, helmet.

Vehicle License Plate Comparison

ANPR by Camera (Number of Channels)

All channels (8 targets/s)

License Plate Database Capacity

1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist

Audio and Video

Access Channel

64 channels

Network Bandwidth

AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

Resolution

32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF

Decoding Capability

AI disabled: 2-channel 32 MP@25 fps; 2-channel 24MP@25fps; 5-channel 16MP@30fps; 6-channel 12MP@30fps; 10-channel 8MP@30fps; 13-channel 6MP@30fps; 16-channel 5MP@30fps; 20-channel 4MP@30fps; 40-channel 1080p@30fps
AI enabled: 1-channel 32 MP@25 fps; 2-channel 24MP@25fps; 4-channel 16MP@30fps; 5-channel 12MP@30fps; 8-channel 8MP@30fps; 10-channel 6MP@30fps; 12-channel 5MP@30fps; 16-channel 4MP@30fps; 32-channel 1080p@30fps

Video Output

2 VGA, 2 HDMI
VGA: 1920×1080, 1280×1024, 1280×720
HDMI: 7680×4320, 3840×2160, 1920×1080, 1280×1024, 1280×720
Heterogeneous video source output for HDMI1 and HDMI2
Simultaneous video source output for VGA1 and HDMI1
Simultaneous video source output for VGA2 and HDMI2

Multi-screen Display

Main screen: 1/4/8/9/16/25/36/64
Subscreen: 1/4/8/9/16

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

Compression Standard

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio Compression

G.711a; G.711u; PCM; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; FTP; SFTP; DHCP; DNS; SMTP; UPnP; DDNS; SNMP; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 24.12(Profile T; Profile S; Profile G; Profile M); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Recording Playback

Multi-channel Playback

Up to 16 channels

Record Mode

General, motion detection; intelligent; alarm; POS

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm

Anomaly Alarm

Camera offline; storage errors; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fans; cybersecurity exception

Intelligent Alarm

Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat maps; PPE detection; smart object detection; smart sound detection

Alarm Linkage

Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzers; log, preset; e-mail

Port

Audio Input

1-channel RCA

Audio Output

2-channel RCA

Alarm Input

16 channels

Alarm Output

6 channels (1-channel 12V 1A output)

HDD Interface

4 SATA ports, each disk can contain up to 20TB. This limit varies depending on the environment temperature.

eSATA

1

RS-232

1

RS-485

1

USB

3 (1 front USB 2.0 port, 2 rear USB 3.0 port)

HDMI

2

VGA

2

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

PoE Port

16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE

General

Power Supply

100–240 VAC, 50/60 Hz

Power Consumption

Total output of NVR is <13 w="" without="" hdd="" total="" output="" power="" of="" poe="" is="" 200="" the="" maximum="" a="" single="" port="" 25="" 5="" p="">

Net Weight

4.56 kg (10.05 lb)

Gross Weight

6.65 kg (14.66 lb)

Product Dimensions

440.0 mm × 415.6 mm × 76.0 mm (17.32" × 16.36" × 2.99") (W × D × H)

Packaging Dimensions

529.0 mm × 499.0 mm × 211.0 mm (20.83" × 19.65" × 8.31") (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Certifications

CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
