The XVR1B04-I/T WizSense is a professional 4-channel digital video recorder designed for advanced video surveillance systems, ideal for residential and commercial contexts thanks to the integrated AI technology. It supports SMD Plus with intelligent distinction between people and vehicles , drastically reducing false alarms, and offers two-way audio over coaxial cable for immediate communication. It guarantees maximum compatibility with HDCVI, AHD, TVI, CVBS and IP , integrates Smart H.265+/AI Coding compression to optimize space and bandwidth and allows simple management via mobile app and web interface, ensuring efficient and reliable remote control . Dahua
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

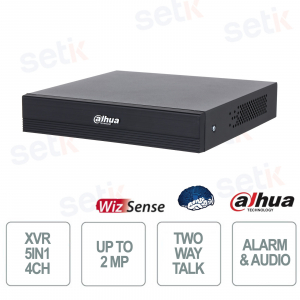

XVR1B04-I/T | WIZSENSE 4CH PENTA-BRID 1080N/720P COOPER 1U 1HDD DIGITAL VIDEO RECORDER

The Dahua XVR1B04-I/T WizSense is a 4-channel AI digital video recorder designed for professional video surveillance systems that require reliability, accuracy, and ease of management. Thanks to WizSense technology with deep learning algorithm, the device guarantees continuous 24/7 monitoring, intelligently distinguishing people and vehicles and reducing false alarms. Penta-brid compatibility allows integration with various types of analog and IP cameras, while advanced compression optimizes storage space and bandwidth, making it an efficient and scalable solution for homes, shops, and businesses.
Main specifications:
- SMD Plus with intelligent recognition of people and vehicles
- 4-channel penta-brid video recorder compatible with HDCVI, AHD, TVI, CVBS and IP
- Two-way audio over coaxial cable for real-time communication
- Smart H.265+ compression and AI Coding for bandwidth and storage reduction
- Support up to 5 IP cameras with remote management via app and web
- WizSense technology with dedicated AI chip for advanced video surveillance
Further details

Technical data sheet
| XVR1B04-I/T | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Industrial-grade processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Interface |
Web, Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD Plus |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD Plus by Recorder |
4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD by Camera |
5 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Analog Camera Input |
4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera Input |
1. CVI: 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IP Camera Input |
Up to 5 channels of IPC access |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encoding Capability |
Main stream: 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)Sub stream: CIF@(1 fps–15 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dual-stream |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Bit Rate |
32 kbps–4096 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Sampling |
8 kHz, 16 bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Bit Rate |
64 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output |
1 HDMI, 1 VGA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-screen Display |
When IP extension mode not enabled: 1/4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Third-party Camera Access |
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression Standard |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Compression |
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Compression |
G.711a; G.711u; PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Phone Access |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browser |
Chrome; IE; Safari; Edge; Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Recording Playback |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Record Mode |
General; alarm; motion detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Recording Playback |
1/4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Backup Method |
USB device and network |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Playback Mode |
Instant playback, general playback, event playback, tag playback, smart playback |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General Alarm |
Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anomaly Alarm |
Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Intelligent Alarm |
SMD Plus |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Linkage |
Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzers; log, preset; e-mail |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Input |
1-channel RCA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Output |
1-channel RCA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Two-way Talk |
Coaxial two-way talk: 4-channel BNC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Disk Interface |
1 SATA port, up to 6 TB. This limit varies depending on the environment temperature. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
USB |
2 (2 rear USB 2.0 ports) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HDMI |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VGA |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Port |
1(10/100Mbps Ethernet port, RJ-45) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
12 VDC, 1.5 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.54 kg (1.19 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
0.94 kg (2.07 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
197.0 mm × 204.3 mm × 41.5 mm (7.76" × 8.04" × 1.63") (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
332.0 mm × 64.0 mm × 240.0 mm (13.07" × 2.52" × 9.45") (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10 °C to +45 °C (+14 °F to +113 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Desktop |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE-LVD: IEC 62368-1:2014 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
