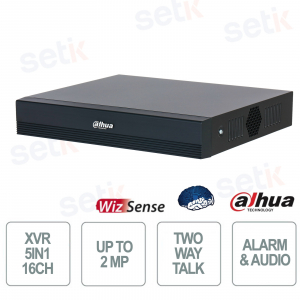

Dahua XVR1B16-I/T WizSense 16-Channel AI DVR with SMD Plus and Two-Way Audio

Dahua XVR1B16-I/T WizSense 16-Channel AI DVR with SMD Plus and Two-Way Audio
ANUNCIOS -56% nuevo

The XVR1B16-I/T WizSense is a professional 16-channel penta-brid digital video recorder designed to ensure reliable and continuous video surveillance in residential, commercial and corporate contexts. It integrates WizSense technology with artificial intelligence , which thanks to SMD Plus allows accurate detection of people and vehicles while reducing false alarms. It supports two-way audio over coaxial cable , compatibility with HDCVI, AHD, TVI, CVBS and IP cameras up to 18 IP channels , Smart H.265+/AI Coding compression to optimize bandwidth and storage space and Smart Dual Light for intelligent management of night-time lighting, offering a complete, efficient and easily manageable solution. Dahua

Technical Data Sheet

referencia : XVR1B16-I/T

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

XVR1B16-I/T | WIZSENSE 16CH PENTA-BRID 2MP COOPER 1U 1HDD DIGITAL VIDEO RECORDER


Dahua

The Dahua XVR1B16-I/T WizSense is a professional digital video recorder designed for reliable, high-performance video surveillance systems, ideal for residential, commercial, and corporate environments. WizSense technology with artificial intelligence enables advanced image analysis, improving detection accuracy and reducing false alarms. Thanks to penta-brid compatibility and advanced video, audio, and intelligent alarm management functions, this XVR represents a complete, flexible, and efficient solution for continuous monitoring of spaces.

Main specifications:

- 16 penta-brid channels for flexible management of HDCVI, AHD, TVI, CVBS and IP cameras

- WizSense technology with AI and deep learning for intelligent recognition of people and vehicles

- Advanced SMD Plus for accurate alarms and drastic reduction of false positives

- Resolution up to 1080N/720P with HDMI and VGA output for clear and stable viewing

- Two-way audio over coaxial cable for real-time communication

- Support up to 18 IP cameras up to 6MP with high bandwidth

- Smart H.265+ compression and AI Coding to optimize storage and network consumption

- Smart Dual Light for adaptive and effective night vision

- Up to 16TB SATA enclosure for 24/7 continuous video storage

Further details

Number of Channels:
16-channel penta-brid video recorder designed to flexibly manage analog and IP cameras, with support for up to 18 IP channels , ideal for scalable video surveillance systems in residential, commercial and corporate environments.
Maximum resolution :
It supports recording up to 1080N/720P on analog cameras and IP inputs up to 6 MP , ensuring stable and detailed images for continuous and reliable monitoring.
WizSense Technology:
Advanced platform based on dedicated AI chip and deep learning algorithms , optimized for precise recognition of people and vehicles, increasing the efficiency of the safety system.
Two-way talk:
16-channel two-way audio function over coaxial cable , enabling real-time voice communication between camera, recorder and remote user, ideal for active deterrence and immediate event management.
SMD Plus:
Intelligent Smart Motion Detection system that filters out irrelevant motion and generates accurate alarms only when people or vehicles are present, drastically reducing false alarms caused by environmental factors.
Smart Dual Light:
Intelligent lighting technology that automatically switches between infrared and white light based on AI detection, improving nighttime visibility and reducing light pollution.
Audio and Video:
Full compatibility with HDCVI, AHD, TVI, CVBS and IP , combined with Smart H.265+ compression and AI Coding , to optimize bandwidth and storage space without losing quality.
Alarm:
Advanced alarm system with intelligent notifications and automatic connections to recording, snapshots, audio, buzzer and email, also manageable via mobile app and web interface.
Disk capacity:
Equipped with 1 SATA bay with support for up to 16TB , ideal for long-term video storage and 24/7 video surveillance systems.
XVR1B16H-I-T dimension

Technical data sheet

XVR1B16-I/T

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

SMD Plus

SMD Plus by Recorder

16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD by Camera

18 channels

Irregular Black Block Masking

Irregular Black Block Masking by Recorder 1 channel

Audio and Video

Analog Camera Input

16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 1080p@25/30fps; 720p@25/30fps.
2. TVI: 1080p@25/30fps; 720p@25/30fps.
3.AHD: 1080p@25/30fps; 720p@25/30fps.

IP Camera Input

Up to 18 channels of IPC access
2 IP channels by default + 16 channels (analog channels are converted to IP channels)
Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps

Encoding Capability

Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: CIF@(1 fps–7 fps)

Dual-stream

Yes

Video Bit Rate

32 kbps–4096 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI, 1 VGA
HDMI: 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25

Third-party Camera Access

Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard

Video Compression

AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; IE; Safari; Edge; Firefox

Recording Playback

Record Mode

General; alarm; motion detection

Recording Playback

1/4/9/16

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback

Alarm

General Alarm

Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm

Anomaly Alarm

Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm

SMD Plus

Alarm Linkage

Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzers; log, preset; e-mail

Port

Audio Input

1-channel RCA
16-channel BNC (Coaxial Audio)

Audio Output

1-channel RCA

Two-way Talk

Coaxial two-way talk: 16-channel BNC
Local and network user two-way talk: Shares the same audio input with the first channel

Disk Interface

1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.

USB

2 (2 rear USB 2.0 ports)

HDMI

1

VGA

1

Network Port

1(10/100Mbps Ethernet port, RJ-45)

General

Power Supply

12 VDC, 2 A

Power Consumption

Net Weight

0.96 kg (2.12 lb)

Gross Weight

1.54 kg (3.40 lb)

Product Dimensions

260.0 mm × 231.6 mm × 47.6 mm (10.24" × 9.12" × 1.87") (W × D × H)

Packaging Dimensions

344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × 11.30") (W × D × H)

Operating Temperature

–10 °C to +45 °C (+14 °F to +113 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Installation

Desktop

Certifications

CE-LVD: IEC 62368-1:2014
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
