XVR5116H-4KL-I3/T - WizSense is a 16-channel Penta-brid 4K/5MP digital video recorder with support for up to 32 8MP IP cameras and input bandwidth up to 128 Mbps , ideal for professional video surveillance systems. It integrates advanced AI functions such as AcuPick on 8 channels , Perimeter Protection with 8 channels and 10 IVS rules per channel , Face Recognition on 4 channels with a database of up to 20,000 faces and SMD Plus on 16 channels for intelligent filtering of people and vehicles. It supports AI Coding, Smart H.265+ and H.264+ , dual stream, 4K HDMI and VGA output, as well as 1 SATA HDD up to 16TB , ensuring high storage efficiency and superior video quality. Compatible with ONVIF protocols and remote access via iOS and Android, it represents a complete, scalable and high-performance solution for advanced security. Dahua
BUSQUE INSTALADOR

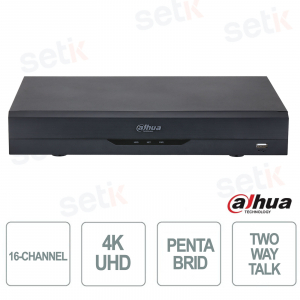

XVR5116H-4KL-I3/T | PENTA-BRID 16 CHANNEL VIDEO RECORDER - TWO WAY TALK - WIZSENSE 4K 5MP
The Dahua XVR5116H-4KL-I3/T WizSense is a 16-channel Penta-brid 4K/5MP digital video recorder designed for advanced video surveillance systems with support for up to 32 8MP IP cameras and 128 Mbps input bandwidth. It integrates advanced artificial intelligence with AcuPick on 8 channels, Perimeter Protection with 8 channels and 10 IVS rules, Face Recognition on 4 channels with a database of up to 20,000 faces and SMD Plus on 16 channels for intelligent filtering of people and vehicles. It supports AI Coding, Smart H.265+ and dual stream, 4K HDMI and VGA output, as well as 1 SATA HDD up to 16TB , ensuring high storage efficiency and professional video quality.
Main specifications:
- 16 channels Penta-brid 4K/5MP
- Support up to 32 8MP IP cameras
- AcuPick 8 channels
- 8 channel Perimeter Protection with 10 IVS
- 4-channel Face Recognition with 20,000 face database
- SMD Plus 16 channels (people/vehicle filtering)
- AI Coding and Smart H.265+
- 1 SATA HDD up to 16TB
Further details
✅ Number of Channels:
16-channel Penta-brid video recorder with support for HDCVI, AHD, TVI, CVBS and IP inputs, expandable up to 32 IP cameras (8MP) with input bandwidth up to 128 Mbps , ideal for scalable professional video surveillance systems.
✅ Maximum resolution :
It supports up to 4K Ultra HD recording, compatible with up to 8MP IP and 5MP analog cameras, with 4K (3840×2160) HDMI and Full HD VGA video output, ensuring sharp images and high details.
✅ Perimeter Protection:
AI Perimeter Protection function on 8 channels with 10 IVS rules per channel (tripwire and intrusion detection) that reduces false alarms by distinguishing people and vehicles.
✅ Two-Way Talk:
Two-way audio system on 16 coaxial channels (BNC) that allows direct communication between camera and recorder, with RCA audio input/output for advanced management of voice alerts.
✅ Face Detection:
Face detection with analysis of up to 4 channels and management of 6 facial attributes , capable of processing up to 12 face images/sec per channel for advanced security applications.
✅ Face Recognition:
4-channel facial recognition system with a database of up to 20,000 images and management of up to 10 databases , ideal for access control and advanced identification.
✅ AcuPick:
Proprietary 8-channel AcuPick AI technology enables intelligent and rapid target search within recordings, optimizing video analysis times.
✅ Alarm:
Supports AI intelligent alarms (Face Detection, Face Recognition, Perimeter Protection, SMD Plus), motion, disk and network abnormality alarms, with notifications via recording, snapshot, buzzer, email and IPC alarm output.
✅ Doors:
Equipped with 1 HDMI, 1 VGA, 1 RJ-45 Gigabit, 2 USB (2.0 + 3.0), RS-485, 16 BNC video, RCA audio input/output , ensuring maximum connectivity for professional systems
✅ Supported disks:
It supports 1 SATA HDD up to 16TB , ensuring ample storage capacity for continuous high-resolution recording.
It supports 1 SATA HDD up to 16TB , ensuring ample storage capacity for continuous high-resolution recording.
Technical data sheet
| XVR5116H-4KL-I3/T | |
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AcuPick | |
| AcuPick AI by Recorder (Number of Channels) | 8 channels |
| Perimeter Protection | |
| Perimeter Performance AI by Recorder (Number of Channels) | 8 channels, 10 IVS rules for each channel |
| Face Detection | |
| Face Attributes | 6 attributes |
| Face Detection Performance of AI by Recorder (Number of Channels) | 4 channels (up to 12 face images/s each channel) |
| Privacy Protection | |
| Privacy Protection Performance of AI by Recorder (Number of Channels) | 1 channel |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20,000 images. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 4 channels |
| SMD | |
| SMD Plus by Recorder | 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | 32 channels |
| AI Video Quality Analytics | |
| AI Video Quality Analytics by Recorder | 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white. |
| Scene Changing | |
| Scene Changing by Recorder | 1 channel |
| Irregular Black Block Masking | |
| Irregular Black Block Masking by Recorder | 1 channel |
| EPTZ | |
| EPTZ by Recorder | 1 channel |
| Audio and Video | |
| Analog Camera Input | 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 4K@25/30fps; 4K@12.5/15fps; 6MP@20fps; 5MP@25fps; 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps. 2. TVI: 4K@15fps; 5MP(2560 x 1944)@20fps; 5MP(2960 x 1665)@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. 3. AHD: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. |
| IP Camera Input | Up to 32 channels of IPC access 16 IP channels by default + 16 channels (analog channels are converted to IP channels) Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection Perimeter Protection, AcuPick and Privacy Protection cannot be used. |
| Encoding Capability | Encode Enhancement disabled: Main stream: the 1st, 9th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps); the 1st, 9th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps); the 1st, 9th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps); the 1st, 9th channel 4 MP/3 MP@(1 fps–25/30 fps), 4 MP/3 MP@(1 fps–15 fps); 4K@(1fps–8fps); 4K-N/5 MP@(1 fps-15 fps);4M-N/1080p/720p/960H/D1/CIF@(1 fps–25/30 fps) Substream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30 fps) Encode Enhancement enabled: Main stream: the 1st, 5th, 9th, 13th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps); the 1st, 5th, 9th, 13th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps); the 1st, 5th, 9th, 13th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps); the 1st, 5th, 9th, 13th channel 4 MP/3 MP@(1 fps–25/30 fps), 4 MP/3 MP@(1 fps–15 fps); 4K/6MP@(1fps–10fps); 4K-N/5MP@(1fps-15fps); 1080p/720p/960H/D1/CIF@(1fps–25/30fps) Substream 960H@(1fps–15fps); D1/CIF@(1 fps–25/30 fps) *When Encode Enhancement is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, AcuPick and Privacy Protection cannot be used. |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 VGA, 1 HDMI VGA:1920×1080, 1280×1024, 1280×720 HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 Heterogeneous video source output for HDMI and VGA |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 24.12(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General; alarm; motion detection; intelligent; POS |
| Recording Playback | 1/4/9/16 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Alarm | |
| General Alarm | Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm | Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; audio; buzzers; log; presets; e-mail |

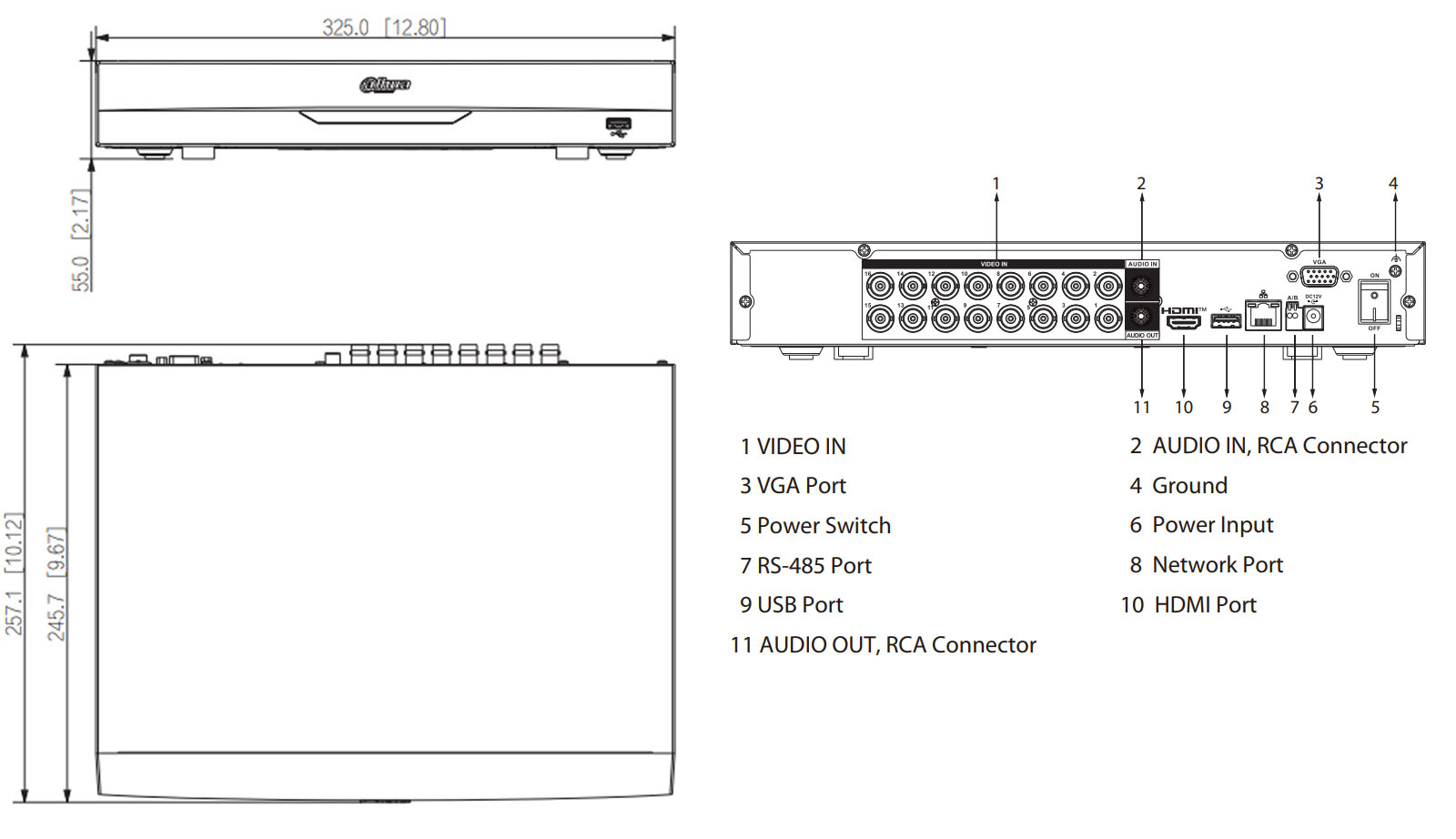

| Port | |
| Audio Input | 1-channel RCA 16-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Coaxial two-way talk: 16-channel BNC Local and network user two-way talk: Shares the same audio input with the first channel |
| Disk Interface | 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 3 A |
| Power Consumption | <15 w="" without="" hdd="" td=""> |
| Net Weight | 1.39 kg (3.06 lb) |
| Gross Weight | 2.06 kg (4.54 lb) |
| Product Dimensions | 325.0 mm × 257.1 mm × 55.0 mm (12.80" × 10.12" × 2.17") (W × D × H) |
| Packaging Dimensions | 374.0 mm × 119.0 mm × 311.0 mm (14.72" × 4.68" × 12.24") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Installation | Desktop |
| Certifications | CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
