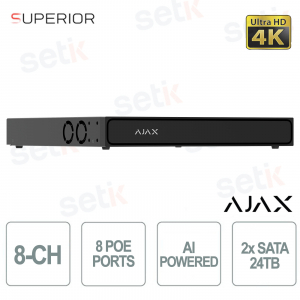

Superior NVR H2DAI8PAC 8-Channel 4K AI with 8 PoE 200W and 24TB HDD Black for Professional IP Video Surveillance - Ajax

Superior NVR H2DAI8PAC 8-Channel 4K AI with 8 PoE 200W and 24TB HDD Black for Professional IP Video Surveillance - Ajax
ANUNCIOS nuevo

140924.122.BL1 # 140924 | The black Ajax Superior NVR H2DAI8PAC (8-ch) is a professional AI network video recorder with 8 IP channels and recording up to 12 MP , featuring 4K HDMI 3840×2160 output for ultra-high definition images. It integrates 8 IEEE 802.3af/at PoE ports up to 25 W per port with a total budget of 200 W , allowing direct powering of IP cameras without external switches. It supports AI-powered object detection for people, animals and vehicles, line crossing and motion detection on 8 channels, with bandwidth up to 384 Mbps in and out for high performance. It has 2 SATA III HDDs up to 24 TB with hot-swap , H.265/H.264 compression, integrated VMS with video wall and ONVIF Profile S/T compatibility, ensuring maximum reliability, scalability and advanced management for professional IP video surveillance systems. Ajax

Technical Data Sheet

referencia : 140924.122.BL1

brand : Ajax Systems

Manufacturer Object ( [id] => 31 [name] => Ajax Systems [description] =>

Establecido en 2011, Ajax Systemconstruye sistemas inalámbricos de incendio y alarma con la tecnología inalámbrica JEWELLER que le permite monitorear de manera segura todos los dispositivos de red conectados. Ajax System ofrece soluciones para el hogar, la oficina o las actividades comerciales, gestionables a través de la App, siempre actualizadas y compatibles con los sistemas iOS y Android. Los sistemas de alarma de Ajax System son fáciles de instalar, de hecho sólo toma 15 segundos conectar la unidad de control a los sensores. Además, pueden integrarse con las cámaras de vigilancia, tienen un margen de error casi nulo y, en caso de peligro, en menos de 150 milisegundos envían una notificación (sms, push o call).

[short_description] =>

Ajax SystemsAjax Systems


Los sistemas de alarma Ajax system utilizan la última tecnología inalámbrica que hace que todos los productos sean fiables y estén siempre conectados. Además de su excelente rendimiento, los sistemas de alarma Ajax se distinguen por su diseño moderno y elegante.

[id_address] => [date_add] => 2019-01-15 15:51:16 [date_upd] => 2025-06-11 12:47:32 [link_rewrite] => ajax-systems [meta_title] => Sistemas de incendio y alarma de última generación - Ajax System [meta_keywords] => sistemi allarme ajax,sicurezza ajax,allarmi ajax,ajax security system,ajax security,ajax system [meta_description] => I sistemi allarme Ajax system sono dispositivi wireless affidabili e innovativi, non producono falsi allarmi e si installano in 15 secondi. Scoprili su Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


140924.122.BL1 | AI-ENHANCED 8-CHANNEL NETWORK VIDEO RECORDER WITH 4K OUTPUT - GIGABIT ETHERNET INTERFACE - 8 POE PORTS & 2-DRIVE SUPPORT - BLACK


Ajax

Superior NVR H2DAI8PAC (8-ch) black is a professional AI network video recorder with 8 IP channels and recording up to 12 MP , equipped with 4K HDMI 3840×2160 output for ultra-high definition images. It integrates 8 IEEE 802.3af/at PoE ports up to 25 W per port with a total budget of 200 W , ensuring direct and stable power supply to IP cameras. It supports AI-powered object detection for people, vehicles and animals, line crossing and motion detection on 8 channels, with bandwidth up to 384 Mbps in input and output for advanced network infrastructures. It has 2 SATA III HDDs up to 24 TB with hot-swappability , H.265/H.264 compression, integrated VMS with video wall and ONVIF Profile S/T compatibility, offering maximum reliability, scalability and professional management of IP video surveillance.

Main specifications:

- 8 IP channels with recording up to 12 MP

- HDMI 4K 3840×2160 output

- 8 IEEE 802.3af/at PoE ports (25W per port, 200W total)

- AI object detection (people, vehicles, animals) and line crossing

- 2 SATA III HDDs up to 24 TB with hot-swap and redundancy mode

- 384Mbps bandwidth and ONVIF / RTSP compatibility

Further details

Number of Doors:
It supports 8 IP channels for simultaneous management of Ajax and ONVIF Profile S/T and RTSP compatible IP cameras, ideal for highly integrated professional video surveillance systems .
Resolution :
Recording up to 12MP with 4K HDMI 3840×2160 output , ensuring ultra-high definition images for detailed monitoring and playback .
Decoding :
Compatible with H.265, H.264 and JetSparrow compression , ensuring bandwidth and storage space optimization while maintaining high video quality .
Intelligent video analysis:
It integrates AI-powered object detection with people, vehicle and animal recognition , line crossing function and motion detection on 8 channels , for advanced and reliable event analysis .
Interface:
Equipped with 2 SATA III slots up to 24 TB with hot-swap , Gigabit Ethernet port , 8 integrated PoE ports and USB 2.0/3.0 , offering maximum connection and storage flexibility .
PoE Standard:
It integrates 8 IEEE 802.3af/at (Alternative A) ports with power up to 25W per port and a total budget of 200W , allowing direct and centralized powering of IP cameras .
Network :
Bandwidth up to 384 Mbps incoming and outgoing , support HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, SNMP protocols and ONVIF interoperability , ideal for advanced IP network infrastructures .
Main features :
Includes redundancy and split modes for data protection , integrated video wall , interactive timeline , visual verification of Ajax alarms and advanced configurable privacy controls .
Power supply:
Power supply 100–240 V 50/60 Hz (5 A) with consumption up to 280 W , designed for indoor installation with IP20 protection rating .

Technical data sheet

140924.122.BL1
Video
Video input 8 channels
Recording resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
HDMI output resolution 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 px
Live view / playback resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
Decoding
Format H.265, H.264, JetSparrow
Live view window division templates: 1, 4, 9, 16, 25, 5+1, 7+1, 12+1 views
Synchronous playback 4 channels
Intelligent video analytics
Motion detection Ajax camera: 8 channels
NVR: 8 channels
NVR features built-in software to detect movement in the frame. It is possible to switch between image analysis by NVR or camera algorithms in an Ajax app.
AI-powered object detection People
Pets
Vehicles
Line crossing
Interface
HDD 2 × SATA III: supports hard drives with up to 24 TB capacity (2.5" and 3.5" form factors)
Supports full hot-swap functionality. HDDs are not included.
Network 1 × RJ-45 self-adaptive Ethernet (10/100/1000 Mbps) + 802.3af/at PoE RJ-45 fast Ethernet (10/100 Mbps)
USB rear panel: 2 × USB 2.0 (Type-A)
For connecting a keyboard, mouse, or USB Audio Device Class devices (Audio IN/Audio OUT).
front panel: 1 × USB 2.0 (Type-A)
To connect a USB flash drive.
Standard PoE
PoE port 8 × IEEE 802.3af/at (Alternative A, power over data pairs)
Maximum power per port up to 25 W
Total power budget up to 200 W
Network
Bandwidth incoming: up to 384 Mbps
outgoing: up to 384 Mbps
Protocol HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS
Interoperability ONVIF
Key features
Supported devices Ajax cameras
IP cameras via ONVIF (Profile S/T) or RTSP
Redundancy mode Simultaneous recording of the same video streams to two storage devices to ensure data redundancy and reliability
Split mode Sequentially distributes video streams across multiple storage devices to balance the load and optimize storage.
Built-in video management system Integrated video wall interface with live camera feeds.
Smart event filters for quick access to relevant video recordings.
Interactive timeline with preview navigation for efficient playback and incident review.
Visual verification of Ajax system alarms NVR supports a scenario in which events triggered by Ajax detectors automatically highlight the corresponding camera feed on the video wall. This allows an operator to immediately verify the intrusion.
Privacy Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitoring company operators via Ajax PRO Desktop — are fully configurable by the device owner.
This guarantees that only authorized parties can access video streams, event history, or device settings in accordance with the owner's preferences.
Accelerometer alarm when NVR is moved
Power supply
Main 100–240 V, 50/60 Hz, 5 A
Power consumption up to 280 W
Clock battery CR2032 battery, 3 V
Only to power the system clock.
Enclosure
Dimensions 330 × 330 × 44 mm
12.99″ × 12.99″ × 1.73″
Weight 3.3 kg
7.3 lb
Without hard drives.
Operating temperature range from 0 °C to +50 °C
from 32 °F to 122 °F
Operating humidity up to 75%
Protection class IP20
Color Black
Complete set Ajax Superior NVR H2DAI8PAC (8-ch)
2 × rack-mount brackets
Power cable
Ethernet cable
Installation kit
Quick start guide
Warranty 24 months
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
