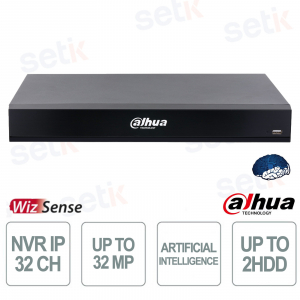

NVR5232-XI/Pro 32-Channel NVR with WizMind AI, 8K HDMI, Facial Recognition, and WizSeek - Dahua

NVR5232-XI/Pro 32-Channel NVR with WizMind AI, 8K HDMI, Facial Recognition, and WizSeek - Dahua

 
HDD space calculation
BEST PRICE -56% nuevo

NVR5232-XI/Pro is an advanced network recorder designed for professional video surveillance, equipped with WizMind artificial intelligence with deep learning models that enable intelligent video search and advanced analysis. It supports up to 32 IP channels with resolutions up to 32MP and 8K HDMI output , ensuring ultra-high definition images and smooth video stream management. It integrates advanced features such as WizSeek for natural language search , AcuPick for rapid target identification and facial recognition with a database of up to 200,000 faces . It also offers intelligent perimeter protection and false alarm reduction , making it ideal for urban security, retail and residential environments. High bandwidth capacity of up to 512 Mbps and Smart H.265+ compression ensure optimal efficiency and performance. Dahua

Technical Data Sheet

referencia : NVR5232-XI/PRO

brand : Dahua

EAN: 6937552418127

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

NVR5232-XI/PRO | DAHUA 32-CHANNEL ONVIF® IP NVR - 4K ULTRA HD - H.265+ - UP TO 32 MEGAPIXELS - ARTIFICIAL INTELLIGENCE - WIZZSEEK


Dahua

The Dahua NVR5232-XI/Pro is a professional network video recorder designed for advanced video surveillance systems, equipped with WizMind artificial intelligence with deep learning for advanced analysis of people, vehicles and events. It supports up to 32 IP channels with resolution up to 32MP and 8K HDMI output , ensuring superior video quality and efficient stream management. Thanks to WizSeek technologies for video search using natural language and AcuPick for rapid target identification , it optimizes security operations. It also integrates advanced facial recognition for up to 200,000 faces and intelligent perimeter protection , reducing false alarms and improving system reliability. Smart H.265+ compression and bandwidth up to 512 Mbps ensure high performance and storage optimization.

Main specifications:

- 32 IP channels with support up to 32MP and 8K HDMI output

- AI WizMind with deep learning and intelligent video analysis

- WizSeek for natural language video search

- AcuPick for quick target search and identification

- Facial recognition up to 200,000 faces and 20 databases

- Intelligent perimeter protection with false alarm reduction

- Smart H.265+ compression and bandwidth up to 512 Mbps

Further details

✅ Number of Channels :
The system supports up to 32 simultaneous IP channels , allowing centralized management of complex video surveillance systems with high scalability and real-time control.
✅ Resolution:
Compatible with video streams up to 32MP and HDMI 8K (7680×4320) output , it guarantees ultra-detailed images perfect for advanced analysis and professional monitoring.
✅ AcuPick:
Intelligent search technology that leverages back-end AI to quickly locate people, vehicles and objects , dramatically reducing video analysis times.
✅ AI Features:
Powered by WizMind deep learning AI , it includes advanced analytics such as video metadata, people counting, heat maps, and behavioral recognition.
✅ WizSeek :
Innovative system that enables video search using natural language , allowing you to find events, people or vehicles immediately and precisely.
✅ Perimeter Protection:
Advanced function that offers intelligent perimeter protection with false alarm filtering , distinguishing people and vehicles from environmental elements.
✅ Face Detection:
Supports multi-channel face detection with attribute extraction , ideal for security and advanced access control applications.
✅ Face Recognition :
Advanced system with facial recognition of up to 200,000 faces and 20 databases , for rapid identification and blacklist/whitelist management.

✅ Vehicle License Plate Comparison:
ANPR function with license plate recognition and database comparison of up to 20,000 vehicles , useful for access control and road safety.
✅ Alarm:
Complete management of intelligent and traditional alarms , including motion detection, system anomalies and automatic notifications with configurable response actions.
✅ Doors :
Equipped with multiple ports including HDMI, VGA, USB, RS-232, RS-485 and alarm inputs/outputs , for maximum integration with external systems.
✅ Network:
It supports advanced network protocols (HTTP, HTTPS, TCP/IP, IPv6, ONVIF) and bandwidth up to 512 Mbps, ensuring stable connectivity and complete interoperability.

Technical data sheet

NVR5232-XI/PRO

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

TO THE

AI by Recorder

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; AcuPick; WizSeek; Texted-Defined Alarming

AI by Camera

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; heat maps; PPE detection; AcuPick

AcuPick Performance of AI by Recorder (1080P) (Number of Channels)

Xinghan Large-Scale AI Models enabled：8 channels
Xinghan Large-Scale AI Models disabled：16 channels

AcuPick Performance of AI by Camera (1080P) (Number of Channels)

All channels (36 targets/s)

WizSeek
Performance 1. Compatible with cameras that support AcuPick, it can meet full-channel WizSeek.
2. Compatible with normal cameras, after enabling AcuPick by NVR, it can offer up to 8-channel WizSeek.
3. Modeling capability: up to 432,000 targets per day.
Search Language English; TradChinese; Korean

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Xinghan Large-Scale AI Models enabled：16 channels, 10 IVS rules for each channel
Xinghan Large-Scale AI Models disabled：32 channels, 10 IVS rules for each channel

Perimeter Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

Face Detection

Face Attributes

6 attributes

Face Detection Performance of AI by Recorder (Number of Channels)

Xinghan Large-Scale AI Models enabled：8 channels (up to 12 face images/s each channel)
Xinghan Large-Scale AI Models disabled：16 channels (up to 12 face images/s each channel)

Face Detection Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

Face Recognition

Face Database Capacity

Up to 20 face databases with 200,000 images, with a total capacity of 44 G.

Face Recognition Performance of AI by Recorder (Number of Channels)

32-channel FD (by camera) + FR (by recorder), image stream: 32 face images/s
Xinghan Large-Scale AI Models enabled：8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s
Xinghan Large-Scale AI Models disabled：16-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s

Face Recognition Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

SMD

SMD Plus by Recorder

Xinghan Large-Scale AI Models enabled：Not support
Xinghan Large-Scale AI Models disabled：32 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera

All channels (64 targets/s)

Video Metadata

Metadata Performance of AI by Camera (Number of Channels)

Xinghan Large-Scale AI Models enabled：8 channels, 23 attributes extraction.
Xinghan Large-Scale AI Models disabled：16 channels, 23 attributes extraction

Metadata Performance of AI by Camera (Number of Channels)

All channels (32 targets/s)

People Attributes

9 human body attributes

Motor Vehicle Attributes

9 attributes

Non-motor Vehicle Attributes

4 attributes

Vehicle License Plate Comparison

ANPR by Camera (Number of Channels)

All channels (32 targets/s)

License Plate Database Capacity

1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist

Audio and Video

Access Channel

32 channels

Network Bandwidth

AI disabled: 512 Mbps incoming, 512 Mbps recording and 384 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

Resolution

32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF

Decoding Capability

AI disabled: 22-channel 32 MP@30 fps; 3-channel 24MP@30fps; 5-channel 16MP@30fps; 6-channel 12MP@30fps; 10-channel 8MP@30fps; 13-channel 6MP@30fps; 16-channel 5MP@30fps; 20-channel 4MP@30fps; 32-channel 1080p@30fps
AI enabled: 1-channel 32 MP@25 fps; 2-channel 24MP@25fps; 4-channel 16MP@30fps; 5-channel 12MP@30fps; 8-channel 8MP@30fps; 10-channel 6MP@30fps; 12-channel 5MP@30fps; 16-channel 4MP@30fps; 32-channel 1080p@30fps

Video Output

1 VGA, 1 HDMI
VGA: 1920×1080, 1280×1024, 1280×720
HDMI: 7680×4320, 3840×2160, 1920×1080, 1280×1024, 1280×720
Heterogeneous video source output for HDMI and VGA

Multi-screen Display

Main screen: 1/4/8/9/16
Subscreen: 1/4/8/9/16

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

Compression Standard

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio Compression

G.711a; G.711u; PCM; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; FTP; SFTP; DHCP; DNS; SMTP; UPnP; DDNS; SNMP; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 24.12(Profile T; Profile S; Profile G; Profile M); CGI; SDK

Browser

Chrome; Firefox; IE

Recording Playback

Multi-channel Playback

Up to 16 channels

Record Mode

General, motion detection; intelligent; alarm; POS

Backup Method

USB device and network

Playback Mode

Instant playback; general playback; event playback; tag playback; smart playback

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm

Anomaly Alarm

Error (no disk, disk error, low space, low quota space; abnormal disk health; network disconnection; IP conflict; MAC conflict; abnormal fan speed); video loss; video tampering; offline camera; audio detection

Intelligent Alarm

Face detection; face recognition; video metadata (human, motor vehicle, and non-motor vehicle); perimeter protection; license plate comparison

Alarm Linkage

Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzers; log, preset; e-mail

Port

Audio Input

1-channel RCA

Audio Output

1-channel RCA

Alarm Input

4 channels

Alarm Output

2 channels

HDD Interface

2 SATA ports, each disk can contain up to 20TB. This limit varies depending on the environment temperature.

RS-232

1

RS-485

1

USB

2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI

1

Network Port

1(10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

12 VDC, 4 A

Power Consumption

Net Weight

1.65 kg (3.64 lb)

Gross Weight

3.19 kg (7.03 lb)

Product Dimensions

375.0 mm × 329.6 mm × 53.0 mm (14.76" × 12.98" × 2.09") (W × D × H)

Packaging Dimensions

451.0 mm × 147.0 mm × 425.0 mm (17.76" × 5.79" × 16.73") (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Certifications

Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
