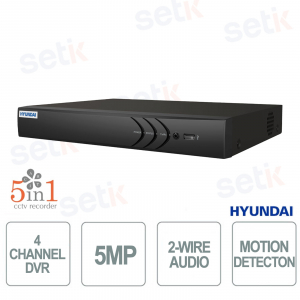

Hyundai AISense 5MP 4-Channel 5-in-1 DVR with AI, H.265+, Face Recognition, and Remote Access

Hyundai AISense 5MP 4-Channel 5-in-1 DVR with AI, H.265+, Face Recognition, and Remote Access

 
HDD space calculation
nuevo

HYU-1139 - The AISense 5-in-1 4-channel DVR is an advanced solution for intelligent video surveillance, designed to offer maximum flexibility thanks to multi-technology support for IP, HDTVI, AHD, CVI and CVBS . Equipped with AI/Smart H.265+ compression , it allows for high storage optimization while maintaining image quality up to 5MP Lite. The system integrates advanced AI functions such as motion detection 2.0, perimeter protection and facial recognition , improving security and reducing false alarms. It supports 4 BNC channels + 2 IP channels for up to 6 channels in total , ideal for scalable systems. Management is completed by HDMI/VGA outputs and two-way audio , offering complete control. Furthermore, it features HDD support up to 10TB and remote access via HYU Connect and ONVIF , ensuring accessibility and reliability. Hyundai

Technical Data Sheet

referencia : HYU-1139

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HYU-1139 | AISENSE 5MP 4-CHANNEL 5-IN-1 DVR


Hyundai Security

The Hyundai HYU-1139 AISense 5MP 4-channel DVR represents an advanced solution for intelligent video surveillance, thanks to 5-in-1 support compatible with IP, HDTVI, AHD, CVI and CVBS which guarantees maximum versatility in systems. AI/Smart H.265+ compression allows you to optimize storage space while maintaining high video quality up to 5MP Lite. It integrates advanced AI functions such as motion detection 2.0, perimeter protection and facial recognition , improving accuracy and reducing false alarms. It supports 4 BNC + 2 IP inputs for up to 6 total channels , ideal for scalable systems. Management is completed by HDMI/VGA outputs and two-way audio , for complete control. Furthermore, it offers HDD support up to 10TB and remote access via HYU Connect and ONVIF , ensuring reliability and accessibility.

Main specifications:

- 5-in-1 DVR compatible with IP, HDTVI, AHD, CVI and CVBS

- AI/Smart H.265+ compression for greater storage efficiency

- Resolution up to 5MP Lite and support 4 BNC + 2 IP (6 channels)

- AI functions: motion detection 2.0, perimeter protection and facial recognition

- HDMI/VGA outputs and two-way audio with coaxial support

- Support HDD up to 10TB and HYU Connect and ONVIF remote access

Further details

✅ Number of channels:
 Number of channels up to 6 (4 BNC + 2 IP) which allows flexible management of video surveillance systems, allowing the integration of analog and IP cameras for complete and scalable coverage.
✅ Resolution:
Up to 5MP Lite resolution designed to ensure detailed and sharp images, maintaining a perfect balance between video quality and storage space optimization.
✅ 5in1 Technology :
5in1 technology compatible with IP, HDTVI, AHD, CVI and CVBS ideal for updating or expanding existing systems without replacing the infrastructure, offering maximum compatibility.
✅ Audio :
Two-way audio with RCA input and output and coaxial support , allowing real-time communication and integrated audio monitoring directly into the system.
✅ Smart functions:
Intelligent AI features such as perimeter protection and facial recognition , designed to improve security through advanced image analysis.
✅ Motion detection:
AI-based motion detection 2.0 can distinguish between people and vehicles, reducing false alarms and increasing the effectiveness of the video surveillance system.

Technical data sheet

HYU-1139
Specifications
Technical features
Hyundai AISense 5-in-1 4-channel DVR
Video inputs: 4 BNC HDTVI/AHD/CVI/CVI/CVBS + 2 IP (up to 6 channels)
Input resolution up to 5MP Lite
1 SATA bay up to 10TB
Simultaneous HDMI and VGA video outputs
Video
Analog Inputs: 4 BNC
IP Inputs: 2 (up to 6 channels, max 6MP)
Recording resolution:
  • CVI: up to 5MP@20ips, 4MP@25/30ips, 1080P@25/30ips, 720P@25/30ips
  • TVI: up to 3K@20/25ips, 5MP@20ips, 4MP@25/30ips, 1080P@25/30ips, 720P@25/30ips
  • AHD: up to 5MP@20ips, 4MP@25/30ips, 1080P@25/30ips, 720P@25/30ips
Video codes: H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
Output resolutions: HDMI/VGA up to 1080P@60Hz
Multi-screen display: up to 4 quadrants
4-channel synchronous playback
Smart Features
AI-based Motion Detection 2.0 (classifies people and vehicles)
Perimeter protection up to 2 channels
1-channel facial recognition
Smart search
Audio
1 RCA input (up to 4 optional) + 4 coaxial inputs
1 RCA output
Two-way audio (using the first input)
Archiving
1 SATA bay, up to 10TB (disk not included)
Communication interface
RS485 (half-duplex)
2 USB 2.0 (front and rear)
Net
1 self-adaptive 10/100 Mbps RJ45 interface
Bandwidth: 72 Mbps
Remote connections: up to 32
Protocols: TCP/IP, PPPoE, DHCP, HYU Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Diet
12 VDC, 1.5 A
Consumption ≤ 18 W
Environmental conditions
Operating temperature: -10°C ~ 55°C
Humidity: 10% ~ 90%.
Physical characteristics
Dimensions: 319 × 236 × 48 mm
Net weight: ≤ 1.16 kg
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
