XVR5104H-I3/T is a WizSense digital video recorder designed to offer intelligent video surveillance with advanced AI for people and vehicle detection , ensuring high accuracy and false alarm reduction. It supports penta-brid technology (HDCVI, AHD, TVI, CVBS and IP) with up to 4 analog channels and 6 IP channels up to 6MP , ensuring maximum compatibility and flexibility. It integrates advanced functions such as AcuPick, SMD Plus, perimeter protection and facial recognition , improving efficiency in event search and management. The two-way talk function on coaxial cable enables two-way audio communication, while Smart H.265+ compression and AI Coding optimizes bandwidth and storage. Equipped with HDMI/VGA outputs and HDD support up to 16TB , it represents a reliable solution for professional security systems. Dahua

Technical Data Sheet

referencia : XVR5104H-I3/T

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

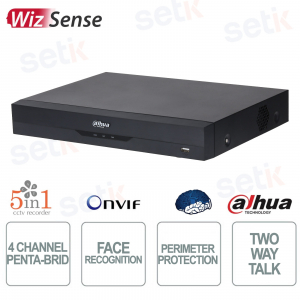

XVR5104H-I3/T | 4-CHANNEL PENTA-BRIDGE DVR - MAXIMUM RESOLUTION 5MP - ARTIFICIAL INTELLIGENCE


Dahua

The Dahua XVR5104H-I3/T is a WizSense video recorder designed to offer intelligent video surveillance with advanced AI for people and vehicle recognition , improving accuracy and security. It supports penta-brid technology (HDCVI, AHD, TVI, CVBS and IP) with up to 4 analog channels and 6 IP channels up to 6MP , ensuring maximum installation flexibility. It integrates advanced functions such as AcuPick, SMD Plus, perimeter protection and facial recognition , for efficient event management. The two-way talk function on coaxial cable enables two-way audio communication, while Smart H.265+ compression and AI Coding optimizes bandwidth and storage. Equipped with HDMI/VGA outputs and HDD support up to 16TB , it is ideal for professional security systems.

Main specifications:

- Penta-brid technology compatible with HDCVI, AHD, TVI, CVBS and IP

- Support up to 4 analog channels + 6 IP (up to 6MP)

- AI WizSense with AcuPick and SMD Plus for intelligent analysis

- Advanced perimeter protection and facial recognition

- Two-way talk on coaxial cable for two-way audio communication

- Smart H.265+ compression and AI Coding for storage optimization

- HDMI and VGA outputs for high definition viewing

- HDD support up to 16TB for extended video storage

- ONVIF compatibility and full network protocols

- Intelligent alarm system and advanced event management

Further details

Number of Channels:
Number of channels 4 analog + up to 6 IP which allows flexible management of hybrid systems , ideal for expansions and integration of different video surveillance technologies.
Maximum resolution :
Maximum resolution up to 5MP analog and 6MP IP to offer clear and detailed images , suitable for high-precision professional contexts.
Penta-brid technology:
Penta-brid technology compatible with HDCVI, AHD, TVI, CVBS and IP , ensuring maximum versatility and reuse of existing systems.
AcuPick:
Intelligent AcuPick enables fast and precise target search in videos , improving operational efficiency.
Perimeter Protection:
Advanced Perimeter Protection with tripwire and intrusion detection , capable of filtering false alarms and increasing event accuracy.
Face Detection:
Advanced Face Detection with analysis of up to 6 facial attributes , for detailed subject identification.
Face Recognition:
Professional Face Recognition with support for up to 10 databases and 10,000 faces , for automatic comparison and recognition.
Two-Way Talk:
Two Way Talk over coax for real-time two-way audio communication between DVRs, cameras and users.
Alarm :
Advanced Audio & Video management with Smart H.265+ compression, AI Coding and dual-stream , for bandwidth optimization and video quality.
Audio and Video:
Complete alarm system with motion detection, intelligent events and notifications , for continuous and responsive monitoring.
Network:
Professional network with support for advanced protocols (HTTP, HTTPS, TCP/IP, RTSP, ONVIF, P2P) for remote access and system integration.
Interfaces:
Intuitive web interfaces and GUIs compatible with browsers and mobile apps, for simple and immediate system management.
Doors:
Full HDMI, VGA, USB, RJ-45, RS-485 and RCA audio ports , with alarm inputs/outputs for complete connectivity and flexible installation

Technical data sheet

XVR5104H-I3/T
System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web, Local GUI
AcuPick
AcuPick Performance of AI by Recorder (1080P) (Number of Channels) 2 channels
Perimeter Protection
Perimeter Performance of AI by Recorder (Number of Channels) 4 channels, 10 IVS rules for each channel
Face Detection
Face Attributes 6 attributes
Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 8 face images/s each channel)
Face Recognition
Face Database Capacity Up to 10 face databases with 10,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels) 2 channels
SMD
SMD Plus by Recorder 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera 6 channels
AI Video Quality Analytics
AI Video Quality Analytics by Recorder 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white.
Scene Changing
Scene Changing by Recorder 1 channel
Irregular Black Block Masking
Irregular Black Block Masking by Recorder 1 channel
Audio and Video
Analog Camera Input 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input 1. CVI: 5MP@25fps; 5MP@20fps; 5MP@10/12.5fps; 4MP@25/30fps; 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps.
2. TVI: 5MP(2560×1944)@20fps; 5MP(2960 × 1665)@20/25fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.
3. AHD: 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.
IP Camera Input Up to 6 channels of IPC access
2 IP channels by default + 4 channels (analog channels are converted to IP channels)
Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps
*After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used.
Encoding Capacity Encode Enhancement disabled:
Main stream:
Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps);
Channels 1-2 4M-N/1080p@(1 fps–30 fps), others 4M-N/1080p@(1 fps–15 fps);
1080N/720p/960H/D1/CIF@(1fps–30fps);
Sub stream: D1/CIF@(1 fps–15 fps);
Encode Enhancement enabled:
Main stream:
4-ch 5M-N@(1 fps-25 fps);(4 channels can be transformed to 5MP@6 fps)
4-ch 4M-N/1080p@(1fps–25fps);
1080N/720p/960H/D1/CIF@(1fps–30fps);
Sub stream: D1/CIF@(1 fps–15 fps);
*When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used.
Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 HDMI, 1 VGA
HDMI: 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
Multi-screen Display When IP extension mode not enabled: 1/4
When IP extension mode enabled: 1/4/6
Third-party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression Standard
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access iOS; Android
Interoperability ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox
Recording Playback
Record Mode General, motion detection; intelligent; alarm
Recording Playback 1/4
Backup Method USB device and network
Playback Mode Instant playback; general playback; event playback; tag playback; smart playback
Alarm
General Alarm Motion detection; local alarm; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus
Alarm Linkage Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzers; log; presets; e-mail
Port
Audio Input 4-channel RCA
4-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Coaxial two-way talk: 4-channel BNC
Local and network user two-way talk: Shares the same audio input with the first channel
Disk Interface 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.
RS-485 1
USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply 12 VDC, 1.5 A
Power Consumption <5 w="" without="" hdd="" td="">
Net Weight 1.29 kg (2.84 lb)
Gross Weight 1.71kg (3.77 lb)
Product Dimensions 325.0 mm × 257.1 mm × 55.0 mm (12.80" × 10.12" × 2.17") (W × D × H)
Packaging Dimensions 374.0 mm × 119.0 mm × 311.0 mm (14.72" × 4.68" × 12.24") (W × D × H)
Operating Temperature –10 °C to +45 °C (+14 °F to +113 °F)
Storage Temperature -20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH), non-condensing
Installation Desktop
Certifications CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
