XVR5104HE-4KL-I3/T is an advanced digital video recorder designed for professional video surveillance systems, with support for 4K Ultra HD resolution and compatibility up to 8MP IP , ensuring extremely detailed images. Thanks to AI WizSense technology , it integrates advanced functions such as AcuPick , facial recognition and perimeter protection , improving event accuracy and reducing false alarms. Penta-brid technology allows simultaneous management of HDCVI, AHD, TVI, CVBS and IP signals, offering maximum installation flexibility. Equipped with Smart H.265+ compression and AI Coding , it optimizes bandwidth and storage while maintaining high video quality, while two-way talk allows two-way audio communication in real time. Ideal for advanced contexts, it ensures high performance and intelligent security management. Dahua
XVR5104HE-4KL-I3/T | 4-CHANNEL PENTA-BRIDGE XVR - 8MP MAX RESOLUTION - ARTIFICIAL INTELLIGENCE

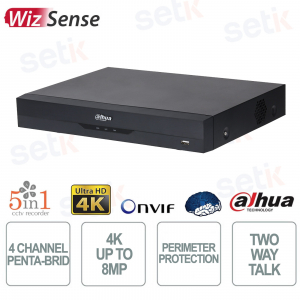

The Dahua XVR5104HE-4KL-I3/T WizSense is a professional 4-channel digital video recorder designed for advanced video surveillance systems, with support for 4K Ultra HD resolution and compatibility up to 8MP IP for extremely detailed images. Thanks to AI WizSense technology , it integrates advanced functions such as AcuPick , facial recognition and perimeter protection , ensuring high accuracy and reduction of false alarms. Penta-brid technology allows the simultaneous management of multiple video standards ( HDCVI, AHD, TVI, CVBS and IP ), offering maximum installation flexibility. Equipped with Smart H.265+ compression and AI Coding , it optimizes bandwidth and storage while maintaining high video quality, while two-way talk allows two-way audio communication in real time. Ideal for professional contexts, it ensures reliability, high performance and intelligent security management.
Main specifications:
- 4K Ultra HD resolution and support up to 8MP for sharp images
- WizSense AI technology with intelligent people and vehicle analysis
- Advanced AcuPick for fast and precise target search in videos
- Facial recognition with a database of up to 20,000 faces
- Intelligent perimeter protection with false alarm reduction
- Penta-brid 5in1 compatible with HDCVI, AHD, TVI, CVBS and IP
- Smart H.265+ compression and AI Coding for bandwidth and storage savings
- Two-way talk for real-time two-way audio communication
- Support up to 8 IP cameras with bandwidth up to 64 Mbps
Further details
Technical data sheet
| XVR5104HE-4KL-I3/T | |
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AcuPick | |
| AcuPick Performance of AI by Recorder (1080P) (Number of Channels) | 4 channels |
| Perimeter Protection | |
| Perimeter Performance of AI by Recorder (Number of Channels) | 4 channels, 10 IVS rules for each channel |
| Face Detection | |
| Face Attributes | 6 attributes |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) |
| Privacy Protection | |
| Privacy Protection Performance of AI by Recorder (Number of Channels) | 1 channel |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20,000 images. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
| SMD | |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | 8 channels |
| AI Video Quality Analytics | |
| AI Video Quality Analytics by Recorder | 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white. |
| Scene Changing | |
| Scene Changing by Recorder | 1 channel |
| Irregular Black Block Masking | |
| Irregular Black Block Masking by Recorder | 1 channel |
| EPTZ | |
| EPTZ by Recorder | 1 channel |
| Audio and Video | |
| Analog Camera Input | 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 4K@25/30fps; 4K@12.5/15fps; 6MP@20fps; 5MP@25fps; 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps. 2. TVI: 4K@15fps; 5MP(2560 x 1944)@20fps; 5MP(2960 x 1665)@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30 fps.. 3. AHD: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. |
| IP Camera Input | Up to 8 channels of IPC access 4 IP channels by default + 4 channels (analog channels are converted to IP channels) Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used. |
| Encoding Capacity | Encode Enhancement disabled: Main stream: the 1st channel 4K@(1 fps–10 fps), others 4K@(1 fps–7 fps); the 1st channel 5 MP@(1 fps–20 fps), others 5 MP@(1 fps–12 fps); the 1st channel 4 MP/3 MP@(1 fps–20 fps), others 4 MP/3 MP@(1 fps–15 fps); 4K@(1fps–8fps); 6MP@(1fps–10fps); 4K-N/5 MP@(1 fps-15 fps);1080p/720p/960H/D1/CIF@(1 fps–25/30 fps) Substream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30 fps) Encode Enhancement enabled: Main stream: the 1st channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps); the 1st channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps); the 1st channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps); the 1st channel 4 MP/3 MP@(1 fps–25/30 fps), others 4 MP/3 MP@(1 fps–15 fps); 4K/6MP@(1fps–10fps); 4K-N/5MP@(1fps-15fps); 1080p/720p/960H/D1/CIF@(1fps–25/30fps) Substream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30 fps) *When Encode Enhancement is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, AcuPick and Privacy Protection cannot be used. |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 HDMI, 1 VGA HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen Display | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/8/9 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 25.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General, motion detection; intelligent; alarm |
| Recording Playback | 1/4 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Alarm | |
| General Alarm | Motion detection; local alarm; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzers; log; presets; e-mail |
| Port | |
| Audio Input | 4-channel RCA 4-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Coaxial two-way talk: 4-channel BNC Local and network user two-way talk: Shares the same audio input with the first channel |
| Alarm Input | 8 channels |
| Alarm Output | 3 channels |
| Disk Interface | 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature. |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 2 A |
| Power Consumption | <7 w="" without="" hdd="" td=""> |
| Net Weight | 1.43 kg (3.15 lb) |
| Gross Weight | 1.89 kg (4.17 lb) |
| Product Dimensions | 325.0 mm × 257.1 mm × 55.0 mm (12.80" × 10.12" × 2.17") (W × D × H) |
| Packaging Dimensions | 374.0 mm × 119.0 mm × 311.0 mm (14.72" × 4.68" × 12.24") (W × D × H) |
| Operating Temperature | –10 °C to +45 °C (+14 °F to +113 °F) |
| Storage Temperature | -20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Installation | Desktop |
| Certifications | CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
