XVR5104HS-I3/T is a compact 4-channel digital video recorder designed for efficient video surveillance systems, with support for up to 5MP and 1080P for smooth and detailed images. Thanks to AI WizSense technology , it integrates advanced functions such as AcuPick , facial recognition and perimeter protection , improving event accuracy and reducing false alarms. Penta-brid technology allows compatibility with HDCVI, AHD, TVI, CVBS and IP , offering high installation flexibility. Equipped with Smart H.265+ compression and AI Coding , it optimizes bandwidth and storage space while maintaining high video quality, while two-way talk allows two-way audio communication. Ideal for compact professional installations, it guarantees reliability and intelligent security management. Dahua
XVR5104HS-I3/T | 4-CHANNEL PENTA-BRIDGE XVR - 5MP MAX RESOLUTION - ARTIFICIAL INTELLIGENCE

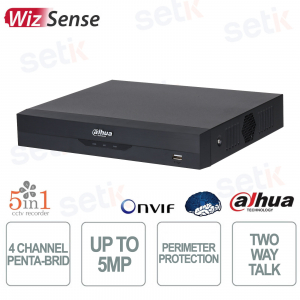

The Dahua XVR5104HS-I3/T WizSense is a compact 4-channel digital video recorder ideal for advanced video surveillance systems, with support for up to 5MP and 1080P for smooth and detailed images. Thanks to WizSense AI technology , it integrates intelligent functions such as AcuPick , facial recognition and perimeter protection , improving event accuracy and reducing false alarms. Penta-brid technology allows the management of HDCVI, AHD, TVI, CVBS and IP signals, offering maximum installation flexibility. Equipped with Smart H.265+ compression and AI Coding , it optimizes bandwidth and storage while maintaining high video quality, while two-way talk allows two-way audio communication. Reliable and high-performance solution for compact professional contexts.
Main specifications:
- Resolution up to 5MP and 1080P for clear and detailed images
- WizSense AI technology with intelligent people and vehicle analysis
- Advanced AcuPick for fast and precise target search in videos
- Facial recognition with a database of up to 10,000 faces
- Intelligent perimeter protection with false alarm reduction
- Penta-brid 5in1 compatible with HDCVI, AHD, TVI, CVBS and IP
- Smart H.265+ compression and AI Coding for bandwidth and storage savings
- Two-way talk for real-time two-way audio communication
- Support up to 6 IP cameras with bandwidth up to 32 Mbps
Further details
Technical data sheet
| XVR5104HS-I3/T | |
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AcuPick | |
| AcuPick Performance of AI by Recorder (1080P) (Number of Channels) | 2 channels |
| Perimeter Protection | |
| Perimeter Performance of AI by Recorder (Number of Channels) | 4 channels, 10 IVS rules for each channel |
| Face Detection | |
| Face Attributes | 6 attributes |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 8 face images/s each channel) |
| Privacy Protection | |
| Privacy Protection Performance of AI by Recorder (Number of Channels) | 1 channel |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 10,000 images. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
| SMD | |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | 6 channels |
| AI Video Quality Analytics | |
| AI Video Quality Analytics by Recorder | 4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white. |
| Scene Changing | |
| Scene Changing by Recorder | 1 channel |
| Audio and Video | |
| Analog Camera Input | 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
| Camera Input | 1. CVI: 5MP@25fps; 5MP@20fps; 5MP@10/12.5fps; 4MP@25/30fps; 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps. 2. TVI: 5MP(2560×1944)@20fps; 5MP(2960 × 1665)@20/25fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. 3. AHD: 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. |
| IP Camera Input | Up to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels) Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used. |
| Encoding Capacity | Encode Enhancement disabled: Main stream: Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps); Channels 1-2 4M-N/1080p@(1 fps–30 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1fps–30fps); Sub stream: D1/CIF@(1 fps–15 fps); Encode Enhancement enabled: Main stream: 4-ch 5M-N@(1 fps-25 fps);(4 channels can be transformed to 5MP@6 fps) 4-ch 4M-N/1080p@(1fps–25fps); 1080N/720p/960H/D1/CIF@(1fps–30fps); Sub stream: Sub stream: D1/CIF@(1 fps–15 fps); *When Encode Enhancement is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, AcuPick and Privacy Protection cannot be used. |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 1 HDMI, 1 VGA HDMI: 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
| Multi-screen Display | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General, motion detection; intelligent; alarm |
| Recording Playback | 1/4 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| Alarm | |
| General Alarm | Motion detection; local alarm; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; audio; buzzers; log; presets; e-mail |
| Port | |
| Audio Input | 1-channel RCA 4-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA |
| Two-way Talk | Coaxial two-way talk: 4-channel BNC Local and network user two-way talk: Shares the same audio input with the first channel |
| Disk Interface | 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature. |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | <5 w="" without="" hdd="" td=""> |
| Net Weight | 0.84 kg (1.85 lb) |
| Gross Weight | 1.41kg (3.11 lb) |
| Product Dimensions | 260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87") (W × D × H) |
| Packaging Dimensions | 344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × 11.30") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | -20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing |
| Installation | Desktop |
| Certifications | CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
