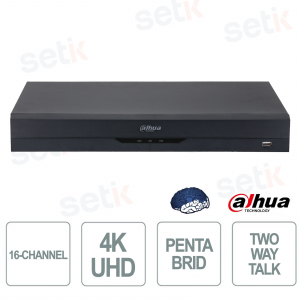

XVR 16 Channels Penta-brid 4K WizSense AI AcuPick Face Recognition H.265+ 2HDD Video Surveillance - Dahua

XVR 16 Channels Penta-brid 4K WizSense AI AcuPick Face Recognition H.265+ 2HDD Video Surveillance - Dahua
BEST SELLER -56% nuevo

XVR5216AN-4KL-I3/T - It is a penta-brid digital video recorder designed for advanced video surveillance systems, supporting up to 16 analog channels and up to 32 IP channels for flexible and scalable management. Thanks to WizSense technology with Artificial Intelligence , it offers advanced functions such as AcuPick, facial recognition and perimeter protection , improving accuracy and speed of event search. It supports resolutions up to 4K and 5MP , ensuring sharp and detailed images, while Smart H.265+ compression optimizes bandwidth and storage. It integrates SMD Plus to reduce false alarms and improve the accuracy of human and vehicle detection. Compatibility with multiple video standards and the intuitive interface make it ideal for professional and versatile installations . Dahua

Technical Data Sheet

referencia : XVR5216AN-4KL-I3/T

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


XVR5216AN-4KL-I3/T | 16-CHANNEL PENTA-BRIDGE VIDEO RECORDER - WIZSENSE 4K 5MP - TWO-WAY AUDIO


Dahua

The Dahua XVR5216AN-4KL-I3/T is a penta-brid digital video recorder designed for advanced video surveillance systems, supporting up to 16 analog channels and up to 32 IP channels , offering maximum integration flexibility. Based on WizSense technology with Artificial Intelligence , it integrates advanced functions such as AcuPick, facial recognition and perimeter protection , improving accuracy and speed in video searches. It supports resolutions up to 4K and 5MP , ensuring clear and detailed images, while Smart H.265+ compression optimizes bandwidth and storage space. SMD Plus technology reduces false alarms by distinguishing people and vehicles, increasing system reliability. Thanks to multi-standard compatibility and advanced functions, it represents a complete solution for professional systems.

Main specifications:

- 16 Penta-brid Channels: supports HDCVI, AHD, TVI, CVBS and IP signals for maximum compatibility

- Up to 32 IP Channels: System expansion for complex and scalable installations

- Resolution up to 4K/5MP: High definition images for detailed monitoring

- WizSense AI: Advanced intelligent features with human and vehicle recognition

- AcuPick: Fast and precise event search through intelligent video analysis

- Face Recognition: facial recognition with comparison on databases of up to 20,000 faces

- Perimeter Protection: intelligent intrusion detection with reduced false alarms

- SMD Plus: Advanced event filtering to distinguish people and vehicles

- Smart H.265+ compression: bandwidth and storage space optimization

- Support 2 HDDs: Reliable and scalable storage for large volumes of data

- Two-way Talk: two-way audio communication via coaxial cable

- Comprehensive ports: HDMI, VGA, USB, RS-485 and RJ-45 for professional integration

Further details

Number of Channels:
16-channel Penta-brid 4K/5MP video recorder compatible with HDCVI, AHD, TVI, CVBS and IP , expandable up to 32 8MP IP cameras with input bandwidth up to 128 Mbps , ideal for highly scalable professional video surveillance systems.
Maximum resolution :
It supports recording up to 4K Ultra HD , with HDMI 4K (3840×2160) and Full HD VGA output, ensuring detailed images and optimized streams thanks to AI Coding and Smart H.265+.
Perimeter Protection:
AI Perimeter Protection system up to 8 channels (General Mode) or 2 channels Advanced Mode with 10 IVS rules per channel , capable of drastically reducing false alarms by distinguishing people and vehicles.
Face Detection:
2-channel face detection with 6 facial attributes analysis and up to 12 fps per channel , ideal for intelligent monitoring and advanced video analytics.
Face Recognition:
2-channel facial recognition function with management of up to 10 databases and 20,000 faces , designed for access control and automatic identification applications.
AcuPick:
2-channel QuickPick 2.0 AI technology improves intelligent video search by identifying clothing, hats and vehicles , increasing accuracy and analysis speed.
Two-Way Talk:
It enables real-time audio communication between the camera, recorder, and user via coaxial cable, allowing immediate interaction, remote control, and event management with voice notifications and an integrated intercom, ideal for increasing the level of security and active supervision.
Alarm:
It supports AI intelligent alarms (Face Detection, Face Recognition, Perimeter Protection, SMD Plus), as well as motion and system anomaly alarms, with notifications via recording, snapshot, buzzer, email and IPC output.
Doors:
Equipped with 1 HDMI, 1 VGA, 1 Gigabit RJ-45 port, 2 USB (2.0 + 3.0), RS-485, 16 BNC video inputs, RCA audio input/output , ensuring maximum connectivity for professional installations.
Supported disks:
It integrates 2 SATA ports with support for up to 16TB per disk , offering high storage capacity for continuous high-resolution recording.

Technical data sheet

XVR5216AN-4KL-I3/T
System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web, Local GUI
Acu Pick
AcuPick AI by Recorder (Number of Channels) 8 channels
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels) 8 channels, 10 IVS rules for each channel
Face Detection
Face Attributes 6 attributes
Face Detection Performance of AI by Recorder (Number of Channels) 4 channels (up to 12 face images/s each channel)
Privacy Protection
Privacy Protection Performance of AI by Recorder (Number of Channels) 1 channel
Face Recognition
Face Database Capacity Up to 10 face databases with 20,000 images.
Face Recognition Performance of AI by Recorder (Number of Channels) 4 channels
SMD Plus
SMD Plus by Recorder 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera 32 channels
AI Video Quality Analytics
AI Video Quality Analytics by Recorder 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white.
Scene Changing
Scene Changing by Recorder 1 channel
Irregular Black Block Masking
Irregular Black Block Masking by Recorder 1 channel
EPTZ
EPTZ by Recorder 1 channel
Audio and Video
Analog Camera Input 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input 1. CVI: 4K@25/30fps; 4K@12.5/15fps; 6MP@20fps; 5MP@25fps; 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps.
2. TVI: 4K@15fps; 5MP(2560 x 1944)@20fps; 5MP(2960 x 1665)@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.
3. AHD: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.
IP Camera Input Up to 32 channels of IPC access
16 IP channels by default + 16 channels (analog channels are converted to IP channels)
Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection
Perimeter Protection, AcuPick and Privacy Protection cannot be used.
Encoding Capability Encode Enhancement disabled:
Main stream:
the 1st, 9th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps);
the 1st, 9th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps);
the 1st, 9th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps);
the 1st, 9th channel 4 MP/3 MP@(1 fps–25/30 fps), 4 MP/3 MP@(1 fps–15 fps);
4K@(1fps–8fps); 4K-N/5 MP@(1 fps-15 fps);4M-N/1080p/720p/960H/D1/CIF@(1 fps–25/30 fps)
Substream:
960H@(1fps–15fps); D1/CIF@(1 fps–25/30 fps)
Encode Enhancement enabled:
Main stream:
the 1st, 5th, 9th, 13th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps);
the 1st, 5th, 9th, 13th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps);
the 1st, 5th, 9th, 13th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps);
the 1st, 5th, 9th, 13th channel 4 MP/3 MP@(1 fps–25/30 fps), 4 MP/3 MP@(1 fps–15 fps);
4K/6MP@(1fps–10fps); 4K-N/5MP@(1fps-15fps); 1080p/720p/960H/D1/CIF@(1fps–25/30fps)
Substream
960H@(1fps–15fps); D1/CIF@(1 fps–25/30 fps)
*When Encode Enhancement is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, AcuPick and Privacy Protection cannot be used.
Dual-stream Yes
Video Bit Rate 32 kbps–6144 kbps
Audio Sampling 8 kHz, 16 bit
Audio Bit Rate 64 kbps
Video Output 1 VGA, 1 HDMI
VGA:1920×1080, 1280×1024, 1280×720
HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
Heterogeneous video source output for HDMI and VGA
Multi-screen Display When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25/36
Third-party Camera Access Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression Standard
Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression G.711a; G.711u; PCM
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access iOS; Android
Interoperability ONVIF 25.06 (Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox
Recording Playback
Record Mode General; alarm; motion detection; intelligent; POS
Recording Playback 1/4/9/16
Backup Method USB device and network
Playback Mode Instant playback; general playback; event playback; tag playback; smart playback
Storage
Disk Group Yes
Alarm
General Alarm Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Anomaly Alarm Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus
Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzers; log; presets; e-mail
Port
Audio Input 1-channel RCA
16-channel BNC (Coaxial Audio)
Audio Output 1-channel RCA
Two-way Talk Coaxial two-way talk: 16-channel BNC
Local and network user two-way talk: Shares the same audio input with the first channel
Disk Interface 2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.
RS-485 1
USB 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
General
Power Supply 12 VDC, 5 A
Power Consumption <15 w="" without="" hdd="" td="">
Net Weight 1.75 kg (3.86 lb)
Gross Weight 2.90 kg (6.39 lb)
Product Dimensions 375.0 mm × 289.6 mm × 53.0 mm (14.76" × 11.39" × 2.09") (W × D × H)
Packaging Dimensions 427.0 mm × 137.0 mm × 356.0 mm (16.81" × 5.39" × 14.02") (W × D × H)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–90% (RH), non-condensing
Installation Desktop
Certifications CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
