NVR4104-P-WT/4G | 4-CHANNEL 4G NVR INCLUDING 4 POE - MAXIMUM RESOLUTION 16MP - ARTIFICIAL INTELLIGENCE


Dahua

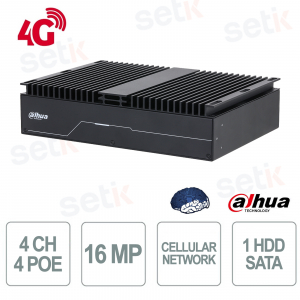

The Dahua NVR4104-P-WT/4G is an industrial network video recorder designed for professional video surveillance systems, with support for up to 4 IP channels and compatibility with cameras up to 16MP , ensuring clear and detailed images. Equipped with an integrated 4G module , it allows installations without a wired network and real-time remote access even in isolated environments. Based on the WizMind platform with Artificial Intelligence , it integrates advanced functions such as face recognition, perimeter protection and SMD Plus , improving accuracy and reducing false alarms. The industrial fanless design ensures reliability even in extreme conditions with operating temperatures from -40°C to +70°C . It supports Smart H.265+ compression and bandwidth up to 256 Mbps , offering high performance and operational continuity.

Main specifications:

- 4 IP Channels: efficient management of compact systems with professional performance

- Integrated 4G module: remote connection without wiring for flexible installations

- Resolution up to 16MP: High definition images for precise monitoring

- WizMind AI: Intelligent analytics with facial recognition and perimeter protection

- SMD Plus: advanced filtering to distinguish people and vehicles, reducing false alarms

- Smart H.265+ compression: bandwidth and storage space optimization

- Industrial fanless design: stable and reliable operation even in critical environments

- Temperature range -40°C / +70°C: ideal for outdoor and industrial applications

- Support 1 HDD: Storage up to 20TB for long-term data retention

- Comprehensive ports and connectivity: HDMI, VGA, USB, RJ-45, PoE and SIM slot for maximum integration

Further details

Number of Channels:
It supports up to 4 simultaneous IP cameras , ideal for compact systems ensuring centralized management and reliable performance in the professional field.
PoE channels:
It has 4 built-in ports, direct power supply via IEEE 802.3af/at PoE , which allows for simplified installation without external switches and reduced cabling costs.
Maximum resolution :
Resolution up to 16MP, compatibility with ultra-high definition cameras, offering extremely detailed images and professional video quality.
Integrated 4G module :
Connectivity via LTE/3G/2G mobile network , ideal for installations in areas without wired infrastructure, with real-time remote access.
Perimeter Protection: :
Intelligent technology that filters false alarms and enables accurate detection of people and vehicles , improving system reliability.

Face Recognition :
Advanced facial recognition system with a database of up to 20,000 faces , for advanced security and intelligent access control.

Face Recognition Comparison:
Automatic comparison function between detected faces and database, allowing quick identification and blacklist/whitelist management .
Advanced Storage:
Support for 1 SATA disk up to 20TB , ensuring large storage capacity and data continuity.
Advanced Network:
Comprehensive protocol support (HTTP, HTTPS, TCP/IP, ONVIF, IPv4/IPv6) and bandwidth up to 256 Mbps, for efficient data transmission and full integration.
Cellular network:
Compatibility with multi-band GSM/WCDMA/LTE standards , ensuring global coverage and stable communication even on the move.
Alarm :
Management of event alarms, anomalies and automatic notifications , with AI functions to improve safety and timeliness of interventions.
Doors:
Equipped with HDMI, VGA, USB, RJ-45, RS-485, alarm inputs/outputs, PoE and SIM slot , offering maximum flexibility for professional and industrial installations.

Technical data sheet

NVR4104-P-WT/4G
System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web, Local GUI
TO THE
AI by Recorder Face detection, face recognition, perimeter protection, and SMD
AI by Camera Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map
Perimeter Protection
Perimeter Performance of AI by Recorder (Number of Channels) 4 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels) All channels (8 targets/s)
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 12 face images/s each channel)
Face Detection Performance of AI by Camera (Number of Channels) All channels (12 targets/s)
Face Recognition
Face Database Capacity Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
Face Recognition Performance of AI by Recorder (Number of Channels) 4-channel FD (by camera) + FR (by recorder), image stream: 12 face images/s
2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Recognition Performance of AI by Camera (Number of Channels) All channels (12 targets/s)
SMD
SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD by Camera All channels (16 targets/s)
Audio and Video
Access Channel 4 channels
Network Bandwidth AI disabled: 265 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing
AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
Resolution 16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF
Decoding Capability AI disabled: 2-channel 16 MP@30 fps; 2-channel 12MP@30fps; 4-channel 8MP@30fps; 4-channel 6MP@30fps; 6-channel 5MP@30fps; 8-channel 4MP@30fps
AI enabled: 1-channel 16 MP@30 fps; 2-channel 12MP@30fps; 3-channel 8MP@30fps; 3-channel 6MP@30fps; 4-channel 5MP@30fps; 6-channel 4MP@30fps; 8-channel 2MP@30fps
Video Output 1 VGA, 1 HDMI
VGA:1920×1080, 1280×1024, 1280×720
HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen Display Main screen: 1/4
Subscreen: 1/4
Third-party Camera Access ONVIF, Panasonic, Sony, Hanwha, Axis, Pelco, Arecont, Canon
Compression Standard
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression G.711a; G.711u; PCM; G726
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); ISCSI
Mobile Phone Access iOS; Android
Interoperability ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE9 and later; Firefox
Network Mode Multi-address; load balance; fault tolerance
Cellular Network
Cellular Network Standard GSM/WCDMA/LTE
Frequency Range 4G:
FDD-LTE: B1/B3/B5/B7/B8/B20
TDD-LTE: B38/B40/B41
3G: WCDMA: B1/B5/B8
2G: GSM: 900/1800MHz
Transmitter Power (EIRP) 4G: Power class 3: 23dBm ±2dB
3G: Power class3: 24dBm +1/-3dB
2G:
Power class4: 33dBm ±2dB (GSM900)
Power class1: 30dBm ±2dB (GSM1800)
Recording Playback
Multi-channel Playback Up to 4 channels
Record Mode General; motion detection; intelligent; alarm; POS
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback
Alarm
General Alarm Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Anomaly Alarm Camera disconnection; storage errors; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage Record; snapshot; IPC external alarm output; audio; buzzers; log; presets; e-mail
Port
Audio Input 1-channel RCA
Audio Output 1-channel RCA
Alarm Input 4 channels
Alarm Output 2 channels (1-channel relay output, 1-channel 12V 1A output)
Disk Interface 1 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
RS-485 2
USB 2 (2 rear USB 2.0 ports)
HDMI 1
VGA 1
Network Port 2 (10/100/1000 Mbps Ethernet port, RJ-45)
PoE Port 4 ports, 10/100 Mbps, IEEE 802.3 af/at
Antenna 2
SIM Card Slot 1 (Micro-SIM)
Power Output 1 channel (12 VDC, 1 A)
General
Power Supply 53 VDC (supports 48-60 VDC), 1.81 A
Power Consumption Total output of NVR is <10w without="" hdd="" br=""> Total output power of PoE is 36 W, the maximum output power of a single port is 25.5 W
Net Weight 3.36 kg (7.41 lb)
Gross Weight 5.51 kg (12.15 lb)
Product Dimensions 300.0 mm × 224.9 mm × 75.5 mm (11.81" × 8.85" × 2.97") (W × L × H)
Packaging Dimensions 371.0 mm × 190.0 mm × 315.0 mm (14.61" × 7.48" × 12.40") (W × L × H)
Operating Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Storage Temperature -20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH), non-condensing
Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
