NVR1108HS-8P-S3/H is a compact 8-channel network NVR with 8 built-in PoE ports , designed for residential, retail and small commercial video surveillance systems. It supports IP cameras up to 8 MP and offers decoding capacity of up to 1 channel 8 MP@30 fps or 4 channels 1080p@30 fps , with input bandwidth up to 80 Mbps . Thanks to Smart H.265+ and Smart H.264+ technologies, it optimizes bandwidth and storage space usage while maintaining high video quality. It features simultaneous HDMI and VGA outputs up to 1080p , ONVIF Profile T/S/G support, P2P remote access from iOS and Android devices and new UI 4.0 interface. It also integrates 1 SATA 2.0 port for HDD up to 8 TB , playback up to 8 channels, advanced security functions and 8 10/100 Mbps PoE ports with total power up to 72 W. Dahua
NVR1108HS-8P-S3/H | NVR 8 CHANNEL POE IP ONVIF® DAHUA - H.265+ - UP TO 8 MEGAPIXEL

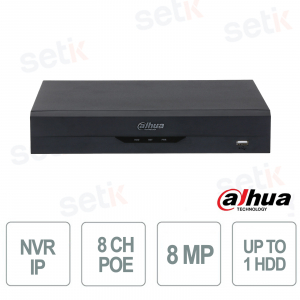

The Dahua DHI-NVR1108HS-8P-S3/H network video recorder is a compact 8-channel NVR with 8 built-in PoE ports , ideal for residential, retail and small commercial video surveillance systems. It supports IP cameras with resolutions up to 8 MP and offers decoding capacity of up to 1 channel 8 MP@30 fps , 2 channels 4 MP@30 fps or 4 channels 1080p@30 fps . Smart H.265+/Smart H.264+ compression optimizes bandwidth and storage space, while the UI 4.0 interface simplifies local and web management. It supports P2P remote access from iOS and Android devices , ONVIF Profile T/S/G compatibility and simultaneous HDMI/VGA video outputs up to 1080p . It also integrates 1 SATA HDD up to 8 TB , input bandwidth up to 80 Mbps and a total PoE power of up to 72 W.
Main specifications:
- 8 IP channels with resolution up to 8 MP
- 8 built-in 10/100 Mbps PoE ports
- Smart H.265+/Smart H.264+ to optimize bandwidth and storage
- Decode up to 4 channels 1080p@30 fps
- Simultaneous HDMI and VGA outputs up to 1080p
- ONVIF Profile T/S/G compatibility
- P2P remote management on iOS and Android
- 1 SATA HDD up to 8 TB
- Access and recording bandwidth up to 80 Mbps
- Total PoE power up to 72W
Further details
✅ Decoding:
Technical data sheet
| NVR1108HS-8P-S3/H | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Industrial-grade embedded processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Interface |
Web/operating in local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Access Channel |
8 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Bandwidth |
80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
8MP; 5MP; 4MP; 3MP; 1080p; 720p; D1; CIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Output |
1–ch@8MP (30 fps) or 1–ch@5MP (30 fps) or |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Non-motor Vehicle Attributes |
1 VGA/1 HDMI simultaneous video output, maximum resolution 1080p |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-screen Display |
1/4/8/9 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Third Party Camera Access |
Onvif |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Compression |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video |
Smart H.265+; H.265; Smart H.264+; H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio |
PCM; G711A; G711U; G726 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; P2P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Mobile Phone Access |
iDMSS (iOS); gDMSS (Android) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Interoperability |
ONVIF (profile T/profile S/profile G); CGI; SDK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Browser |
Chrome; IE; Safari; Edge; Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Recording Playback |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Multi-channel Playback |
Up to 8 channels playback |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Record Mode |
Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage |
Local HDD and network |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Backup |
USB device |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Playback Mode |
1. Play, pause, stop, fast forward, fast backward, rewind, play by frame |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General Alarm |
Motion detection, privacy masking, video loss, PIR alarm, IPC alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Anomaly Alarm |
Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Alarm Linkage |
Video recording, snapshot, log, preset, tour |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
External Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HDD |
1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
USB |
1 front USB 2.0 port, 1 rear USB 2.0 port |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
HDMI |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
VGA |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Network |
1 RJ–45 port (10/100 Mbps), 8 RJ–45 ports with PoE power supply (10/100 Mbps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RCA Input |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
RCA Output |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Supply |
DC 48V/53V, 2A/1.8A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Power Consumption |
Total output of NVR is ≤ 10W (without HDD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Net Weight |
0.84 kg (1.85 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
1.98 kg (4.37 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
260 mm × 232.4 mm × 47.6 mm (10.24" × 9.15" × 1.87") (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
373 mm × 117 mm × 307 mm (14.69" × 4.61" × 12.09") (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
-10°C to 45°C (+34°F to +113°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Temperature |
0°C to 40°C (+32°F to +104°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–93% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Storage Humidity |
30%–85% |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Altitude |
3,000 m (9,842.52 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Desktop mounting |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE/FCC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
