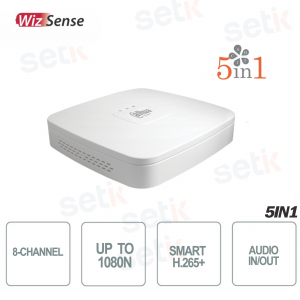

XVR4108C-I | 8 CHANNEL 5IN1 12MP DVR WITH 1 16TB SSD INCLUDED

Dahua XVR4108C-I is an 8-channel hybrid digital video recorder, part of the WizSense series, designed to offer high performance and advanced AI capabilities. It supports up to 10 IP channels with resolutions up to 6MP and integrates AI Coding and Smart H.265+ video compression technologies to optimize storage space without compromising image quality. HDMI and VGA video outputs support resolutions up to 1080p, ensuring clear and detailed viewing. Equipped with SMD Plus functionality, the device can distinguish between people and vehicles, reducing false alarms caused by insignificant movements. Compatibility with various video input technologies (HDCVI, AHD, TVI, CVBS and IP) makes it a versatile solution for both new and existing video surveillance systems.
Main specifications:
- Supports up to 8 BNC channels and 2 IP channels
- Camera resolution up to 6MP
- Smart codec H.265+/H.264+ for storage optimization
- 1 SATA port, 16TB SSD already installed included
- Remote access via P2P cloud
- ONVIF compatible, 12VDC power supply
Further details
✅ HDMI and VGA Video Outputs:
✅ AI Coding and Smart H.265+ Video Compression:
✅ Storage Capacity up to 16TB:

Technical data sheet
Model: NVR | XVR4108C-I | ||
SYSTEM | |||
Main Processor | Industrial grade processor | ||
Operating System | Embedded Linux | ||
Operation Interface | Web, Local GUI | ||
SMD plus | |||
SMD Plus by Recorder | 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change | ||
Audio & Video | |||
Analog Camera Input | 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect | ||
Camera Input | 1. CVI: 1080p@25/30fps; 720p@25/30fps. 2. TVI: 1080p@25/30fps; 720p@25/30fps. 3. AHD: 1080p@25/30fps; 720p@25/30fps. |
||
IP Camera Input | Up to 10 channels of IPC access 2 IP channels by default + 8 channels (analog channels are converted to IP channels) Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps *After IP extension is enabled, the AI Function (SMD) will be disabled. |
||
Encoding Capability | Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps) Sub stream: CIF@(1 fps–7 fps) |
||
Dual stream | Yes | ||
Video Bitrate | 32kbps–4096kbps | ||
Audio Sampling | 8kHz, 16bit | ||
Audio Bitrate | 64kbps | ||
Video Output | 1 HDMI, 1 VGA HDMI: 1920×1080, 1280×1024, 1280×720 VGA: 1920×1080, 1280×1024, 1280×720 |
||
Multi-screen display | When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 |
||
Third Party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF | ||
Standard Compression | |||
Video | Smart H.265/H.265/Smart H.264/H.264 | ||
Audio | G.711a; G.711u; PCM | ||
Network | |||
Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server: P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) | ||
Mobile Phone Access | Android /iOS | ||
Interoperability | ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK | ||
Browser | Chrome; IE; Safari; Edge; Firefox | ||
Record Playback | |||
Record Mode | General, motion detection; intelligent; alarm | ||
Recording Playback | 1/4/9 | ||
Backup Method | USB device and network | ||
Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback | ||
Alarm | |||
General Alarm | Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm | ||
Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline | ||
Smart Alarm | SMD Plus | ||
Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzers; log; presets; e-mail | ||
Port | |||
Audio Input | 1-channel RCA | ||
Audio Output | 8-channel BNC (Coaxial Audio) | ||
Two-way Talk | Yes (share the same audio input with the first channel) | ||
Disk Interface | 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature. | ||
USB | 2 (2 rear USB 2.0 ports) | ||
HDMI | 1 | ||
VGA | 1 | ||
Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) | ||
General | |||
Power Supply | 12VDC, 1.5A | ||
Power Consumption | <7w without="" hdd="" td=""> | ||
Net Weight | 0.50 kg (1.10 lb) | ||
Gross weight | 1.07 kg (2.36 lb) | ||

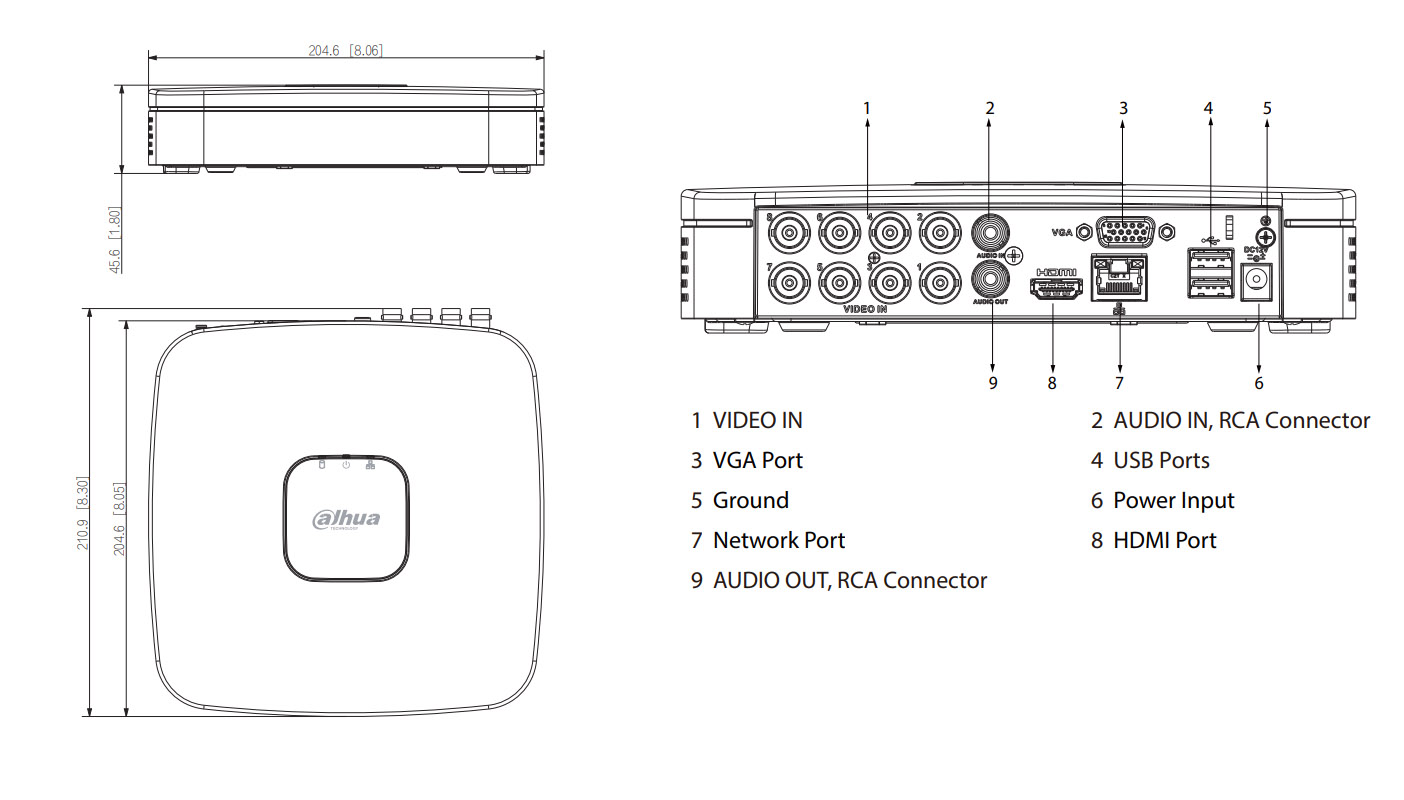

Product Dimensions | 204.6 mm × 210.9 mm × 45.6 mm (8.06" × 8.30" × 1.80") (W × D × H) | ||
Package Dimensions | 330.0 mm × 101.0 mm × 256.0 mm (12.99" × 3.98" × 10.08") (W × D × H) | ||
Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) | ||
Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) | ||
Operating Humidity | 10%–93% (RH), non-condensing | ||
Installation | Desktop | ||
Certifications | CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 FCC: 47 CFR Part 15, Subpart B |
