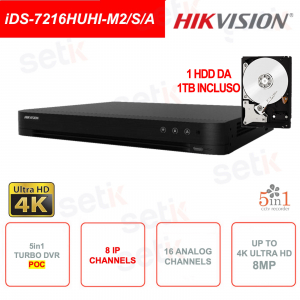

iDS-7200HUHI-M2/S DVR AcuSense 8MP H.265 Pro+ – 1 1TB HDD included - Hikvision

iDS-7200HUHI-M2/S DVR AcuSense 8MP H.265 Pro+ – 1 1TB HDD included - Hikvision

 
HDD space calculation
-35%

iDS-7200HUHI-M2/S Turbo AcuSense DVR is a professional video surveillance video recorder with AcuSense technology based on Deep Learning , Motion Detection 2.0 and intelligent classification of people and vehicles , designed to reduce false alarms. It supports HDTVI, AHD, HDCVI, CVBS and IP signals, recording up to 8 MP and H.265 Pro+ compression to optimize space and bandwidth. It integrates perimeter protection , intelligent event search and audio via coaxial cable. It has 2 SATA interfaces , with capacity up to 10 TB for a single HDD , Ethernet connectivity, Hik-Connect, DDNS and Wi-Fi support via USB dongle. 1 1TB HDD included . Hikvision

Technical Data Sheet

referencia : iDS-7216HUHI-M2/S/A

brand : Hikvision

EAN: 6931847155759

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

iDS-7216HUHI-M2/S/A | TURBO HD DVR - IP ONVIF® - HIKVISION - 8 IP CHANNELS - 16 ANALOG CHANNELS - 8MP 4K - H.265+ - AUDIO - VIDEO ANALYSIS

Hikvision

The Hikvision iDS-7200HUHI-M2/S Turbo AcuSense DVR is a professional video recorder with Motion Detection 2.0 based on Deep Learning , capable of distinguishing people and vehicles and reducing false alarms. It supports HDTVI, AHD, HDCVI, CVBS and IP inputs, recording up to 8 MP and H.265 Pro+ compression to optimize bandwidth and storage space. It integrates perimeter protection , intelligent event search and audio over coaxial cable. It has 2 SATA interfaces with capacities up to 10 TB for a single HDD , remote management via Hik-Connect and DDNS and Wi-Fi support via USB dongle. 1 1TB HDD included .

Main features:

  • AcuSense: People/Vehicle Analysis
  • Resolution: up to 8 MP
  • Compression: H.265 Pro+
  • Smart: Motion Detection 2.0
  • Storage: 2 SATA, up to 10 TB/HDD
  • Network: Hik-Connect, DDNS, Wi-Fi USB
  • HDD Included: 1 x 1TB HDD

Further details

✅ Number of Channels:
 The Hikvision iDS-7200HUHI-M2/S series is available with 4, 8 or 16 analog BNC channels and can manage, in advanced IP mode, up to 8, 16 or 32 IP cameras respectively, for hybrid and scalable video surveillance configurations.
✅ Resolution :
 It supports recording up to 8MP , with encoding up to 8MP@8fps, 5MP@12fps, 3K@12fps and 4MP@15fps , ensuring high-definition images for monitoring and recording.
✅ Motion Detection 2.0 :
It integrates AcuSense technology with Deep Learning on all analog channels, capable of classifying people and vehicles and significantly reducing false alarms generated by elements such as leaves, lights and other irrelevant movements.
✅ Storage :
It has 2 SATA interfaces and supports a maximum capacity of 10TB for each HDD , with H.265 Pro+ compression designed to improve encoding efficiency and reduce the space required for recordings.
✅ Network :
It offers RJ45 Ethernet connection, remote management via Hik-Connect and DDNS , ONVIF compatibility and the possibility of connecting to the Wi-Fi network via a compatible USB dongle .
✅ HDD included :
The DVR comes with a 1TB HDD included , giving you plenty of storage space for recording surveillance footage.

Technical data sheet

iDS-7216HUHI-M2/S/A
Perimeter Protection
Human/Vehicle Analysis Up to 4-ch
Facial Detection
Facial Detection and Capture Face picture detection, face picture search；
Motion Detection 2.0
Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Video and Audio
IP Video Input 8-ch (up to 24-ch)
Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
CVBS Input PAL/NTSC
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback 16-ch
HDTVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 × 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25fps
HDCVI Input 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25fps, 720p@30fps, 720p@25fps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Input 1-ch(up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 16-ch via coaxial cable
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Substream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate 32 Kbps to 10 Mbps
Dual-stream Support
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Decoding
Decoding Capability up to 24-ch 1080P@30fps
Network
Total Bandwidth 128 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection 128
Network Interface 1, RJ45 10/100/1000Mbps self-adaptive Ethernet interface
Wi-Fi Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
Auxiliary Interface
SATA 2 SATA interface
Capacity up to 10 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
Alarm In/Out N/A (optional to support)
USB Interface Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 3.0
General
Power Supply 12 VDC, 5 A
Consumption ≤ 19 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10 to 90%
Dimensions (W × D × H) 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight ≤ 2.1 kg (4.6 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
