The iDS-7316HUHI-M4/S Turbo HD DVR is a professional video recorder designed for advanced video surveillance systems, with 16 analog BNC inputs and support for up to 34 IP cameras with resolutions up to 12 MP . It integrates H.265 Pro+ compression, recording up to 8 MP and a total bandwidth of 320 Mbps , optimizing video quality and storage space. It supports HDTVI, AHD, HDCVI, CVBS and IP technologies, as well as synchronous playback of up to 16 channels . It has 4 SATA interfaces , RAID 0/1/5/6/10 support, HDMI output up to 4K and dual Gigabit Ethernet ports for reliable network management. Compatible with Hik-Connect, ONVIF, DDNS and SNMP , it also offers alarm inputs/outputs and advanced POS functions. 1 x 2TB HDD included . Hikvision

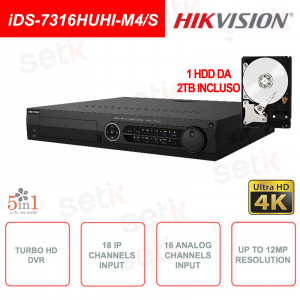

iDS-7316HUHI-M4/S – TURBO HD DVR - 5in1 - IP ONVIF - HIKVISION - 18 IP CHANNELS - 16 ANALOG CHANNELS - 12MP - H.265+ AUDIO and ALARM

The Hikvision iDS-7316HUHI-M4/S Turbo HD DVR is a professional video recorder for video surveillance systems, equipped with 16 analog inputs and support for up to 34 IP cameras with resolutions up to 12 MP . It offers recording up to 8 MP , advanced H.265 Pro+ compression and a total bandwidth of 320 Mbps for efficient management of video streams. It supports HDTVI, AHD, HDCVI, CVBS and IP signals, has 4 SATA interfaces , HDMI output up to 4K and RAID 0/1/5/6/10 configurations for greater data security. Connectivity includes dual Gigabit Ethernet ports , Hik-Connect, DDNS and ONVIF, as well as alarm inputs and outputs. 1 x 2TB HDD included .
Main features:
- Channels: 16 analog, up to 34 IP
- Resolution: Recording up to 8 MP
- Compression: H.265 Pro+
- Bandwidth: 320 Mbps
- Storage: 4 SATA + RAID
- Video output: HDMI up to 4K
- Network: Dual Gigabit Ethernet
- HDD included: 1 x 2TB HDD
Further details
It supports 16 analog BNC channels and allows expansion up to 34 IP channels , providing high flexibility for professional hybrid video surveillance systems.
It allows recording up to 8 MP , with 8 MP@8 fps, 5 MP@12 fps and 4 MP@15 fps encoding; IP cameras can reach a resolution of up to 12 MP .
Technical data sheet
| iDS-7316HUHI-M4/S | |
| Perimeter Protection | |
| Human/Vehicle Analysis | Up to 8-ch, for channel 1/2/3/4/9/10/11/12 only |
| Motion Detection 2.0 | |
| Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
| Video and Audio | |
| IP Video Input | 18-ch (up to 34-ch) Up to 12 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
| Analog Video Input | 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
| HDTVI Input | 3K, 4MP, 1080p25, 1080p30, 720p25, 720p30 |
| AHD Input | 4MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI Input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS Input | PAL/NTSC |
| CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| HDMI 1 Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| HDMI 2 Output | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA Output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Video Output Mode | HDMI1/VGA simultaneous output, HDMI2 independent output |
| Audio Output | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Audio Input | 2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent) |
| Synchronous playback | 16-ch |
| Recording | |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Encoding Resolution | 8MP/3K/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Substream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
| Video Bitrate | 32 Kbps to 10 Mbps |
| Dual-stream | Support |
| Stream Type | Video, Video & Audio |
| Audio Compression | G.711u |
| Audio Bitrate | 64 Kbps |
| Network | |
| Total Bandwidth | 320 Mbps |
| Remote Connection | 128 |
| Network Protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP |
| Network Interface | 2, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| Auxiliary Interface | |
| SATA | 4 SATA interface |
| eSATA | Support |
| Capacity | up to 12 TB capacity for each disk |
| Serial Interface | RS-232, RS-485 (full-duplex), keyboard |
| Alarm In/Out | 16/4 |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Consumption | ≤ 35 W (without HDD) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 10 to 90% |
| Dimensions (W × D × H) | 440 × 399 × 72 mm (17.3 × 15.7 × 2.8 inch) |
| Weight | ≤ 5 kg (without HDD, 11.0 lb.) |
