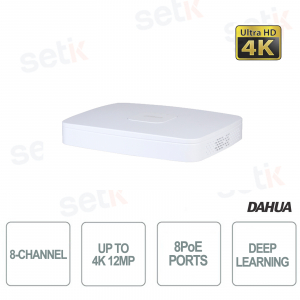

Dahua 8-Channel NVR with AI, PoE, and 4K: Intelligent Video Surveillance

Dahua 8-Channel NVR with AI, PoE, and 4K: Intelligent Video Surveillance
-57%

NVR4108-8P-4KS3 - is an 8-channel network recorder with built-in PoE and support for cameras up to 12MP, ideal for advanced video surveillance. Thanks to integrated AI technology, it supports facial detection, perimeter protection, people counting, and heat maps. It manages SMD Plus for precise recognition of people and vehicles, reducing false alarms. It decode video up to 4K and offers intuitive remote control for reliable security solutions in corporate or public settings. Dahua

Technical Data Sheet

referencia : NVR4108-8P-4KS3

brand : Dahua

EAN: 6923172573810

Disponibilità: 14

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

NVR4108-8P-4KS3 | 8-CHANNEL IP NVR UP TO 12MP 4K ULTRA-HD WITH 8 POE PORTS

Dahua

The Dahua NVR4108-8P-4KS3 is an 8-channel network video recorder with built-in PoE, ideal for high-definition video surveillance up to 12MP. It supports advanced AI with facial detection, people counting, perimeter protection, and heat map. It ensures excellent performance with up to 4K decoding, reducing false alarms thanks to SMD Plus. Perfect for corporate, public, and residential installations.

Main specifications:

- 8 IP channels up to 12MP with built-in AI

- Smart functions: SMD Plus, face detection, people counting

- 4K HDMI/VGA video output and Smart H.265+ decoding

- 8 PoE ports with power output up to 25.5W per port

- Web interface, iOS/Android mobile app and cloud access

Further details

Number of Channels:
The Dahua NVR4108-8P-4KS3 video recorder manages up to 8 high-definition IP channels, supporting resolutions up to 12MP, with the possibility of multi-screen viewing up to 9 simultaneous views.
PoE :
It features 8 PoE ports with up to 25.5W of power per port (IEEE 802.3 af/at standard), simplifying installation without requiring additional power for the cameras. The total power that can be supplied via PoE is 72W.
AI (Artificial Intelligence) :
It integrates advanced AI features through both NVRs and cameras. It supports SMD Plus detection on 4 channels from the recorder and up to 6 channels from the cameras, as well as facial recognition, people counting, behavioral analysis, and heat maps.
Perimeter Protection:
Enables intelligent perimeter protection with precise intrusion detection, automatically filtering false alarms caused by rain, vegetation or small animals on 6 channels via AI cameras.
Face Detection:
It supports advanced 6-channel facial recognition, identifying attributes such as gender, age, glasses, expressions, mask, and beard, improving accuracy in security contexts.
Face Recognition :
The facial recognition function allows the identification and comparison of faces with registered databases of up to 6 channels, useful for access control or advanced security.
Network :
Compatible with advanced protocols such as IPv4/IPv6, HTTPS, FTP, SNMP, P2P and ONVIF (Profile S, G, T) compliant. Remote management via browser (Chrome, Safari, Edge) or mobile app for Android/iOS.
Alarms:
It supports general alarms (motion detection, video masking, signal loss), anomaly alarms (IP disconnection, disk error, IP/MAC conflicts) and AI-powered intelligent alarms (perimeter, face, people counting) with recording, snapshot, audio output, log and email options.
Recording & Playback:
It offers single HDD recording up to 20TB, flexible recording modes (general, motion detection, intelligent), simultaneous playback of up to 8 channels, and backup via USB or network. It supports intelligent playback with event or tag search.
NVR4108-8P-4KS3 Dimension Drawing

Technical data sheet

Model: DVR NVR4108-8P-4KS3
SYSTEM
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operation Interface Web, local GUI
TO THE
AI by Recorder SMD Plus
AI by Camera Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Perimeter Protection
Perimeter Performance of AI by Camera (Number of Channels) 6 channels
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Camera (Number of Channels) 6 channels
Face Recognition
Face Recognition Performance of AI by Camera (Number of Channels) 6 channels
SMD Plus
SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera 6 channels
Audio and Video
Access Channel 8 channels
Network Bandwidth AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Resolution 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF; QCIF
Decoding Capability AI disabled: 1-channel 12 MP@30 fps; 2-channel 8MP@30fps; 3-channel 5MP@30fps; 4-channel 4MP@30fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps; 7-channel 1080p@30fps
Video Output 1 HDMI, 1 VGA Simultaneous: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous: HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display Main Screen: 1/4/8/9 Sub Screen: 1/4/8/9
Third Party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Compression Standard
Video Smart H.265+/H.265/Smart H.264+/H.264
Audio

G.711A/G.711U/PCM/G726

Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP cameras, DVR, NVS, etc.)
Mobile Phone Access iOS; Android
Interoperability ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox
Recording Playback
Multi-channel Playback Up to 8 channels playback
Record Mode General, motion detection; intelligent; alarm
Storage Local HDD
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback
ALARM
General Alarm Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Anomaly Alarm Camera disconnection; storage errors; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage Record; snapshot; IPC external alarm output; audio; buzzers; log; presets; e-mail
Port
Audio Input 1-channel RCA
Audio Output 1-channel RCA
Alarm Input NA (2 channels are optional)
Alarm Output NA (1-channel 12V 1A output is optional)
Disk Interface 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
USB 2 (2 rear USB 2.0 ports)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
PoE Port 8 ports, 10/100 Mbps, IEEE 802.3 af/at
General
Power Supply 53 VDC, 1.81 A
Power Consumption Total output of NVR is <10 w="" without="" hdd="" total="" output="" power="" of="" poe="" is="" 72="" the="" maximum="" a="" single="" port="" 25="" 5="" td="">
Net Weight 0.69 kg (1.52 lb)
Gross weight 1.74 kg (3.84 lb)
Dimensions 270.0 mm × 206.3 mm × 45.9 mm (10.63" × 8.12" × 1.81") (W × D × H)
Packaging Dimensions 427 mm × 96 mm × 262 mm (16.81" × 3.78" × 10.31") (W × D × H)
Operating Temperature -10°C to +50°C (+14°F to +122°F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH), non-condensing
Installation Rack or desktop
Certification CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
