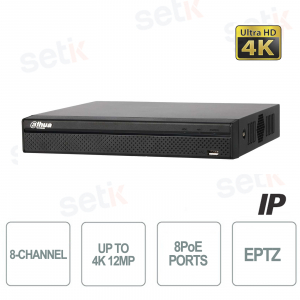

Dahua 8 Channel PoE NVR with AI, 4K and Facial Recognition

Dahua 8 Channel PoE NVR with AI, 4K and Facial Recognition
-57%

NVR4108HS-8P-4KS3 is a compact network video recorder with 8 IP channels and 8 built-in PoE ports , ideal for advanced video surveillance systems. It supports up to 12MP cameras and offers AI features such as SMD Plus, facial detection and recognition, perimeter protection and advanced analytics. With up to 8-channel decoding at 1080p@30fps and a maximum bandwidth of 160Mbps, it ensures high performance. It is compatible with major network protocols and offers HDMI and VGA video outputs, as well as supporting up to 20TB SATA HDD. Dahua

Technical Data Sheet

referencia : NVR4108HS-8P-4KS3

brand : Dahua

EAN: 6923172573827

Disponibilità: 20

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

NVR4108HS-8P-4KS3 | 8-CHANNEL IP NVR UP TO 12MP 4K ULTRA-HD WITH 8 POE PORTS


Dahua

Dahua NVR4108HS-8P-4KS3 is a compact 8-channel network video recorder, designed for high-performance IP video surveillance systems. It supports up to 12MP cameras and offers advanced AI capabilities for intelligent and efficient surveillance.

Main specifications:

- Supports up to 8 IP channels with max 12MP resolution

- Simultaneous HDMI/VGA video outputs with up to 4K resolution

- Smart codec H.265+/H.264+ for storage optimization

- 1 SATA port, 20TB SSD already installed included

- IVS functions: intrusion detection, line crossing, etc.

- Remote access via DMSS app and P2P cloud

- ONVIF compatible, 53VDC power supply

Further details

8 IP Channels with 8 PoE Ports:
Allows direct connection and powering of up to 8 IP cameras, simplifying installation and reducing costs.
Support for Cameras up to 12MP:
Compatible with high resolution cameras, ensuring detailed and clear images.
Advanced AI Features :
Includes SMD Plus on 4 channels via the recorder and on 6 channels via the cameras, plus facial detection and recognition, perimeter protection, people counting, stereo analysis and heat map.

HDMI 4K and VGA Video Outputs:
It offers flexibility in display and system configuration, supporting resolutions up to 3840 × 2160 via HDMI.

Perimeter Protection:
Automatically filters out false alarms caused by animals, leaves or changes in light, improving the accuracy of notifications.
Facial Detection and Recognition:
It uses deep learning algorithms to identify and recognize human faces, improving the safety and efficiency of the system.

NVR4108HS-8P-4KS3 Dimension Drawing

Technical data sheet

Model: DVR NVR4108HS-8P-4KS3
SYSTEM
Main Processor Industrial grade processor
Operating System Embedded LINUX
Operating Interface Web, Local GUI
TO THE
AI by Recorder SMD Plus
AI by Camera Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Perimeter Protection
Perimeter Performance of AI by Camera (Number of Channels) 6 channels
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Camera (Number of Channels) 6 channels
Face Recognition
Face Recognition Performance of AI by Camera (Number of Channels) 6 channels
SMD Plus
SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera 6 channels
Audio and Video
IP Camera Input 8 channels
Network Bandwidth AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Resolution 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF; QCIF
Decoding Capability

AI disabled: 1-channel 12 MP@30 fps; 2-channel 8MP@30fps; 3-channel 5MP@30fps; 4-channel 4MP@30fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps; 7-channel 1080p@30fps

Video Output

1 HDMI, 1 VGA Simultaneous: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous: HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen display Main Screen: 1/4/8/9 Sub Screen: 1/4/8/9
Third Party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Standard Compression
Video Compression Smart H.265+/H.265/Smart H.264+/H.264
Audio Compression

G.711a; G.711u; PCM; G726

Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access iOS; Android
Interoperability ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE; Safari; Edge; Firefox
Recording Playback
Multichannel Playback Up to 8 channels
Record Mode General, motion detection; intelligent; alarm
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag playback, smart playback
Alarm
General Alarm Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Anomaly Alarm Camera disconnection; storage errors; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
Smart Alarm Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage Record; snapshot; IPC external alarm output; audio; buzzers; log; presets; e-mail
Port
Audio Input 1-channel RCA
Audio Output 1-channel RCA
Alarm Input NA (2 channels is optional)
AlarmOutput

NA (1-channel 12V 1A output is optional)

Disk Interface 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature
USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
PoE Port 8 ports, 10/100 Mbps, IEEE 802.3 af/at
General
Power Supply 53VDC, 1.81A
Power Consumption Total output of NVR is <10 w="" without="" hdd="" total="" output="" power="" of="" poe="" is="" 72="" the="" maximum="" single="" port="" 25="" 5="" td="">
Net Weight 0.92 kg (2.03 lb)
Gross Weight 2.05 kg (4.52 lb)
Product Dimensions

260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H)

Packaging Dimensions 374 mm × 119 mm × 311 mm (14.72" × 4.69" × 12.24") (W × D × H)
Operating Temperature -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Dimensions –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Installation

Rack or desktop

Certifications

CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
