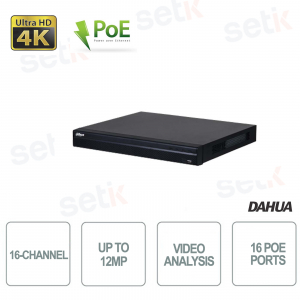

NVR4216-16P-4KS3 is a 16-channel network video recorder with built-in PoE power and IP support for up to 12MP. Thanks to advanced AI, it offers facial detection, perimeter protection, people counting, and heat mapping directly from IP cameras. It supports H.265 decoding, playback of up to 16 channels, and storage on two 20TB HDDs. Ideal for professional security systems in corporate, public, and residential settings. Dahua
BUSQUE INSTALADOR
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
NVR4216-16P-4KS3 | 16-CHANNEL POE 4K 12MP H.265+ IP NVR with 2 HDDs, AI Support
The Dahua NVR4216-16P-4KS3 is a 16-channel network video recorder with built-in PoE, ideal for advanced security systems up to 12MP. It offers AI features such as SMD Plus, facial detection, perimeter protection, and people counting directly from IP cameras. With 4K decoding support, intelligent recording, and storage of up to 40TB, it is perfect for residential, business, or public installations.
Main specifications:
- 16 IP channels up to 12MP with PoE power supply
- Advanced AI: SMD Plus, Face Detection, Perimeter Protection
- 4K UHD decoding, simultaneous HDMI and VGA output
- Intelligent recording with playback of up to 16 channels
- Supports 2 HDDs up to 20TB each
- ONVIF compatible, manageable from PC, mobile app and browser
Further details
✅ Number of Channels:
Dahua video recorder supports up to 16 IP channels with simultaneous access, ideal for managing multi-camera video surveillance systems in residential, corporate or public spaces.
✅ PoE (Power over Ethernet) :
It features 16 built-in IEEE 802.3 af/at PoE ports, providing direct power to IP cameras, reducing cabling costs and simplifying installation.
✅ Network Video Recorder (NVR) :
It is a compact 1U NVR with HDMI and VGA video output up to 4K resolution, supports IP cameras up to 12MP and allows remote management via browser, PC software or mobile app for total control of the system.
✅ AI (Artificial Intelligence):
✅ AI (Artificial Intelligence):
It integrates advanced AI with vehicle and person recognition via SMD Plus, as well as advanced functions such as Face Detection, Face Recognition, Perimeter Protection, people counting, heat map and behavioral analysis.
✅ Perimeter Protection:
It supports up to 6 channels of perimeter protection with intelligent analysis via AI cameras, filtering out irrelevant movements such as animals or plants and reducing false alarms.
✅ Face Detection:
Analyzes up to 6 channels with facial detection, identifying attributes such as age, gender, expressions, masks or beards for greater security in access controls.
✅ Face Recognition:
It manages facial recognition on 6 channels, comparing the acquired faces with registered databases for advanced identity monitoring and management.
✅ SMD Plus (Smart Motion Detection Plus):
It offers intelligent detection on 4 channels via NVR and up to 6 channels from cameras, accurately distinguishing between humans, vehicles and other objects for more accurate notifications.
✅ Alarm:
It manages up to 4 inputs and 2 physical alarm outputs, supports intelligent alarms (face detection, SMD Plus, perimeter protection) and sends notifications via email, snapshots or activation of sirens and lights via alarm output.
Technical data sheet
| Model: DVR | NVR4216-16P-4KS3 |
| SYSTEM | |
| Main Processor | Industrial-grade processor |
| OS | Embedded Linux |
| Operation Interface | Web, Local GUI |
| TO THE | |
| AI by Recorder | SMD Plus |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Perimeter Protection | |
| Perimeter Performance of AI by Camera (Number of Channels) | 6 channels |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Camera (Number of Channels) | 6 channels |
| Face Recognition | |
| Face Recognition Performance of AI by Camera (Number of Channels) | 6 channels |
| SMD Plus | |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 6 channels |
| Audio and Video | |
| Access Channel | 16 channels |
| Network Bandwidth | AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing |
| Resolution | 12 MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF; QCIF |
| Decoding Capability | AI disabled: 1-channel 12 MP@30 fps; 2-channel 8MP@30fps; 3-channel 5MP@30fps; 4-channel 4MP@30fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps; 7-channel 1080p@30fps |
| Video Output | 1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16 |
| Third Party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha |
| Compression | |
| Video | Smart H.265+/H.265/Smart H.264+/H.264 |
| Audio | G.711A/G.711U/PCM/G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP cameras, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Record Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
| Anomaly Alarm | Camera disconnection; storage errors; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzers; log; presets; e-mail |
| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Alarm Input | 4 channels |
| Alarm Output | 2 channels (1-channel 12V 1A output) |
| Disk Interface | 2 SATA ports, up to 20 TB for a single HDD. The maximum HDD capacity varies with environment temperature. |
| RS-232 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| PoE Port | 16 ports, 10/100 Mbps, IEEE 802.3 af/at |
| General | |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | Total output of NVR is <10 w="" without="" hdd="" total="" output="" power="" of="" poe="" is="" 130w="" the="" maximum="" a="" single="" port="" 25="" 5w="" td=""> |
| Net Weight | 2.60 kg (5.73 lb) |
| Gross weight | 3.80 kg (8.38 lb) |
| Product Dimensions | 375.0 mm × 327.9 mm × 53.0 mm (14.76" × 12.91" × 2.09") (W × D × H) |
| Packaging Dimensions | 451.0 mm × 147.0 mm × 425.0 mm (17.76" × 5.79" × 16.73") (W × D × H) |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Installation | Rack or desktop |
| Certifications | CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
