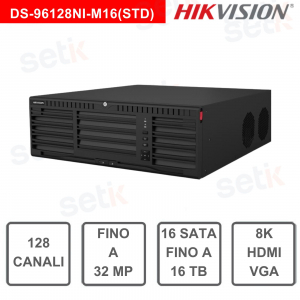

Hikvision NVR up to 128 channels - 32MP - SATA 16TB - audio - alarm


Hikvision DS-96128NI-M16 NVR - 128 IP Channels up to 32MP - 8K - Total Bandwidth: 400Mbps input / 400Mbps output - Codec up to H.265+ - 1xHDMI 8K videoout, 1xHDMI 4K videoout, 2xVGA (FullHD 1080p) - 2x RJ-45 Ethernet 1000M - 4x USB (2x 2.0 - 2x 3.0), up to 16 SATA HDDs of 16TB max (each, not included) - RS-485 - RS-232 - 1 eSATA interface - 2 audio outputs, 1 bidirectional audio channel, 16 inputs + 9 alarm outputs - Video Analysis


SOLUTION PRICE LIST: REQUEST A DEDICATED QUOTATION


referencia : DS-96128NI-M16

brand : Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

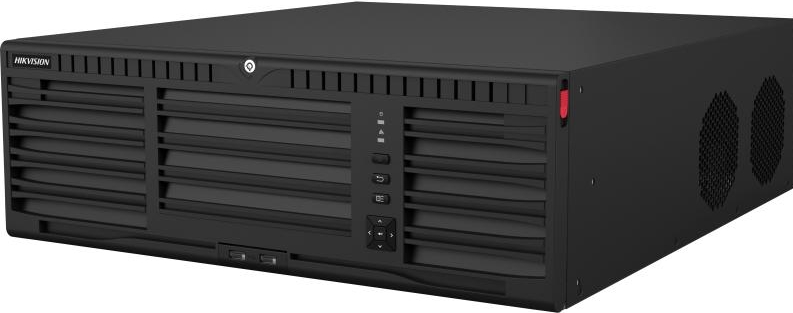

DS-96128NI-M16 | HIKVISION 128-CHANNEL IP NVR - UP TO 32MP - H.265+ - AUDIO - ALARM - SMART DETECTION


Hikvision 128 Channel IP NVR - DS-96128NI-M16(STD) 128 IP Channels up to 32MP - 8K - Total Bandwidth: 400Mbps input / 400Mbps output - Codec up to H.265+ - 1xHDMI 8K videoout, 1xHDMI 4K videoout, 2xVGA (FullHD 1080p) - 2x RJ45 Ethernet 1000M - 4x USB (2x 2.0 - 2x 3.0), up to 16 SATA HDDs of 16TB max (each, not included) - RS-485 - RS-232 - 1 eSATA interface - 2 audio outputs, 1 bidirectional audio channel, 16 inputs + 9 alarm outputs - Video Analysis
It supports special cameras, including people counting camera, ANPR (automatic license plate recognition) camera and fisheye camera.
RAID function RAID0, RAID1, RAID5, RAID6, RAID10
DS-7600NI-I2

128 CHANNELS:

128 Channels up to 32 MEGAPIXELS!
Recording Resolution: 32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Max 400Mbps incoming broadband;
Max 400Mbps outgoing broadband.

8K RESOLUTION (HDMI1 OUT):

8K HD technology!
Even higher resolution than 4K!
More detail available, greater sense of depth and realism.

VIDEO COMPRESSION:

This NVR supports video compression in H.264 and also in the new H.265+ standard

VCA (VIDEO ANALYSIS):

Supports video analytics functions with Hikvision cameras

Among these features, it features:

  • Movement, line crossing, intrusion.
  • Heat map
  • People counting

HIK-CONNECT

Hik Connect allows you to control the device remotely

RJ45:

2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

HARD DISK:

Supports up to 16 SATA HDDs, up to 16TB (each) capacity.

HDDs are sold separately.

HDMI (up to 4k!) and VGA(full-hd) output:

It features 2 HDMI outputs with resolution up to 8K and 2 VGA outputs up to 1080p!

USB:

Front Panel: 2 × USB 2.0

Rear Panel: 2× USB 3.0

Audio and Alarm:

This NVR features 2 audio outputs (RCA) , 16 inputs +9 alarm outputs

1 Channel Two-Way Audio

Technical data sheet

Video and Audio

IP Video Input

128-ch

Incoming Bandwidth

400 Mbps

Outgoing Bandwidth

400 Mbps

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×

HDMI 1 Output

1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 ×

720/60Hz, 1024 × 768/60Hz

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 ×

HDMI 2 Output

1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is

1080p.

VGA 1 Output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA 2 Output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode

HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output

2-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Decoding Format

H.265+/H.265/H.264+/H.264

Recording Resolution

32 MP/24 MP/12 MP/8 MP/7 MP/6

MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

MP/5

MP/4

MP/3

Synchronous playback

16-ch

Decoding Capability

2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@16 MP (30 fps)/8-ch@8 MP (30

fps)/16-ch@4 MP (30 fps)/32-ch@2 MP (30 fps)

Audio Compression

G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,

UPnP™, HTTP, HTTPS

Network Interface

2, RJ-45 10/100/1000Mbps self-adaptive Ethernet interface

RAID

RAID Type

RAID0, RAID1, RAID5, RAID6, RAID10

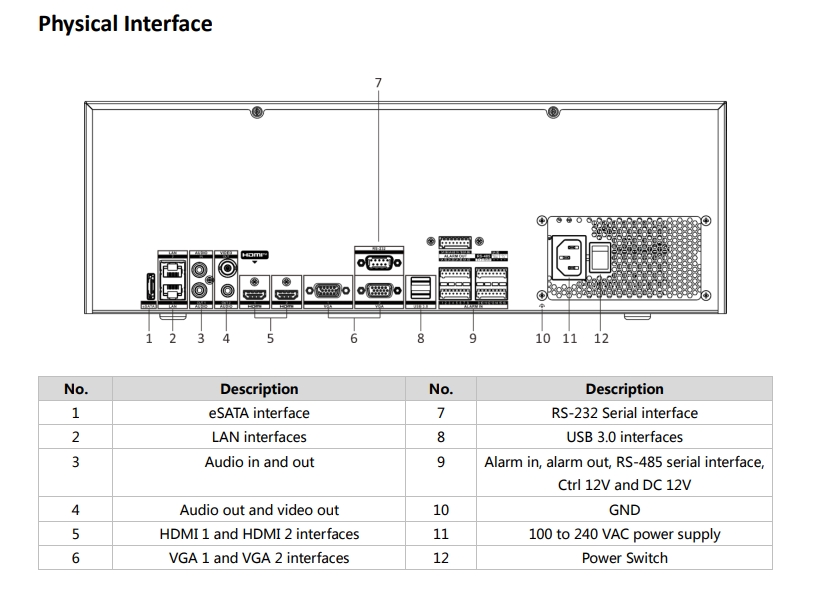

Auxiliary Interface

Serial Interface

1 RS-485 (full-duplex), 1 RS-232

SATA

16 SATA interfaces supporting hot-plug

eSATA

1 eSATA interface

Capacity

Up to 16 TB capacity for each disk

Alarm In/Out

16/9

USB Interface

Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0

Ctrl 12V

Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

*: The Ctrl 12V power is controlled by alarm output 9.

DC 12V

12 VDC, 1 A power output

General

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

≤ 50 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Chassis

3U chassis

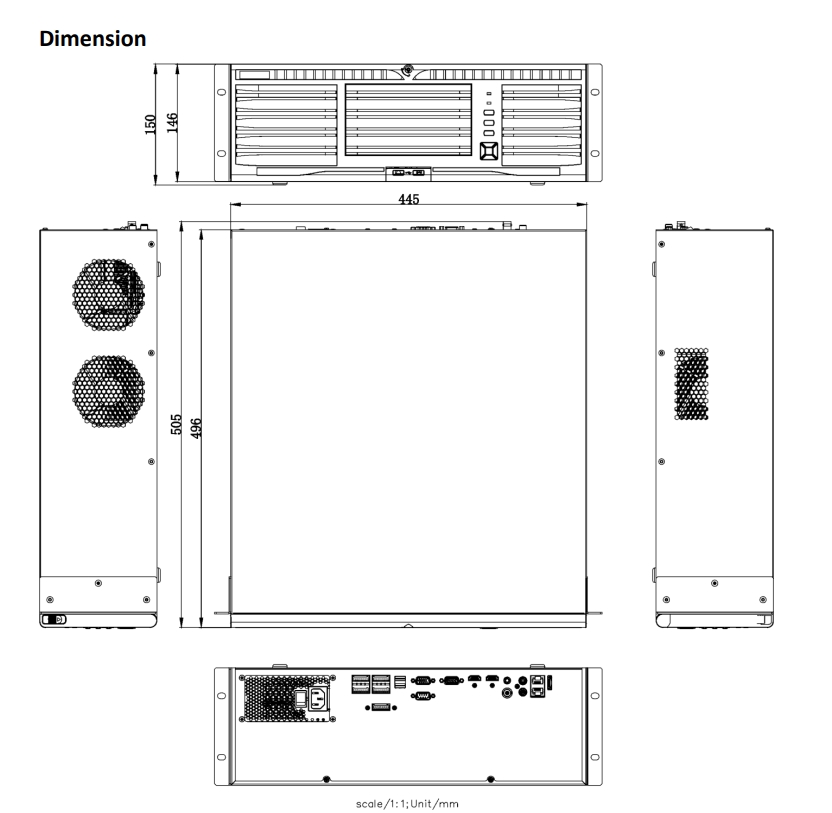

Dimensions (W × D × H)

445 × 496 × 150 mm (17.5" × 19.5" × 5.9")

Weight

≤ 12.5 kg (without HDD, 27.6 lb.)

Certification

Obtained Certification

CE, FCC

FCC

Part 15 Subpart B, ANSI C63.4-2014

THERE IS

EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Further details

Download

Download the English Brochure
