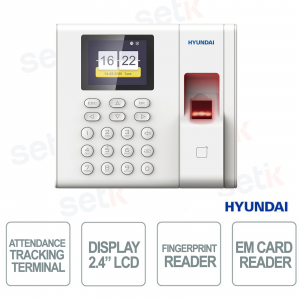

HYU-731-U | STAND-ALONE BIOMETRIC ATTENDANCE TERMINAL

Hyundai Security

The HYUNDAI HYU-731-U (SF-AC3002KEMD-IP) is a standalone biometric terminal for staff attendance control, equipped with a fingerprint reader and EM card reader, ideal for managing company clocking. It supports up to 1,000 users, 1,000 fingerprints, 1,000 cards, 100,000 events and 50,000 attendance records, with biometric recognition in less than 1 second. It integrates a 2.4-inch LCD display, 10/100 Mbps TCP/IP connection and USB 2.0 port for data export. It allows the management of 6 attendance statuses, the configuration of work shifts and holidays and the automatic generation of reports . Equipped with a Linux operating system, tamper protection and 5V DC/1A power supply , it is designed for indoor installations.

Main specifications:

  • Type: Biometric attendance control terminal
  • Identification: Fingerprints and EM cards
  • Capacity: 1,000 users, fingerprints and cards
  • Memory: 100,000 events and 50,000 records
  • Recognition: Less than 1 second
  • Display: 2.4 inch LCD
  • Connectivity: TCP/IP 10/100 Mbps
  • Interface: USB 2.0
  • Attendance Management: 6 Statuses and Automatic Reports
  • Protection: Tamper-proof
  • Power supply: 5V DC / 1A

Further details

✅ Identification:
The HYUNDAI HYU-731-U (SF-AC3002KEMD-IP) biometric terminal supports user identification via fingerprint recognition and an EM proximity card reader. It integrates a biometric optical sensor and a card reader with a reading range of 0 to 3.5 cm, enabling employee attendance registration through two identification modes.
✅ Capacity:
The HYUNDAI HYU-731-U time and attendance terminal can manage up to 1,000 users, 1,000 fingerprints, and 1,000 EM cards , making it suitable for tracking attendance in companies and offices. It supports local user, card, and fingerprint entry, as well as remote fingerprint entry.
✅ Memory:
The device has a storage capacity of up to 100,000 events and 50,000 attendance records, allowing you to preserve data relating to time stamps and recorded activities. This feature facilitates the consultation of attendance history and the subsequent preparation of company reports.
✅ Recognition:
The biometric fingerprint reader uses a high-precision optical module, with a recognition time of less than 1 second (1:N). It guarantees a false acceptance rate (FAR) ≤0.001% and a false rejection rate (FRR) ≤0.1% , ensuring fast and reliable identification during time stamping operations.
✅ Display:
The terminal integrates a 2.4-inch LCD display, designed to display the time, date, day of the week, and attendance information. The screen is flanked by a keypad with non-backlit physical buttons , allowing you to interact directly with the device and manage the main attendance control operations.
✅ Connectivity:
The HYUNDAI HYU-731-U features a 10/100 Mbps Ethernet TCP/IP communication interface , which allows the terminal to connect to the company network for managing user and attendance information. The TCP/IP connection also supports remote fingerprint recognition.
✅ Interface:
The terminal is equipped with a USB 2.0 port for downloading and exporting attendance reports , facilitating data transfer. It also integrates a physical keyboard , a buzzer and a speaker , offering a complete user interface for daily attendance recording operations.
✅ Attendance Management:
The HYUNDAI HYU-731-U biometric terminal supports 6 attendance statuses, including start and end of work day, start and end of break, start and end of overtime. It allows you to configure up to 32 normal shifts, 32 work shifts, and 32 holiday schedules , with automatic generation of attendance reports, simplifying the management of clocking in, timekeeping, and staff activities.

Technical data sheet

HYU-731-U
Characteristics
2.4" LCD display for time, date, week and sampling assistance information
Ability to add fingerprints to the system remotely
TCP/IP communication
Fast and accurate fingerprint recognition
Up to 1,000 users, 1,000 fingerprints and up to 100,000 events
Standalone operation: Add user information, cards and fingerprints locally
Download USB support reports
You can configure up to 32 normal shifts, up to 32 work shifts and up to 32 holiday schedules
Supports 6 attendance states, start of day, end of day, leave rest, enter rest, start of overtime and end of overtime
Generate attendance reports automatically
Supports multiple languages: Spanish, Portuguese, French, Italian, English, etc.
Specifications
Linux operating system
2.4" LCD screen
Capacity of up to 1,000 cards/users
Events: Up to 100,000 events
Service Logs: Up to 50,000 logs
Capacity of up to 1,000 footprints
Fingerprint recognition time: <1 second="" 1:n="" td="">
FAR (False Acceptance Rate): ≤0.001%
FRR (False Rejection Rate): ≤0.1%
Fingerprint Recognizer: Optical Module
The built-in card reader supports EM cards
Card reading range: 0 ~ 3.5cm
Keyboard with physical buttons that are not backlit
Communication interface: TCP/IP (10/100Mbps)
USB 2.0 port
1 zumbador y 1 altavoz
Power supply: 5V DC /1A
Operating humidity: 10% ~ 90%, non-condensing
Dimensions: 155 (An) x 140 (Al) x 30 mm
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
