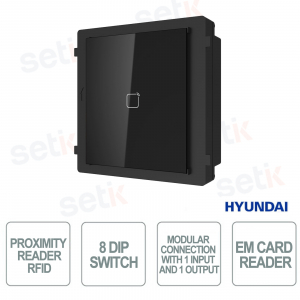

HYU-715-U (SF-VIMOD-CARD-EM) is a NEXTGEN series RFID proximity reader module , designed for access control via modular video intercom. It integrates a 125 kHz EM card reader that allows door unlocking via proximity cards, ensuring practical entrance management. Equipped with an integrated MCU processor, 8 DIP switches and modular connection with 1 input and 1 output , it allows easy expansion of the video intercom system. It offers IP65 protection against dust and water, background light compensation and operation at temperatures between -40°C and +55°C . It supports 12V DC power supply via other modules , with a maximum consumption of 2W, and is designed for flush-mounted or surface installation , with compact dimensions of 100 × 98.5 × 33.7 mm. Hyundai

Technical Data Sheet

referencia : HYU-715-U

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HYU-715-U | 125 kHz RFID READER FOR MODULAR VIDEO INTERCOM

Hyundai Security

The HYUNDAI HYU-715-U (SF-VIMOD-CARD-EM) is an RFID proximity reader module from the NEXTGEN series, designed for access control via modular video intercom systems. It integrates a 125 kHz EM card reader that allows door unlocking via proximity cards , facilitating entrance management. Equipped with an integrated MCU processor, 8 DIP switches and modular connection with 1 input and 1 output, it allows easy expansion of the video intercom system. It offers IP65 protection rating, background light compensation and operation at temperatures between -40°C and +55°C. It supports 12V DC power supply via other modules, with a maximum consumption of 2W , and is designed for flush-mounted or surface installation , ensuring mounting versatility.

Main specifications:

  • Type: NEXTGEN RFID reader module
  • Technology: Proximity EM 125 kHz
  • Access Control: Unlock doors with cards
  • Compatibility: NEXTGEN modular video intercom
  • Processor: Integrated MCU
  • Configuration: 8 DIP switches
  • Connection: 1 input / 1 modular output
  • Protection: IP65
  • Power supply: 12V DC
  • Consumption: ≤ 2W
  • Installation: Built-in or surface mounted

Further details

✅ Technology:
The HYUNDAI HYU-715-U (SF-VIMOD-CARD-EM) uses 125 kHz EM proximity RFID technology , integrating a reader for recognizing EM electronic cards. Designed for HYUNDAI NEXTGEN modular video intercom systems , it allows identification via proximity cards without physical contact with the device.
✅ Access control:
The HYUNDAI HYU-715-U RFID reader module supports door unlocking using 125 kHz EM cards , allowing you to manage entrances through an access control system integrated into the video intercom. This feature allows doors to be opened using compatible proximity cards, without the need for traditional keys.
✅ Compatibility:
The HYU-715-U proximity reader is designed for integration into HYUNDAI NEXTGEN modular video intercom systems , allowing you to add RFID access control functionality to the system. The modular structure facilitates system expansion and supports flush-mounted or surface-mounted installation , with IP65 protection against dust and water jets.
✅ Processor:
The device integrates an MCU (Microcontroller Unit) processor dedicated to managing the EM 125 kHz proximity reader functions. The built-in microcontroller allows the module to function within the video intercom system, managing the electronic operations required for card reading and access control.
✅ Configuration:
The HYUNDAI HYU-715-U module features 8 integrated DIP switches , allowing for hardware configuration of the device within the modular video intercom system. This solution facilitates module setup during installation and integration with other compatible components in the HYUNDAI NEXTGEN series.
✅ Connection:
The RFID reader features a modular connection with 1 input and 1 output , designed for connection to other modules of the HYUNDAI NEXTGEN video intercom system. It supports 12V DC input power from other modules and 12V DC output to additional modules , with a maximum power consumption of 2W , facilitating system expansion and integration.

Technical data sheet

HYU-715-U
Characteristics
Supports door unlocking by 125KHz EM cards
Background light compensation
IP65 protection rating
Easy to extend
Specifications
Embedded MCU processor
Incorporates 125KHz EM proximity reader
8 DIP switches
Modular connection: 1 input / 1 output
Power consumption: 12V DC (from other modules)
Power: 12V DC (to other modules)
≤2W power consumption
Operating temperature -40°C ~ +55°C
Operating humidity 10% ~ 95%
IP65 protection rating
Dimensions: 100 (W) x 98.5 (H) x 33.7 mm
Weight: 160 g
Flush or surface installation
