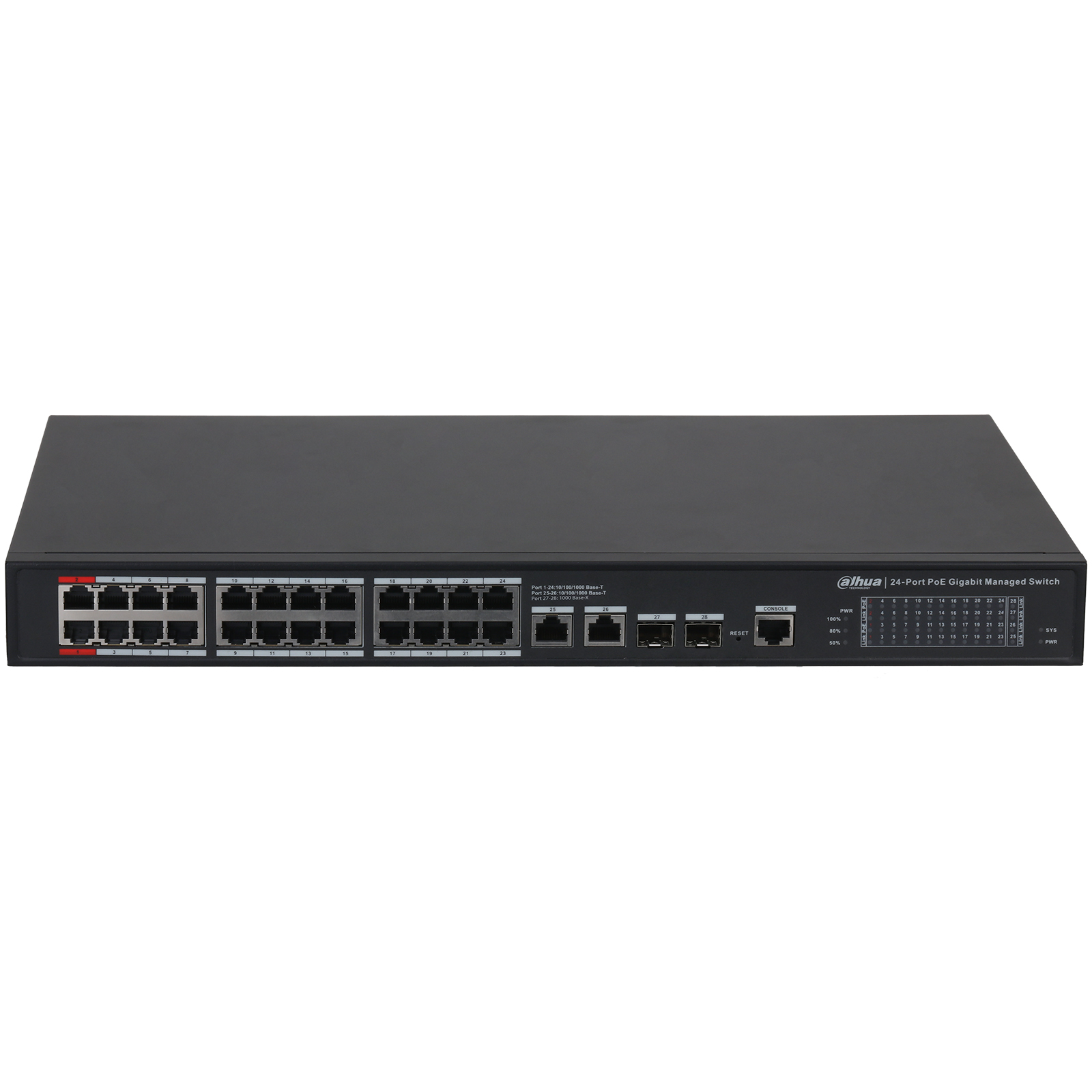

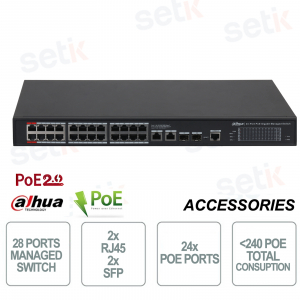

DAHUA S4228-24GT-240 | SWITCH DI RETE LAYER 2 GIGABIT 28 PORTE (24 POE + 2X RJ45 + 2X SFP) - FINO A 250 METRI!

28 porte: 24 Porte LAN PoE (10/100/1000) + 2 porte RJ45 10/100/1000 Mbit/s + 2 × SFP 1000 Mbps
Capacità di switching 41.664Gbps - Packet Buffer Size 4.1Mbits - MAC Table Size 8K - Protezione dai fulmini fino a 4kV
Supporta PoE e Hi-PoE (PoE++) Red Port 90W / Trasmissioni PoE a lunga distanza fino a 250m.
| POE 2.0PoE 2.0 è la nuova generazione di switch Dahua progettati appositamente per gli scenari di videosorveglianza. Questi modelli presentano notevoli ottimizzazioni come PoE Watchdog, porte BT 90W e trasmissione estesa per il massimo della flessibilità e della convenienza. Continua a leggere... |
Dettagli prodotto

- Switch industriale di rete Dahua - S4228-24GT-240
- Layer 2
- Gestionabile
- 24 Porte PoE 10/100/1000B
- 2 porte RJ45 10/100/1000 Mbit/s
- 2 porte SFP 1000 Mbps
- Dettaglio porte PoE:
 Port 1-2: ≤ 90 W
 Port 3-24: ≤ 30 W
 Total: ≤ 240 W
- Standard PoE supportati: IEEE802.3af (PoE); IEEE802.3at (PoE+); Hi-PoE; IEEE802.3bt (PoE++)
- Trasmissione dati su lunghissime distanze, fino a 250m
- MAC Adress Size 8K
- Packet Buffer Size: 4.1Mbits
- Protezione contro fulmini fino a 4KV (2KV in modalità differenziale)
- Dimensioni: 440 mm × 300 mm × 44 mm
- Peso netto: 3,405 kg
- Temperatura di funzionamento: –10°C to 55°C
- Consumi:
 Idling load: ≤ 20 W
 Full load: 240 W
- Alimentazione: 100-240 V CA, 50/60 Hz, 3,5 A
- Integra tasto di reset
| S4228-24GT-240 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Hardware | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Included Power Adapter | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port | 26 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Optical Port | 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Ethernet Port Speed | 10/100/1000 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Optical Port Speed | 1000 Mbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description of Function Slots | Port 1-24: 24 × RJ45 10/100/1000 Mbps(PoE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Debugging | Console × 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Reset Button | 1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 100-240 VAC, 50/60 Hz, 3.5 A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | –10°C to 55°C (+14°F to +131°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Humidity | 5%–95% (RH) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption | Idling load: ≤ 20 W; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management Type | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MTBF | 467125.73 hours | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Switching Capacity | 56 Gbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packet Forwarding Rate | 41.664 Mpps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packet Buffer Size | 4.1 Mbit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Jumbo Frame | 10K Byte | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| MAC Table Size | 8K | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VLAN Number | 4K | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Communication Standard | IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Feature | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Protocol | IEEE802.3af (PoE); IEEE802.3at (PoE+); Hi-PoE; IEEE802.3bt (PoE++) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Power | Port 1-2: ≤ 90 W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Power Consumption Management | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PoE Pin Assignment | 1,2,4,5 (V+),3,6,7,8 (V-) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Long Distance PoE Transmission | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Spanning Tree Protocol | STP; RSTP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VLAN Function | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Link Aggregation | Static link aggregation; LACP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| IEEE 802.3x Flow Control | IEEE 802.3X-based flow control (full-duplex) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Multicast | IGMP Snooping | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| DHCP Function | DHCP client | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Security | IEEE 802.1x | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Equipment Management | WEB(http and https) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| General | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Statics Protection | Air discharge: 8 kV; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Lighting Protection | Common mode: 4 kV; | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Net Weight | 3.405 kg (7.51 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gross Weight | 4.51 kg (9.94 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Product Dimensions | 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Packaging Dimensions | 525 mm × 410 mm × 110 mm (20.67" × 16.14" × 4.33") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certifications | CE, FCC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| POE 2.0PoE 2.0 è la nuova generazione di switch Dahua progettati appositamente per gli scenari di videosorveglianza. Questi modelli presentano notevoli ottimizzazioni come PoE Watchdog, porte BT 90W e trasmissione estesa per il massimo della flessibilità e della convenienza. PIU' POTENZA E PROTEZIONE
 PIU' PORTATA
 GESTIONE INTELLINGENTE
 |
