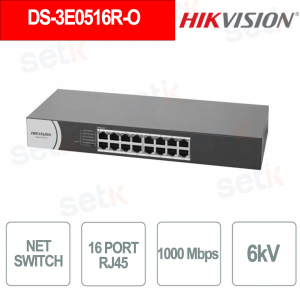

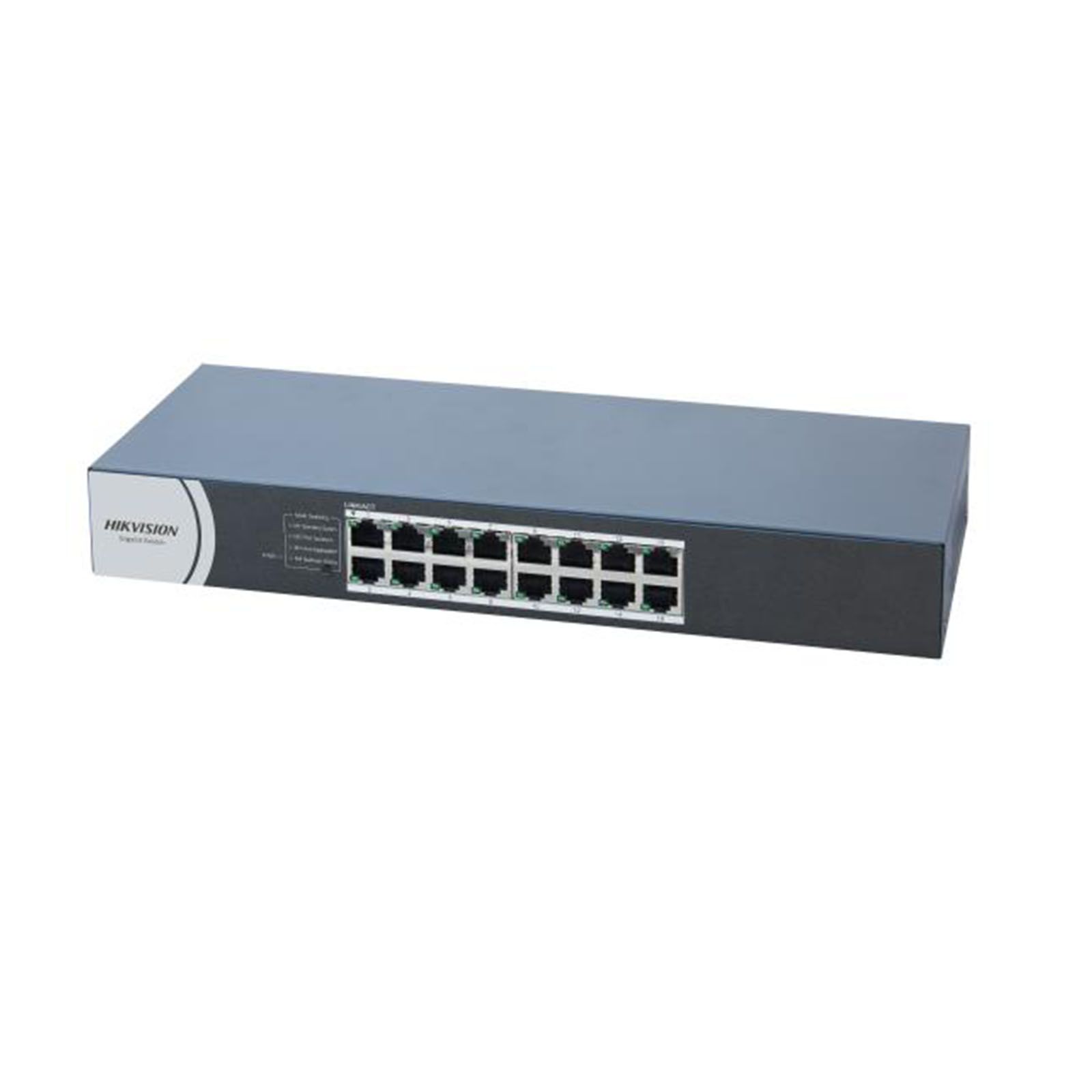

16 PORT NETWORK SWITCH 10 / 100 / 1000 Mbps - 32 Gbps - 6kV - HIKVISION

16 Ports - Fast 10 / 100 / 1000 Mbps Transmission - Plug and Play without Configuration - 32 Gbps Broadband - Up to 6kV - Tabletop Installation
Product details
- Network Switches - Hikvision
- 16 10/100/1000Mbps auto-negotiation RJ45 ports
- Plug and play without configuration
- Up to 32Gbps back panel bandwidth and supports non-blocking wire-rate forwarding
- LEDs to easily monitor link speed, activity and find problems in time
- Loop detection and loop prevention
- Up to 6 kV lightning proof for each port
- Tabletop installation
- Dimensions: 327 x 44 x 118 mm
- The metal casing and larger shell ensure effective cooling
Technical data sheet
| DS-3E0516R-O | |
| General | |
| Shell | Metal material, fan-free design |
| Net Weight | 0.9kg (2.0lb) |
| Gross Weight | 1.4kg (3.1lb) |
| Dimensions (W × H × D) | 327.00 mm × 44.00 mm × 118.00 mm (12.87'' × 1.73'' × 4.65'') |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100-240 VAC, 50/60 Hz, Max. 0.3 A |
| Max. Power Consumption | 12 W |
| Power Consumption at Idle | 2.8W |
| Installation Mode | Rack (equipped with mounting ears) |
| Surge Protection | 6 KV |
| Network Parameters | |
| Ports | 16 × Gigabit RJ45 ports |
| MAC Address Table | 8K |
| Switching Capacity | 32 Gbps |
| Packet Forwarding Rate | 23.81 Mpps |
| Internal Cache | 4.1 Mbits |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), RCM (AS/NZS CISPR 32: 2015) |
| Safety | CE-LVD (EN 62368-1: 2014+A11: 2017), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
