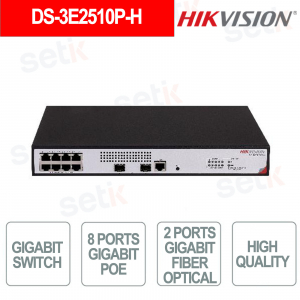

10 PORT ETHERNET NETWORK SWITCH - 8 GIGABIT PoE PORTS (IEEE802.3at) - 2 GIGABIT FIBER OPTIC PORTS - HIKVISION

Hikvision
Gigabit ethernet switch - Hikvision
10 Ethernet Ports - 8 Gigabit PoE Ports (IEEE802.3at) - 2 Gigabit Fiber Optic Ports - 16K Mac Address - 56Gbps Switching Capacity

Product details

DS-3E2510P-H
  • Network Switches - Hikvision
  • 10 Ethernet Ports
  • 8 Gigabit PoE ports (IEEE802.3at)
  • 2 Gigabit fiber optic ports
  • Supported PoE Standards: IEEE802.3at
  • Dimensions: 333 mm × 230 mm × 44 mm

Technical data sheet

Model DS-3E2510P-H
General
Power Supply AC：100V～240V AC，50/60Hz; Maximum voltage range: 90 V to 264 V,47 Hz to 63 Hz
Surge Protection 6kV
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Shell Metal
Net Weight 2.30 kg (5.07 lb)
Gross Weight 3.00 kg (6.61 lb)
Dimensions (W × H × D) 333.00 mm × 230.00 mm × 44.00 mm (12.99'' × 9.05'' × 1.73'')
Operating Temperature -5 °C to 45 °C (23 °F to 113 °F)
Operating Humidity 10% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Installation Mode Rack (equipped with mounting ears)
Max. Power Consumption 157 W
Power Consumption at Idle 13 W
Network parameters
Port Number 8 × Gigabit PoE port,2 × Gigabit fiber optical port
MAC address table 16K
Switching capacity Whole-Device Performance: 56 Gbps Port Performance: 20 Gbps
Packet forwarding rate Whole-Device Performance: 41.66 Mpps Port Performance: 14.88 Mpps
Internal Cache 1.5 Mbits
Poe Power Supply
PoE Standard IEEE 802.3at
PoE Power Pin End span: 1/2(-), 3/6(+)
PoE Port PoE: Ports 1 to 8
Max. Port Power 30W
POE power budget 125W
Software Function
Ethernet LLDP Static MAC configuration Limit of number of MAC addresses to be learned (up to 8K) Port mirroring and traffic mirroring Port aggregation (up to 24 groups and 8 ports for each group) Port isolation STP/RSTP/MSTP IEEE 802.3ad (dynamic link aggregation) and static port aggregation
VLAN 802.1Q (up to 4K VLAN) Protocol-based VLAN MAC-based VLAN GUEST VLAN VLAN mapping MVRP
IP Routing Static routing
DHCP DHCP Relay DHCP Client DHCP Snooping
Multicast IGMP V1/V2/V3 snooping PIM Snooping Multicast VLAN IPv6 multicast setting
QoS SP/WRR/SP+WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit
ACL ACL on Layer 2, Layer 3 and Layer 4 IPv4 and IPv6 ACLs VLAN ACL
Security Hierarchical user management and password protection SSH for a secure encrypted channel for user login Specific IP address based FTP logging and password mechanism Prevent attacks from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet, and protocol packet MAC address limit IP+MAC+PORT binding IEEE 802.1x Radius and AAA SNMPv3 Broadcast suppression
System Management Command line configuration via console/AUX Modem/Telnet/SSH Uploading and downloading of FTP, TFTP, and Xmodem, and SFTP files SNMP V1/V2c/V3 sFlow NQA NTP clock System operating logs
IPv6 IPv6 static routing and dual-stack DHCPv6 Client and DHCPv6 Snooping ND and PMTU IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, and IPv6 domain name resolution
Reliability Hot patches, in-service patch upgrades
Approval
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1:2014 (Second Edition)
Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

Further details

No additional details
