The TP-Link Omada EAP650 D30-Outdoor is a dual-band Wi-Fi 6 access point designed for indoor and outdoor environments, ideal for warehouses and outdoor spaces. It offers speeds of up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ensuring fast and reliable connections. Equipped with built-in high-gain directional antennas, it ensures extensive and precise coverage.
 The rugged IP68-certified enclosure makes it dust and water resistant, suitable for operating temperatures from -30°C to +70°C. Centralized management via Omada SDN allows for unified and remote control of the network.
LIQUIDACION TOTAL ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

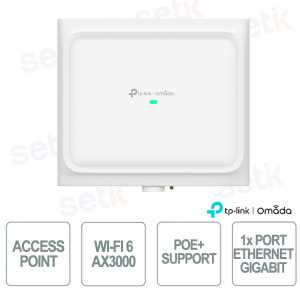

EAP650 D30-Outdoor ACCESS POINT FOR WALL OR BLADES DUAL-BAND Wi-Fi 6 AX3000 - TPLINK OMADA
The TP-Link Omada EAP650 D30-Outdoor is a dual-band Wi-Fi 6 access point designed to provide high-speed connections and extended coverage, perfect for warehouses, industrial environments and outdoor spaces. Thanks to Wi-Fi 6 technology, it guarantees speeds of up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, optimizing performance for a large number of simultaneously connected devices.
 Equipped with 4 high-gain directional antennas, it provides ultra-wide and targeted coverage, ensuring stable connections even over long distances. Fast roaming support allows devices to automatically switch between access points without interruption, ensuring a smooth connection experience throughout the area.
 The 2.5G PoE+ port unlocks the full potential of Wi-Fi 6, making it easy to install and power with a single Ethernet cable. Designed to withstand the harshest environments, the device is enclosed in an IP68-certified casing, protecting it from dust, water and extreme temperatures from -40°C to +70°C, making it ideal for industrial and outdoor applications.
 With Omada SDN centralized management, Omada Mesh support and Bluetooth connectivity, the EAP650 D120-Outdoor provides a powerful, scalable and easily remotely manageable network.

Main features:
- High-performance Dual-Band Wi-Fi 6 : Speeds up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz and greater capacity and stability for more connected devices
- Ultra-extensive and targeted coverage : 4 built-in high-gain directional antennas and more focused signal for optimal coverage even over long distances
- Smooth connection and fast roaming : Fast Roaming to automatically switch between access points without interruption and ideal for large areas with frequent device movements
- Wireless speed up to 2976 Mbps , ideal for high-density outdoor environments
- Rugged and designed for harsh environments : IP68 certification, dust and water resistant and operating temperature range: -40°C to +70°C, ideal for warehouses, industrial and outdoor environments
- Advanced management and remote control : Omada SDN for centralized cloud management, Omada Mesh support for network expansion without additional cabling, and Bluetooth connectivity for quick and easy setup
Technical data sheet
| Model | EAP650 D30-Outdoor |
| HARDWARE FEATURES | |
| Interface | 1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE) |
| Key | Reset |
| Diet | 802.3at PoE 48V Passive PoE (PoE Adapter Included) |
| Energy consumption | EU: 12.5W (802.3at PoE or Passive PoE) US: 14.7W (802.3at PoE or Passive PoE) |
| Dimensions (L x W x H) | 8.2 × 2.3 × 9.1 in (207.5 × 58 × 230 mm) |
| Antenna type | Built-in Directional Antennas: 2.4GHz: 2×12dBi 5GHz: 2×15dBi Beamwidth: 30° Horizontal; 30° Vertical |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP68 |
| Mounting type | Wall/Pole/Ceiling Mount |
| WIRELESS FEATURES | |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4GHz, 5GHz |
| Signal rate | 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)† |
| Wireless functionality | 1024-QAM DL/UL OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Enable/Disable SSID Broadcast Guest Network Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO Omada Mesh Seamless Roaming(802.11k/v/r)§ Band Steering Load Balance Airtime Fairness Beamforming RADIUS Accounting MAC Authentication Reboot Schedule Wireless Schedule Wireless Statistics Static IP/Dynamic IP |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission power | EU: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP); < 30 dBm (5 GHz, band 3, EIRP); US: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz) |
| MANAGEMENT | |
| Omada App | Yes |
| Restore & Backup | Yes |
| NTP | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller Omada APP |
| Cloud Access | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller Omada APP |
| Email Alerts | Yes |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c |
| Local and remote system logs | Yes |
| SSH | Yes |
| Web-based management | Yes |
| Multisite Management | Yes |
| Zero Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHER | |
| Certification | CE, FCC, RoHS |
| Package Contents | Access Point EAP650 D30-Outdoor Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: -30–70℃ (-22–158℉) Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |

| Designed for warehouses
 | |
| Improve WiFi experience for shelf areas with directional antennas
 | |
| Directional antennas for ultra-wide coverage in outdoor scenarios
 | |
| Stay smooth with seamless roaming
 | |
| Seamless integration into Omada SDN
 | |
| 2 year warranty The following product is covered by a 2 year warranty | |
