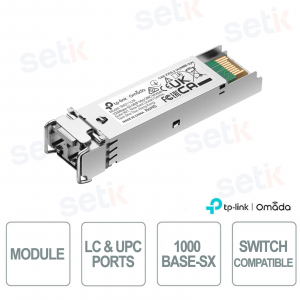

TP-Link SM311LM SFP Module: 1.25Gbps Fiber Optic Transceiver for Switches and IP Video Surveillance

TP-Link SM311LM SFP Module: 1.25Gbps Fiber Optic Transceiver for Switches and IP Video Surveillance

SUBCOSTE nuevo

SM311LM - TP-Link's 1000Base-SX MMF Mini GBIC Fiber Optic Module is designed to extend transmission distances up to 550 meters over multimode fiber, offering speeds of up to 1.25 Gbps. Compatible with TP-Link T-Series and MC220L switches, it features an LC/UPC connector, DDM function, IEEE 802.3z standard, and hot-swappable support. Ideal for high-performance LAN networks, it guarantees efficiency, reliability, and expansion cost savings thanks to its modular selection. Also perfect for video surveillance systems with high-definition IP cameras. Omada

Technical Data Sheet

referencia : SM311LM

brand : OMADA

EAN: 6935364030216

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2024-06-19 10:38:25 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

SM311LM | MINI-GBIC 1000BASE-SX MULTIMODE LC SFP MODULE


Dahua

The TP-Link SM311LM SFP module is an ideal solution for extending LAN networks over multimode fiber optics, offering stable transmission up to 550 meters at 1.25Gbps. Compatible with numerous TP-Link switches, it is perfect for enterprise applications and IP video surveillance systems that require high performance and reliability, thanks to its hot-swappable installation and DDM support.

Main specifications:

- LC/UPC port, speed 1.25Gbps

- Max distance 550m on MMF fiber

- Wide compatibility with T series and MC220L

- DDM function, IEEE 802.3z standard

- Operating temperature: 0°C ~ 70°C

Further details

LC/UPC port:
This module uses an LC/UPC optical interface, the most widely used standard for multimode SFP connectivity. It provides a reliable and easy-to-install connection, with hot-swappable support for seamless hot swapping .
Extended compatibility with T series and MC220L :
The SM311LM is fully compatible with numerous TP-Link models, including the T3700, T2700, T2600, T2500, T1700, T1600, T1500 series, 2/3/5 series and the MC220L media converter. This provides maximum flexibility in existing business environments and infrastructures, reducing adaptation costs .
DDM (Digital Diagnostic Monitoring) function :
With DDM support, users can monitor critical parameters such as temperature, supply voltage, and input and output signal strength in real time. This feature improves diagnostics, preventing anomalies and ensuring service continuity.

Technical data sheet

Model SM311LM
MEDIA CONVERTER & MODULE
Standards & Protocols IEEE 802.3z, CSMA/CD, TCP/IP
Wavelength 850nm
Dimensions (L x W x H) 2.2*0.5*0.5 in (55.4*13.7*12.9 mm)
Diet 3.3V
Safety & Emissions

FCC, CE

Cable Multi-mode Fiber
Fiber type 50/125μm or 62.5/125μm Multi-mode
Maximum cable length 550m
Data transmission speed 1.25Gbps
Door type LC/UPC
Hardware Features DDM
SFP-MSA
Hot Swappable
Package Content SM311LM
Installation Guide
Environment Operating Temperature: 0℃~70℃ (32℉~158℉)
Storage Temperature: -40℃~80℃ (-40℉~176℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
