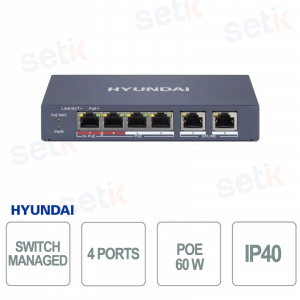

HYU-1065 4-Port PoE Switch with Hi-PoE, Remote Management and 300m LAN

HYU-1065 4-Port PoE Switch with Hi-PoE, Remote Management and 300m LAN

 

The HYU-1065 4-port PoE switch is ideal for professional IP networks with Hi-PoE support on port 1 (60W) and transmission distances of up to 300 meters. It includes two 100 Mbps uplink ports, remote management, alarm forwarding, 6KV surge protection, and 1.2 Gbps switching capacity. Featuring a metal housing, it supports wall or desktop mounting and is perfect for compact and secure installations.

Technical Data Sheet

referencia : HYU-1065

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HYU-1065 | 4-PORT MANAGEABLE POE SWITCH


Dahua

The HYU-1065 switch is a 4-port manageable PoE device, ideal for IP video surveillance or business networking systems. It supports Hi-PoE technology up to 60W on port 1 and long-distance network transmission, up to 300 meters. It provides 1.2 Gbps switching capacity, advanced remote management, 6KV surge protection, and flexible wall or desktop installation .

Main specifications:

- 4 x 10/100 Mbps RJ45 PoE ports (port 1 up to 60W Hi-PoE)

- 2 RJ45 100 Mbps uplink ports

- Transmission up to 300 meters, IEEE802.3af/at/bt standard

- 1.2 Gbps switching capacity and 2K MAC addresses

- Remote configuration, firmware update and topology management

- Wall or desktop mounting, IP40 metal construction

Further details

✅ Number of doors:
It has 4 10/100 Mbps RJ45 PoE ports , of which port 1 supports Hi-PoE up to 60W, and 2 100 Mbps uplink ports , ensuring flexibility in network connections .
✅ Long range transmission :
It supports PoE transmission up to 300 meters (1,000 feet), making it ideal for large-area installations such as warehouses, parking lots, or perimeter areas.
✅ Switching capacity:
It offers a switching capacity of 1.2 Gbps , with a packet transfer rate of 0.8928 Mpps and a 768 Kbit internal cache , ensuring smooth performance even under load .
✅ PoE (Power over Ethernet) :
Compliant with IEEE802.3af/at/bt standards, it allows direct power supply to connected devices up to 60W total, with power priority, surge protection (6KV), and intelligent power management .

Technical data sheet

HYU-1065
Specifications
4 x 10/100 Mbps RJ45 PoE ports
2 x 100Mbps RJ45 Uplink ports
PoE consumption: ≤60W port 1, ≤30W ports 2 to 4, ≤60W total
PoE standards: IEEE802.3af (PoE), IEEE802.3at (PoE+), IEEE802.3bt (Hi-PoE)
Long-distance PoE transmission up to 300 meters (1,000 feet)
Forwarding mode: Store and forward
1.2 Gbps switching capacity
Packet transfer rate of 0.8928 Mpps
MAC Addresses: 2K
Internal cache: 768 Kbit
Support for priority forwarding of red zone port data
Supports speed, flow control and switch configuration
Support remote upgrade and restore default parameters
Supports log viewing and basic network parameter configuration
Power supply: 48V DC, 1.35A
Power consumption: 2W (standby), 65W (maximum)
Operating temperature: -10°C ~ +55°C
Storage temperature: -40°C ~ +85°C
Relative humidity 5%~95%.
Metal housing
Degree of protection IP40 (not suitable for outdoor use)
6KV lightning-proof PoE ports
Dimensions: 145 (W) x 25.6 (H) x 68.45 mm
Net weight: 245 g
Gross weight: 645 g
Wall or desk mountable
