TP-Link Omada SM6220-1M – Direct Attach Cable SFP28 25G 1 Meter

TP-Link Omada SM6220-1M – Direct Attach Cable SFP28 25G 1 Meter

nuevo

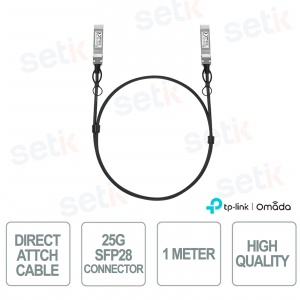

The TP-Link Omada SM6220-1M is a 1-meter 25G SFP28 Direct Attach cable , ideal for high-speed, short-range connections between racks or adjacent devices. With SFP28 connectors on both ends , it supports speeds of up to 25 Gbps , with backward compatibility to 10 Gbps and 1 Gbps. Made of silver-plated tinned copper conductor and 30AWG wire, it ensures stability and durability. Designed for professional environments, it withstands operating temperatures between 0°C and 70°C and humidity up to 90%, maintaining consistent performance. With a minimum bend radius of 22.5 mm, it represents a reliable and cost-effective solution for data centers and advanced network infrastructures. Omada

Technical Data Sheet

referencia : SM6220-1M

brand : OMADA

EAN: 8885020624052

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

SM6220-1M | 1-Meter SGFP28 25G Direct Connect Cable


Dahua

The TP-Link Omada SM6220-1M is a 1-meter 25G SFP28 Direct Attach cable designed for high-speed, short-range connections between servers, switches, and network devices. Featuring SFP28 connectors on both ends, it supports speeds up to 25 Gbps with backward compatibility to 10/1 Gbps, offering a reliable and cost-effective solution for data centers and professional infrastructure. Made of silver-plated tinned copper and 30AWG wire, it ensures stability, low latency, and long life even under harsh operating conditions.

Main specifications:

- 1 meter cable length, ideal for racks and close connections

- Supports 25/10/1 Gbps speeds for maximum flexibility

- SFP28 connectors on both ends

- Silver-plated copper conductor with a minimum bend radius of 22.5 mm

- Resistance in professional environments: from 0°C to 70°C, humidity up to 90%

Further details

SFP28 Connector:
Equipped with SFP28 connectors on both ends , it ensures universal compatibility with the latest generation of network devices while maintaining backward compatibility with lower standards. This makes it ideal for flexible deployments and progressive upgrades of IT infrastructure.
25 Gigabit Ethernet Drive :
It supports speeds up to 25 Gbps , with backward compatibility to 10 Gbps and 1 Gbps, offering fast, stable, and low-latency data transmission. Perfect for performance-demanding applications such as virtualization, high-capacity storage, and short-range inter-rack connections.

Technical data sheet

Model SM6220-1M
GENERAL
Product Dimensions Plug: 2.26*0.53*0.34 in (57.5*13.55*8.55 mm);
Overall length: 39.37 in (1,000 mm)
SFP28 Cable
Environment Operating Temperature: 0–70℃ (32–158℉)
Storage Temperature: -40–85℃ (-40–185℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Data Rate 25 Gbps / 10 Gbps / 1 Gbps
Conductor

Silver Plated Copper

Wire Gauge 30AWG
Min. Bend Radius 22.5mm
Max. Cable Length 1 m
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
