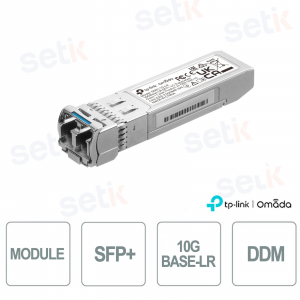

SM5110-LR | SFP+ MODULE WITH ETHERNET CONNECTIONS UP TO 10KM


Made Omada

The TP-Link Omada SM5110-LR SFP+ transceiver is a reliable solution for 10G Ethernet connections over single-mode fiber up to 10 km, ideal for data centers and enterprise networks that require high speeds and stability. Compatible with the SFP+ MSA and IEEE 802.3ae standards, it integrates the DDM system for digital diagnostic monitoring and supports Hot-Swappable technology, which allows for installation and replacement without service interruption. With transmission speeds of up to 10.3125 Gbps and optimized power consumption, it offers professional performance with complete security.

Main specifications:

- Transmission speeds up to 10.3 Gbps over single-mode fiber

- Operating distance up to 10 km

- Digital Diagnostic Monitoring (DDM) support

- Hot-Swappable design for quick and safe replacement

- Compatible with SFP+ MSA and IEEE 802.3ae standards

Further details

SFP+ Module:
This device supports speeds up to 10.3125 Gbps with the LC interface, ensuring compatibility with the SFP+ MSA and IEEE 802.3ae standards. Its compact design allows for easy integration into existing network infrastructures while maintaining high performance and reliability.
DDM (Digital Diagnostic Monitoring) :
It includes digital diagnostic monitoring that allows real-time verification of key parameters such as optical power, temperature, and voltage. This feature is essential for proactive network management, preventing failures and optimizing maintenance.
Hot-Pluggable:
Thanks to the hot-swappable design, the module can be inserted or replaced without interrupting network services. This feature ensures maximum flexibility, reduces downtime, and simplifies technical interventions, especially in critical environments.

Technical data sheet

Model SM5110-LR
TRANSCRIBER
Standards & Protocols IEEE 802.3ae, TCP/IP
Wave Length 1310 nm
Diet 3.3V
Fiber Type 9/125um Single-Mode
Max. cable length 10 km
Data transmission speed 10 Gbps
Connector LC Duplex
Regulatory Compliance FCC, CE
Environment Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 10% to 90% RH, Non-Condensing
Storage Humidity: 5% to 90% RH, Non-Condensing
HARDWARE FEATURES
DDM Yes
QSFP28 MSA Yes
Hot Swappable Yes
MEDIA CONVERTER & MODULE
Dimensions (L x W x H) 2.2*0.5*0.4 in (56.7*13.9*10.35 mm)
PACKAGE CONTENT
Package Content SM5110-LR
Installation Guide
