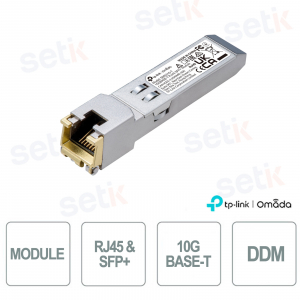

TP-Link TL-SM5310-T SFP+ RJ45 | High-Performance 10GBASE-T Module

TP-Link TL-SM5310-T SFP+ RJ45 | High-Performance 10GBASE-T Module

nuevo

The TP-Link TL-SM5310-T SFP+ RJ45 module provides high-performance 10GBASE-T Ethernet connections, compatible with multiple IEEE standards for maximum interoperability. It supports speeds up to 10.3 Gbps and transmission distances up to 100 m with Cat.5e/6/6a cables, offering flexibility for enterprise networks and data centers. It integrates the DDM function for temperature and voltage monitoring, while the hot-pluggable design simplifies installation and replacement without service interruption. With optimized power consumption and a low-EMI metal casing, it represents an efficient and secure solution for next-generation network infrastructures. Omada

Technical Data Sheet

referencia : SM5310-T

brand : OMADA

EAN: 4897098687758

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

SM5310-T | SFP+ RJ45 MODULE WITH 10Gbps DATA TRANSMISSION UP TO 30m


Made Omada

The TP-Link TL-SM5310-T SFP+ RJ45 module is designed for Ethernet connections up to 10GBASE-T, ensuring high performance and compatibility with various IEEE standards. It supports speeds up to 10.3 Gbps and transmission distances up to 100 m with Cat.5e/6/6a cables, making it ideal for enterprise networks, data centers, and providers. Equipped with DDM for real-time temperature and voltage monitoring and a hot-pluggable design, it allows for quick installation and replacement without service interruption. With a low-EMI metal enclosure and low power consumption, it represents an efficient and secure solution for modern network infrastructures.

Main specifications:

- SFP+ RJ45 module with support for up to 10.3 Gbps

- Distance up to 30 m (Cat.6a) and 100 m (Cat.5e/6)

- Digital Diagnostic Monitoring (DDM) support

- Hot-Pluggable design for flexible installation

- Compatible with IEEE 802.3, 802.3ab, 802.3bz, 802.3an standards

Further details

Max. cable length:
It supports distances of up to 100 m with Cat.5e/6 cables for connections up to 5GBASE-T and up to 30 m with Cat.6a for 10GBASE-T, ensuring high speeds and stability in various network infrastructures.
DDM (Digital Diagnostic Monitoring) :
It integrates digital diagnostic monitoring, allowing you to monitor parameters such as temperature and voltage in real time, improving reliability and preventative management of the network.
Hot-Pluggable:
Thanks to the hot-swappable design, the module can be installed or replaced without interrupting network service, providing flexibility and reducing downtime in mission-critical environments.
TX Disable Feature:
It includes the TX Disable function, which allows you to deactivate the laser transmitter when necessary, increasing operational safety and the possibility of controlled management of the module.

Technical data sheet

Model SM5310-T
TRANSCRIBER
Standards & Protocols IEEE Std 802.3, 802.3ab, 802.3bz, 802.3an, 802.3x; SFF 8432, SFF-8472
Diet 3.3V
Max. cable length 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m)
10GBASE-T: UTP cat.6a or above (max. 30m)
Data transmission speed 10 Gbps
Door type 1× 10G RJ45 Port
Regulatory Compliance FCC, CE, RoHS
Environment Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
HARDWARE FEATURES
Hot Swappable Yes
MEDIA CONVERTER & MODULE
Dimensions (L x W x H) 2.7*0.5*0.5 in (67.4*13.75*13.8 mm)
PACKAGE CONTENT
Package Content 10G BASE-T RJ45 SFP+ Module SM5310-T
Installation Guide
