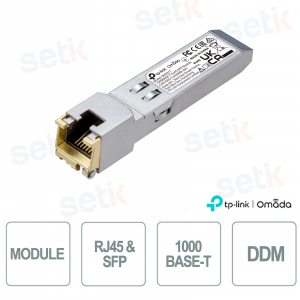

TP-Link SM331T SFP RJ45 | Gigabit 1000BASE-T module up to 100m

TP-Link SM331T SFP RJ45 | Gigabit 1000BASE-T module up to 100m

nuevo

The TP-Link SM331T SFP RJ45 module is designed to support 1000BASE-T Gigabit Ethernet connections up to 100 meters with Cat.5e or higher cables, offering stability and high performance. Thanks to the TX Disable function, it ensures safe signal management, while the hot-pluggable design allows for quick installation without service interruption. Compliant with the IEEE 802.3-2002 standard, it ensures compatibility with a wide range of network devices. The metal casing reduces EMI interference and optimized power consumption (0.5W typical) makes this module a reliable and sustainable choice for businesses and data centers. Omada

Technical Data Sheet

referencia : SM331T

brand : OMADA

EAN: 4897098687741

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

SM331T | RJ45 SFP MODULE SUPPORTS 1000 BASE-T CONNECTIVITY UP TO 100m


Made Omada

The TP-Link SM331T SFP RJ45 module is ideal for 1000BASE-T Gigabit Ethernet connections, ensuring reliable performance up to 100 meters with Cat.5e or higher cables. Compatible with the IEEE 802.3-2002 standard, it ensures interoperability with a wide range of switches and network devices. Thanks to the hot-pluggable design, it can be installed without service interruption, while the TX Disable function improves security and signal management. The metal casing reduces EMI interference and low power consumption makes it perfect for corporate networks and data centers.

Main specifications:

- Supports Gigabit 1000BASE-T connections up to 100 m

- Compatible with IEEE 802.3-2002 standards

- Hot-Pluggable design for quick installation

- TX Disable function for greater security

- Low power consumption (0.5W typical)

Further details

Max. cable length:
It supports connections up to 100 meters over Cat.5e or higher cables, ensuring stable performance and excellent installation flexibility in various network scenarios.
DDM (Digital Diagnostic Monitoring) :
It enables real-time monitoring of operating parameters such as temperature, voltage and signal strength, improving proactive network management and reducing the risk of malfunctions.
Hot-Pluggable:
The hot-swappable design allows module installation or replacement without having to power down network equipment, reducing downtime and increasing operational flexibility.
TX Disable Feature:
It integrates the transmitter deactivation function, useful for safely managing network operations and ensuring more accurate control during configuration and maintenance phases.

Technical data sheet

Model SM331T
TRANSCRIBER
Standards & Protocols IEEE 802.3-2002
Diet 3.3V
Max. cable length 100m* (Cat 5e or above)
Data transmission speed 1.25 Gbps
Door type 1× 1000 Mbps RJ45 Port
Regulatory Compliance FCC, CE
Environment Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
HARDWARE FEATURES
Hot Swappable Yes
MEDIA CONVERTER & MODULE
Dimensions (L x W x H) 2.7*0.5*0.5 in (67.4*13.75*13.8 mm)
PACKAGE CONTENT
Package Content SM331T
Installation Guide
