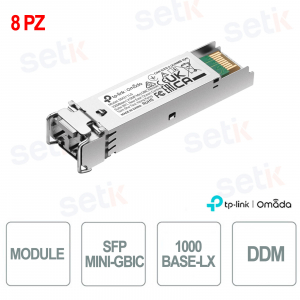

TP-Link SM311LS(8-pack) SFP | Set of 8 1000BASE-LX single-mode modules up to 20 km

TP-Link SM311LS(8-pack) SFP | Set of 8 1000BASE-LX single-mode modules up to 20 km

nuevo

The TP-Link SM311LS (8-pack) SFP module set is designed to extend 1000BASE-LX Gigabit Ethernet connectivity over single-mode fiber up to 20 km , ensuring high performance and stability. Compatible with the SFP-MSA standard and IEEE 802.3z protocols, it integrates the DDM (Digital Diagnostic Monitoring) function to monitor parameters such as optical power and temperature in real time. The hot-pluggable design allows quick installation and replacement without service interruption, offering maximum flexibility for corporate networks, providers and data centers. With FCC and CE certifications, it represents a safe, efficient and professional solution. Omada

Technical Data Sheet

referencia : SM311LS(8-pack)

brand : OMADA

EAN: 8885020622126

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

SM311LS (8-pack) | Mini-GBIC SFP Module Supports Connectivity Up to 20km


Made Omada

The TP-Link SM311LS (8-pack) SFP module set is designed to extend 1000BASE-LX Gigabit Ethernet connections over single-mode fiber up to 20 km, ensuring stability and high performance. Compatible with the SFP-MSA standard and IEEE 802.3z protocols, it offers maximum interoperability. Equipped with DDM for diagnostic monitoring and a hot-pluggable design, it allows for quick installation and replacements without service interruption. FCC and CE certified, it is the ideal solution for enterprise networks and data centers that require reliability and long transmission distances.

Main specifications:

- Pack of 8 SM311LS SFP Modules

- Gigabit 1000BASE-LX connections up to 20 km

- Digital Diagnostic Monitoring (DDM) support

- Hot-Pluggable design for flexible installation

- Compatibility with SFP-MSA and IEEE 802.3z standards

Further details

Max. cable length:
It supports transmission up to 20km over 9/125 μm single-mode fiber, ensuring stable and high-speed connections to meet the needs of LAN and WAN networks.
DDM (Digital Diagnostic Monitoring) :
It integrates digital diagnostic monitoring, which allows for real-time detection of crucial parameters such as optical power, temperature, and voltage, improving preventive network management.
Hot-Pluggable:
The hot-swappable design allows the module to be installed or replaced without interrupting network services, reducing downtime and increasing operational flexibility.
TX Disable Feature:
Includes the ability to deactivate the transmitter when needed, providing greater safety and control in setup and maintenance operations.

Technical data sheet

Model SM311LS
MEDIA CONVERTER & MODULE
Standards & Protocols IEEE 802.3z, TCP/IP
Wavelength 1310 nm
Dimensions (L x W x H) 2.2*0.6*0.5 in (55.4*14.6*12.9 mm)
Diet 3.3V
Safety & Emissions FCC, CE
Cable Single-Mode Fiber
Fiber type 9/125 μm Single-Mode
Max. cable length 20 KM
Data transmission speed 1.25 Gbps
Door type LC Duplex
Hardware Features DDM
SFP-MSA
Hot Swappable
Package Content SFP Module SM311LS (TL-SM311LS)
Installation Guide
Environment Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 10–90% RH, Non-Condensing
Storage Humidity: 5–90% RH, Non-Condensing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
