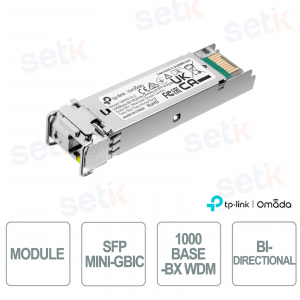

TP-Link SM321A-2 SFP | 1000BASE-BX Bi-Directional WDM Module up to 2 km

TP-Link SM321A-2 SFP | 1000BASE-BX Bi-Directional WDM Module up to 2 km

nuevo

The TP-Link SM321A-2 Bi-Directional WDM SFP module is designed for 1000BASE-BX Gigabit Ethernet connections over single-mode fiber up to 2 km , ensuring stable and reliable performance with speeds of 1.25 Gbps. Equipped with a simplex LC interface, it uses Tx 1310 nm / Rx 1550 nm wavelengths and is compatible with the SFP-MSA standard and IEEE 802.3z protocols. It integrates the DDM (Digital Diagnostic Monitoring) function for real-time monitoring of optical power, temperature and current, facilitating proactive network management. The hot-pluggable design allows quick installation and replacement without service interruption, making it ideal for switches, routers and enterprise servers. FCC and CE certified, it represents a safe and efficient solution for next-generation LAN and WAN networks. Omada

Technical Data Sheet

referencia : SM321A-2

brand : OMADA

EAN: 6935364072933

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

SM321A-2 | 1000BASE-BXWDM BIDIRECTIONAL MINI-GBIC SFP MODULE


Made Omada

The TP-Link SM321A-2 Bi-Directional WDM SFP module is designed for 1000BASE-BX Gigabit Ethernet connections over single-mode fiber up to 2 km, offering stable and reliable performance at 1.25 Gbps. Thanks to the simplex LC interface, it uses the Tx 1310 nm / Rx 1550 nm wavelengths, making it fully compatible with the SFP-MSA standard and IEEE 802.3z protocols. It integrates the DDM (Digital Diagnostic Monitoring) function for real-time monitoring of parameters such as optical power, temperature and current, and features a hot-pluggable design, which allows installation and replacement without service interruption. An ideal solution for switches, routers and servers in enterprise and data center settings.

Main specifications:

- Transmission up to 2 km on 9/125 µm single-mode fiber

- Data rates up to 1.25 Gbps

- Simplex LC interface with WDM technology

- Digital Diagnostic Monitoring (DDM) support

- Hot-Pluggable design for maximum flexibility

Further details

Standard 1000Base-BX:
Compliant with the latest network standards, it guarantees compatibility with the IEEE 802.3z standard and TCP/IP protocols, ensuring high performance and interoperability.
Transmission up to 2 km:
It supports connections on 9/125 µm single-mode fiber with speeds up to 1.25 Gbps, ideal for corporate networks and data centers that need to cover medium to short distances.
Bidirectional WDM technology:
It uses different wavelengths (Tx 1310 nm / Rx 1550 nm) to transmit and receive on a single fiber, optimizing costs and increasing infrastructure efficiency.
DDM (Digital Diagnostic Monitoring) :
It integrates SFF-8472-compliant digital diagnostic monitoring, allowing for real-time monitoring of parameters such as optical power, temperature, and current, improving reliability and predictive network management.

Technical data sheet

Model SM321A-2
MEDIA CONVERTER & MODULE
Standards & Protocols IEEE 802.3z, TCP/IP
Wavelength TX: 1550 nm
RX: 1310 nm
Dimensions (L x W x H) 2.2*0.6*0.5 in (55.4*14.6*12.9 mm)
Diet 3.3V
Safety & Emissions FCC, CE
Cable Single-Mode Fiber
Fiber type 9/125 μm Single-Mode
Max. cable length 2 KM
Data transmission speed 1.25 Gbps
Door type LC Duplex
Hardware Features DDM
SFP-MSA
Hot Swappable
Package Content SM321A-2
Installation Guide
Environment Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 10–90% RH, Non-Condensing
Storage Humidity: 5–90% RH, Non-Condensing
