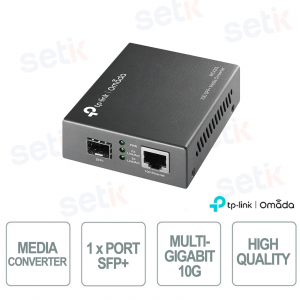

The TP-Link Omada MC420L is an ideal media converter for transforming copper and fiber connections up to 10Gbps, ensuring high speeds and stability for business and professional networks. Compatible with IEEE 802.3an, 802.3ae, and 802.3aq standards, it supports multi- and single-mode SFP+ for long-distance connections, perfect for distributed offices, video surveillance, and industrial automation. Thanks to its compact design and flexible installation on a desktop or MC1400 chassis, it offers reliability and easy management with always-updated status LEDs. With 1G/2.5G/5G/10G auto-negotiating RJ45 ports and a maximum power consumption of only 4.12W, it ensures optimal performance and low energy impact.

Technical Data Sheet

referencia : MC220L

brand : OMADA

EAN: 6935364030476

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

MC220L| OMADA TP-LINK MEDIA CONVERTER 1000BASE-SX/LX/LH1000BASE-T – SINGLE-MODE & MULTIMODE, LC


Made Omada

The TP-Link Omada MC420L is a 10G multi-gigabit media converter designed to ensure stable and fast connections between optical fiber and copper, ideal for enterprise networks, video surveillance, and industrial automation. It supports IEEE 802.3 standards, is compatible with multi- and single-mode SFP modules, and is designed for flexible installations on both desktops and chassis. Thanks to low power consumption and status LEDs, it ensures high performance and real-time monitoring.

Main specifications:

- 1G/2.5G/5G/10G auto-negotiating RJ45 port

- 1 hot-swappable SFP+ slot

- IEEE 802.3an, 802.3ae, 802.3aq compatibility

- Multi/single-mode fiber transmission

- Compact size: 94.5 × 73 × 27 mm

- Maximum consumption: 4.12W

Further details

1G/2.5G/5G/10G Auto-Negotiating RJ45 Port

The device supports both half-duplex and full-duplex modes, optimizing communication based on the network type. Full-duplex mode maximizes performance thanks to simultaneous data transmission and reception, while half-duplex mode ensures compatibility with older devices.
Half-Duplex / Full-Duplex Transfer
With the Digital Diagnostic Monitoring function , you can monitor module status and network parameters (temperature, optical power, current), preventing malfunctions and reducing the risk of downtime.
Hot-swappable FX port
The FX port supports hot-swappable SFP modules, allowing the network to adapt to different distances and fiber types (multi-mode and single-mode) without service interruption. This makes the MC420L extremely versatile for long-haul links and evolving scenarios.

Technical data sheet

Model MC220L
MEDIA CONVERTER & MODULE
Standards & Protocols IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
Basic features Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Maximum transmission distance depends on the inserting SFP module
Doors 1× SFP+ port
1× 1G/2.5G/5G/10Gbps RJ45 port
Wavelength Depends on the used SFP module
Network Media 10GBASE-R Multi-mode/Single-mode SFP+ module
Network Media 10GBASE-T 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m);
10GBASE-T: UTP cat.6(max. 55m), STP Cat. 6 or above(max. 100m)
Dimensions (L x W x H) 3.7*2.9*1.1in. (94.5*73.0*27.0mm)
Diet External Power Adapter
Maximum energy consumption 4.12W
LED PWR, Link/Act
Safety & Emissions UL, RoHS
Package Content MC420L
Power Adapter
Installation Guide
Environment Operating Temperature: 0℃~50℃ (32℉~122℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%RH~90%RH Non-condensing
Storage Humidity: 5%RH~90%RH Non-condensing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
