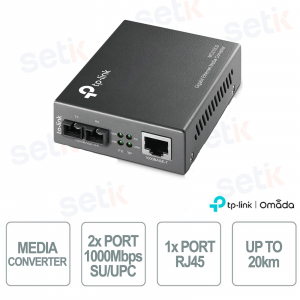

TP-Link MC210CS: Single-Mode Gigabit Media Converter up to 20km

TP-Link MC210CS: Single-Mode Gigabit Media Converter up to 20km

 

The TP-Link MC210CS is a single-mode Gigabit media converter designed to connect fiber optics and copper networks with maximum reliability, ideal for business and professional networks. It features a 10/100/1000Mbps RJ45 port with Auto-MDI/MDIX support and auto-negotiation to automatically adapt to connected devices. Half-Duplex/Full-Duplex management ensures compatibility and optimal performance in any scenario. Compliant with IEEE 802.3ab and IEEE 802.3z standards, it extends fiber optic connections up to 20 km , ensuring stability, speed and reduced packet loss. With a compact design and low power consumption, it represents an efficient and versatile solution for strengthening network infrastructures.

Technical Data Sheet

referencia : MC210CS

brand : OMADA

EAN: 6935364030445

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


MC210CS| OMADA TP-LINK SINGLE MODE GIGABIT MULTIMEDIA CONVERTER


Made Omada

The TP-Link MC210CS is a single-mode Gigabit media converter ideal for connecting fiber optic and copper networks with high performance and reliability up to 20 km. It supports auto-negotiation on 10/100/1000Mbps RJ45 ports with Auto-MDI/MDIX function to simplify installation, as well as Half-Duplex/Full-Duplex management to optimize data transmission. Compliant with IEEE 802.3ab and 802.3z standards, it ensures full compatibility with modern infrastructures, consuming only 1.8W and guaranteeing energy efficiency.

Main specifications:

- RJ45 10/100/1000Mbps port with Auto-MDI/MDIX

- Half-Duplex and Full-Duplex support with auto-negotiation

- Compatibility with IEEE 802.3ab and 802.3z standards

- Single-mode fiber optic connections up to 20 km

- Maximum consumption of only 1.8W, CE, FCC, RoHS certifications

Further details

✅ Standards Compatibility

Compliant with IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z and 802.3x standards, it ensures maximum interoperability with existing devices and networks, guaranteeing reliability and universal compatibility.
✅ Interfaces
It features 2 1000Mbps SC/UPC ports for fiber connections and 1 10/100/1000Mbps RJ45 port for copper cabling, offering flexibility of use in different network scenarios.
✅ Auto-negotiation and Auto-MDI/MDIX
The RJ45 port automatically detects the speed of the connected device and the cable type, eliminating the need for crossover cables and simplifying installation.

✅ Half-Duplex / Full-Duplex Auto-Negotiation
It supports both transmission modes, optimizing performance: in Full-Duplex it allows simultaneous transfers, while in Half-Duplex it guarantees compatibility with older devices.
✅ Fiber optic connections up to 20 km
Thanks to the support for single-mode 9/125 μm fiber and the wavelength of 1310nm, it allows you to extend the network up to 20 km, ideal for connecting buildings, distributed offices and long-distance surveillance systems.

Technical data sheet

Model MC210CS
GENERAL SPECIFICATIONS
Standards & Protocols IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Interface 2 1000Mbps SC/UPC ports
1 10/100/1000Mbps RJ45 port
Ethernet Cable (Twisted Pair) 10BASE-T: 2-pair UTP/STP of Cat. 3,4,5 (≤100 m)
100BASE-TX: 4-pair UTP/STP of Cat. 5e or above (≤100 m)
1000BASE-T: 4-pair UTP/STP of Cat. 5e or above (≤100 m)
Fiber Type 9/125 μm single-mode fiber (≤20 km)
Wave Length 1310nm
Dimensions (W × D × H) 3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm)
Power Supply 9V/0.6A
Max Power Consumption 1.8W
Certification FCC, CE, RoHS
ENVIROMENTAL AND PHYSICAL SPECIFICATIONS
Operating Temperature 0℃~50℃ (32℉~122℉)
Storage Temperature -40℃~70℃ (-40℉~158℉)
Operating Humidity 10%RH~90%RH Non-condensing
Storage Humidity 5%RH~90%RH Non-condensing
