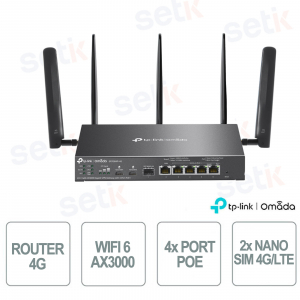

ER706WP-4G | 4G+ CAT6 WIFI 6 AX3000 GIGABIT VPN ROUTER WITH 4 POE+ PORTS - TPLINK OMADA

The TP-Link Omada ER706WP-4G is a next-generation Gigabit VPN gateway that combines power, security, and flexibility for business and professional networks. Featuring 4G+ Cat6 support up to 300 Mbps, AX3000 Wi-Fi 6, and Omada SDN centralized management, it ensures seamless connectivity and advanced performance.
Main specifications:
- 4G+ Cat6: connectivity up to 300 Mbps with dual Nano SIM slot for backup and continuity
- WiFi 6 AX3000: Speeds up to 2402 Mbps (5 GHz) and 574 Mbps (2.4 GHz) for high performance
- Gigabit ports: 1 WAN + 5 WAN/LAN for a stable and versatile network
- PoE+ ports: 4 dedicated outputs with 45W budget to power network devices
- High gain antennas: 5 removable antennas for optimal coverage
- Advanced Management: Omada Mesh Technology, Multiple VPNs and DPI Security
Further details
Technical data sheet
| Model | ER706WP-4G |
| 4G | |
| Network Type | LTE Band of EU:
B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41 |
| Filtering | SIM Type |
| Frequency | Downlink: 300 Mbps; Uplink: 50 Mbps |
| SAFETY | |
| PPE | Application control via DPI / Updated app library |
| IDS/IPS | Signature-based IPS/IDS threat detection |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | WEB Group Filtering§ URL Filtering Web Security§ |
| ARP inspection | Sending GARP Packets§ ARP Scanning§ IP-MAC Binding§ |
| Attack defense | TCP/UDP/ICMP Flood Defense Block TCP Scan (Stealth FIN/Xmas/Null) Block Ping from WAN |
| HARDWARE FEATURES | |
| Interface | 1 Gigabit SFP WAN/LAN Port 1 Gigabit WAN Port 4 Gigabit LAN/WAN Ports |
| Average | 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Key | Reset Button |
| Diet | 4 Ports PoE+ Output, 45W PoE Budget |
| Wi-Fi Frequency & Signal Rate | 2.4 GHz: 574 Mbps 5 GHz: 2402 Mbps (HE160) |
| Flash | 256 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | SYS, WLAN, SFP, LTE1, LTE2, PoE Max, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act, PoE) |
| Dimensions (L x W x H) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) |
| Antenna | Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas LTE: Two 4.0dBi omnidirectional detachable antennas |
| Mounting type | Desktop/Wall-Mounting/Rackmount |
| Max Power Consumption | 64.9W with PoE Max; 19.8W without PoE |
| PERFORMANCES | |
| IPS Throughput | TCP: 229 Mbps UDP: 188 Mbps |
| DPI Throughput | TCP: 933 Mbps UDP: 927 Mbps |
| GRE | Unencrypted: 545.3Mbps Encrypted: 282.6Mbps |
| WireGuard VPN | 387.7Mbps |
| Concurrent sessions | 150,000 |
| New Sessions / Second | 5,100 |
| NAT (Static IP) | 947.1Mbps / 940.1Mbps |
| NAT (DHCP) | 949.2Mbps / 941.1Mbps |
| NAT (PPPoE) | 942.6Mbps / 941.1Mbps |
| NAT (L2TP) | 875.4Mbps / 892.0Mbps |
| NAT (PPTP) | 881.2Mbps / 895.8Mbps |
| IPsec VPN Throughput | ESP-SHA1-AES256: 652.2Mbps ESP-SHA256-AES256: 654.4Mbps ESP-SHA384-AES256: 646.5Mbps ESP-SHA512-AES256: 670.5 Mbps |
| OpenVPN | 115.5Mbps |
| L2TP VPN Throughput | Unencrypted: 990.0Mbps Encrypted: 475.0Mbps |
| PPTP VPN Throughput | Unencrypted: 1177.9Mbps Encrypted: 177.4Mbps |
| SSL VPN Throughput | 122.5Mbps |
| 66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81274 pps / 91275 pps |
| WIRELESS FEATURES | |
| Advanced features | Seamless Roaming Mesh (with EAP that supports Mesh) OFDMA Beamforming MU-MIMO Rate Limit: Based on SSID/Client Airtime Fairness Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise Multiple SSIDs: 16 total (8 per radio) |
| Guest Network |
Support |
| BASIC FUNCTIONS | |
| WAN Connection Type | Static IP Dynamic IP PPPoE (supports MRU Configuration) PPTP L2TP |
| MAC clone |
Modify WAN Address |
| DHCP | DHCP Server DHCPv6 PD Server DHCP Options Customization DHCP Address Reservation Multi-net DHCP Multi-IP Interfaces |
| SMS | Receive / Send SMS |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FEATURES | |
| Access Control | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | Static Routing Policy Routing RIP OSPF |
| Bandwidth control | IP-Based Bandwidth Control |
| Load balance | Intelligent Load Balance Application Optimized Routing Link Backup (Timing, Failover) Online Detection |
| NAT | One-to-One NAT Multi-Net NAT Virtual Server Port Triggering§ NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG UPnP |
| Session Limit | IP-based Session Limit |
| VPN | |
| GRE |
Only in Standalone Mode |
| SSL VPN |
50 Tunnels |
| IPsec VPN |
100 IPSec VPN Tunnels |
| PPTP VPN | PPTP VPN Server PPTP VPN Client (10) 50 Tunnels PPTP with MPPE Encryption |
| L2TP VPN | L2TP VPN Server L2TP VPN Client (10) 50 Tunnels L2TP over IPSec |
| OpenVPN | OpenVPN Server OpenVPN Client (5) 55 OpenVPN Tunnels "Certificate + Account" Mode Full Mode |
| WireGuard VPN | 20 Tunnels |
| Authentication | |
| Web Authentication | No Authentication Simple Password Hotspot (Local User / Voucher§ / SMS§ / Radius§) External Radius Sever External Portal Server§ LDAP |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management |
Omada Cloud-Based Controller |
| Cloud Access | Yes |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | Web Management Interface Remote Management Export & Import Configuration Diagnostics (Ping & Traceroute) NTP Synchronize§ Port Mirroring CLI (only in Standalone Mode) Syslog Support TR-069 (data models of TR-098 and TR181 are supported) |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | Automatic Device Discovery Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule Captive Portal Configuration |
| OTHER | |
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) Port: 80/443 Protocol: TCP TDP Server Device discovery Port: 20003 Protocol: UDP DHCP Server Handle DHCP packets Port: 67 Protocol: UDP DNS Handle DNS packets Port: 53 Protocol: TCP/UDP |
| OTHER | |
| Certification | CE, FCC, RoHS |
| Package Contents |
ER706WP-4G |
| System requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature: -40–70℃ (-40–158℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
