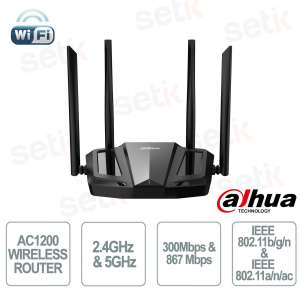

Dahua AC12 AC1200 Wi-Fi Router: 1.2Gbps Speed, Extended Coverage, and Intelligent Control

Dahua AC12 AC1200 Wi-Fi Router: 1.2Gbps Speed, Extended Coverage, and Intelligent Control

-57% nuevo

AC12 - This wireless router offers fast connections up to 1.2 Gbps thanks to AC1200 dual-band technology and Gigabit ports, ideal for streaming, gaming, and smart homes. With extended Wi-Fi coverage via beamforming and MU-MIMO, it ensures a stable signal and high performance. Intelligent management with the WiLynk app allows for simple setup, parental controls, and a guest network. Compact and versatile design for home, office, and retail, with WPA/WPA2 security and fast firmware updates. The perfect solution for those seeking speed, security, and advanced network control. Dahua

Technical Data Sheet

referencia : AC12

brand : Dahua

EAN: 6923172557315

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

AC12 | AC1200 WIRELESS ROUTER


Dahua

The Dahua AC12 wireless router guarantees fast and stable connections up to 1.2 Gbps with AC1200 dual-band technology and Gigabit ports for seamless streaming and gaming. Thanks to beamforming and MU-MIMO, it offers extensive Wi-Fi coverage and a strong signal. Management is easy via the WiLynk app, which allows parental controls, guest networking, and advanced configurations in just a few taps.

Main specifications:

- Wi-Fi speed up to 1.2 Gbps (300 Mbps @2.4 GHz + 867 Mbps @5 GHz)

- Gigabit ports for fast and stable transfers

- Beamforming and MU-MIMO technology for powerful signal

- Advanced security with WPA/WPA2

- Smart management via WiLynk app with parental control and guest network

Further details

Ultra-fast wired connections:
Equipped with Gigabit ports (1xWAN and 3xLAN) that ensure data transfer speeds of up to 1000 Mbps, it's ideal for high-definition streaming, online gaming, and devices that require stability and consistent speed. The internal memory with a large buffer can handle large data flows without slowing down.
High-performance and stable wireless network:
Based on the 802.11ac standard , it offers simultaneous dual-band connectivity: 2.4 GHz at 300 Mbps for browsing and smart devices, and 5 GHz at 867 Mbps for interference-free streaming and online gaming. This combination ensures wide coverage and optimal speed in different environments .
Simple and complete control:
Easily manageable via the WiLynk app , which allows you to configure the network, monitor connected devices, enable parental controls, and create guest networks. It includes advanced features such as Wi-Fi sharing, fast firmware updates, and real-time monitoring for enhanced security .
Wi-Fi speed up to 1.2 Gbps :
It supports combined speeds of up to 1.2 Gbps (300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz), ensuring 4K streaming, stable video calls, and fast downloads. Integrated technologies like Beamforming and MU-MIMO improve coverage and distribute the signal efficiently even with multiple connected devices.

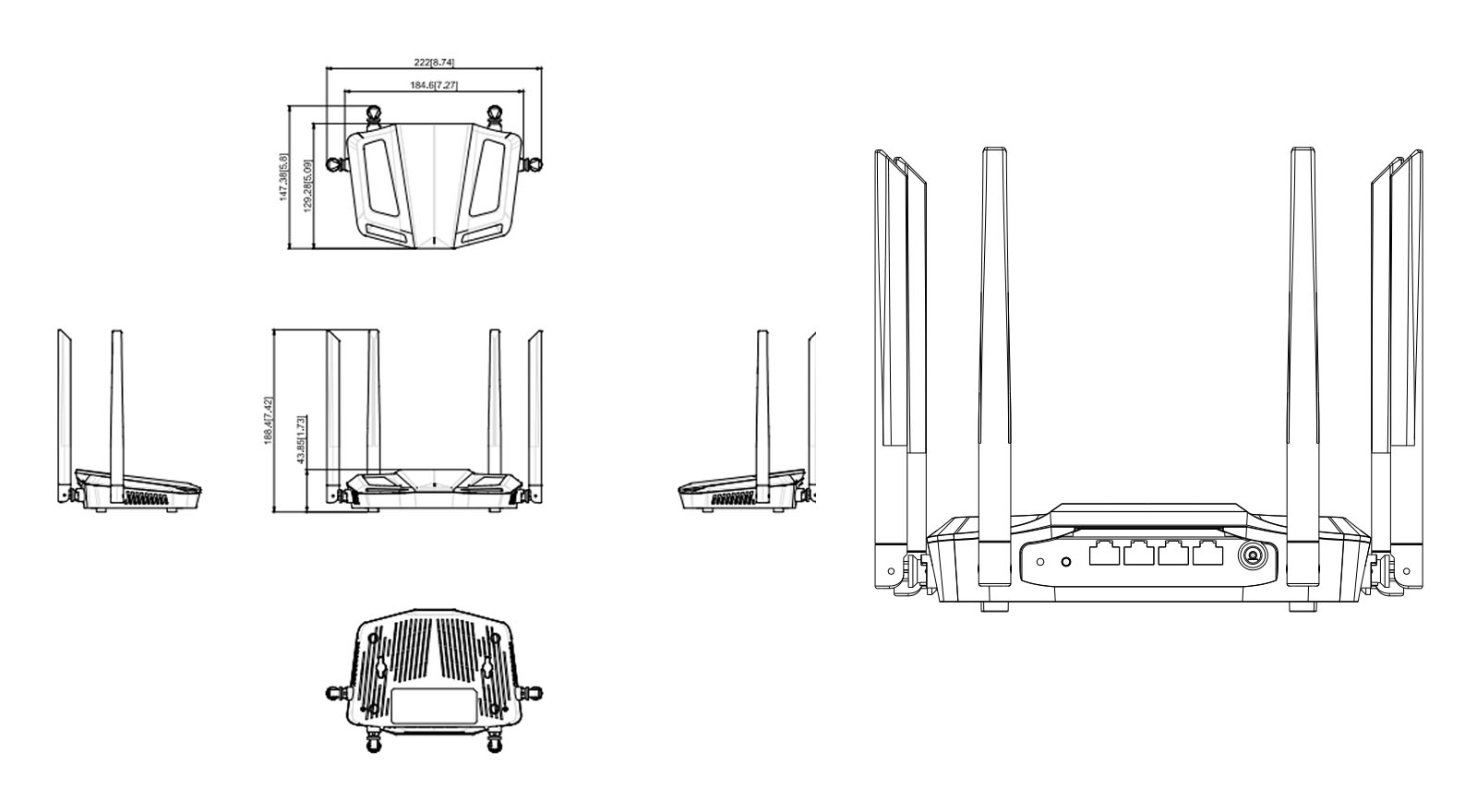

AC12 dimensions

Technical data sheet

Model AC12
Hardware
Function Slots

1×10/100/1000 Mbps WAN Port
3 × 10/100/1000Mbps LAN Port

External Port

No

Button

1×eSync Button
1×Reset Button

Power Supply

12 VDC,1 A

Memory

DDR 64 MB

Indicator Light

1 × SYS

Performance

Wireless Standard

2.4 GHz: IEEE 802.11b/g/n
5 GHz: IEEE 802.11a/n/ac

Wireless Transmission Rate

2.4GHz:300Mbps
5 GHz: 867 Mbps

Operating Frequency

2.4 GHz: 2.400 GHz–2.484 GHz
5 GHz: 5.150 GHz–5.850 GHz

Channel Width

2.4 GHz: 20/40MHz
5 GHz: 20/40/80 MHz

Max. Output Power

CE EIRP:
≤20 dBm@2400-2483.5 MHz
≤23 dBm@5150-5250 MHz
≤20 dBm@5250-5350 MHz
≤27 dBm@5470-5725 MHz
≤14 dBm@5725-5850 MHz

Transmission Distance

15 m (49.21 ft)

Optimal Transmission Distance

7 m (22.97 ft)

Connected Wireless Terminals

2.4GHz:32
5 GHz: 32

Function

Equipment Management

WEB; App

Network Protocol HTTP;HTTPS;TCP/IP;IPv4;UDP;NTP;DHCP;DNS;IPv6;ICMP;ARP;TCP;WMM;802.11b;802.11g;802.11n;MAC Filter;802.11ac;802.11a
Network Access PPPoE; Dynamic IP; Static IP
Operating Mode Wireless Router Mode
Wireless Relay Mode (Client+AP)
Encryption Mode WPA; WPA2; WPA3; WPA/WPA2; WPA2/WPA3
Security Mechanism MAC filtering; HTTPS
OFDMA Yes
MU-MIMO Yes
DHCP Yes
NAT Port mapping
VPN No
QoS No
DDNS No
MESH No
Firmware Update Web update
Software Device Management: Quick Setup Wizard; System Management; System Log; Factory Reset; Backup Config; Config Restore; DMZ; Port Mapping; Diagnosis&Restart; Smart Control of LED RF Management: Wireless mode settings; Wireless bandwidth settings; Wireless channel settings; Transmission power settings; SSID Broadcast
Network Type: Guest Wi-Fi; Wi-Fi host; Dual-band 2.4/5G; Wireless timing;
End Device Management: WLAN MAC address filtering; Parental Controls; End Device Name Config
General
Power Consumption

Full load: 10.5 W
Idling: 2.1 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

10%–90% (RH), non-condensing

Net Weight

0.26 kg (0.57 lb)

Gross Weight

0.7 kg (1.54 lb)

Product Dimensions

220 mm × 144 mm × 179 mm (8.66" × 5.67" × 7.05") (L × W × H)

Packaging Dimensions

292 mm × 259 mm × 70 mm (11.50" × 10.20" × 2.76") (L × W × H)

Statics Protection

Air discharge: 8 kV
Contact discharge: 4 kV

Lightning Protection

Common mode: 2 kV
Differential mode: 1 kV

Installation

Desktop mount; wall mount

Certifications

THERE IS

Packing List

1 × Device
1 × Power Adapter
1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Network Cable

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
