Dahua AX15M AX1500 Wi-Fi 6 Router: 1.5 Gbps Speed and WPA3 Security

Dahua AX15M AX1500 Wi-Fi 6 Router: 1.5 Gbps Speed and WPA3 Security

-57% nuevo

AX15M - is a wireless router offering ultra-fast connectivity up to 1.5 Gbps thanks to sixth-generation Wi-Fi 6 technology, ideal for streaming, gaming and environments with many connected devices. Equipped with advanced WPA3 encryption , it guarantees maximum protection against cyber attacks and a secure connection. It integrates smart functions via the WiLynk app for simple management, parental control, guest network and rapid updates. OFDMA and MU-MIMO technology reduces latency and improves signal stability even in the presence of heavy traffic. Furthermore, energy consumption is optimized thanks to the Target Wake Time function, which extends the battery life of connected devices. Perfect for modern homes, shops and offices that require stable and high-performance connections. Dahua

Technical Data Sheet

referencia : AX15M

brand : Dahua

EAN: 6923172562425

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

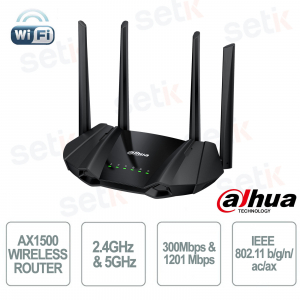

AX15M | AX1500 WIRELESS ROUTER


Dahua

The Dahua AX15M wireless router offers next-generation performance with Wi-Fi 6 technology and speeds of up to 1.5 Gbps, ensuring stable and smooth connections even with many connected devices. Advanced WPA3 security protects the network from cyber attacks, while intelligent management via the WiLynk app simplifies setup and control. Designed for modern homes, offices, and shops, it ensures fast transmission, low latency, and reduced power consumption by up to 30% thanks to Target Wake Time technology.

Main specifications:

- Wireless speed up to 1.5Gbps (300Mbps at 2.4GHz + 1201Mbps at 5GHz)

- Wi-Fi 6 with MU-MIMO and OFDMA for stable, low-latency connections

- Advanced WPA3 security against attacks and intrusions

- Smart management with WiLynk app: guest network, parental control and quick updates

- TWT energy efficiency for longer device battery life

Further details

Connection ports:
Equipped with 1 Gigabit WAN port and 2 Gigabit LAN ports , the DH-AX15M delivers wired data transfer speeds of up to 1000 Mbps, ideal for high-definition streaming, lag-free gaming, and devices that require stable connections.
WPA3 Encryption — Maximum network security:
It uses advanced WPA3 encryption with 192-bit CNSA algorithm , protecting the network from brute force attacks and ensuring greater privacy and resistance against intrusions and cyber threats.
Intelligent energy efficiency:
Thanks to the Target Wake Time (TWT) function, the router reduces power consumption by up to 30%, allowing connected devices to extend battery life and optimize network usage without waste.
AX1500 Dual-band Wi-Fi :
With dual-band Wi-Fi 6 support (300 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz), it ensures high speeds, less interference and wider coverage even in environments with many connected devices.
Intelligent Management:
Advanced management via the WiLynk app , which allows quick setup, parental controls, guest network creation and instant firmware updates for a network that is always secure and under control .
High Speed and Low Latency :
It integrates MU-MIMO, OFDMA and BSS Coloring technologies that reduce latency and increase signal efficiency, making the browsing and streaming experience smoother even with multiple users connected simultaneously.

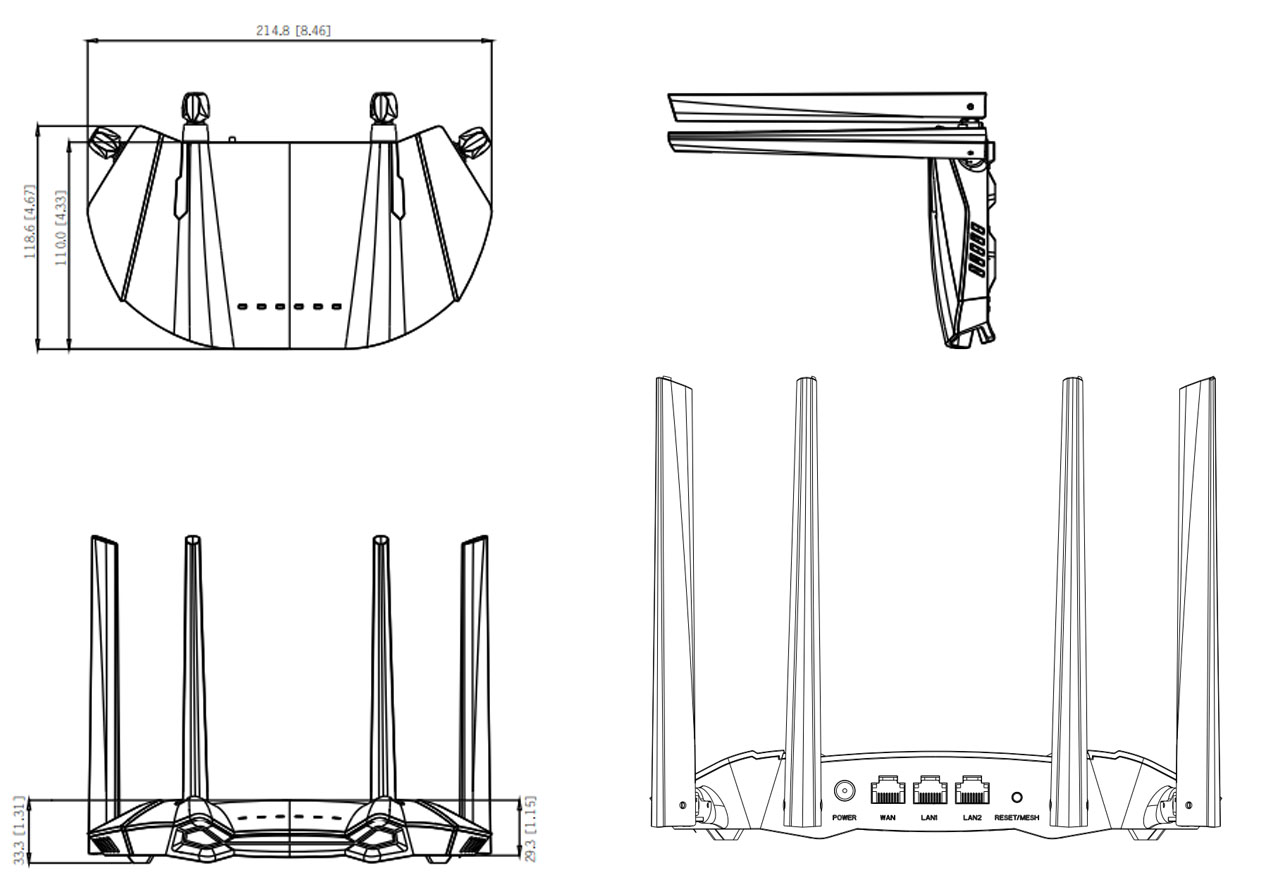

AX15M dimensions

Technical data sheet

Model AX15M
Hardware
Function Slots

1 × 10/100/1000Mbps WAN
2 × 10/100/1000Mbps LAN

Power Consumption

Indicator Light

1 × WPS
1 x 5GHz, 1 x 2.4GHz
1 × LAN
1 × Internet
1 × PWR

Button

1 × Reset/WPS button

Wireless Standard

2.4 GHz: 802.11 b/g/n
5 GHz: 802.11 a/n/a/ac/ax

Performance

Operating Frequency

2.412 GHz–2.484 GHz
5.150 GHz–5.850 GHz

Wireless Transmission Rate

2.4GHz:300Mbps
5 GHz: 1201 Mbps

Channel Width

20/40/80 MHz

Max. Output Power

CE EIRP:
≤20 dBm@2400-2483.5 MHz
≤23 dBm@5150-5250 MHz
≤23 dBm@5250-5350 MHz
≤27 dBm@5470-5725 MHz
≤14 dBm@5725-5850 MHz

Antenna Gain

2.4GHz: 5dBi (±0.5)
5GHz: 5dBi (±0.5)

Receiver Sensitivity

2.4 GHz
11n HT20_MCS0: -95 dbm
11n HT20_MCS7: -75 dbm
11n HT40_MCS0: -92 dbm
11n HT40_MCS7: -72 dbm
5 GHz
11ac VHT80_MCS0: -89 dbm
11ac VHT80_MCS9: -62 dbm
11ax HE80_MCS0: -89 dbm
11ax HE80_MCS11: -59 dbm

Connected Wireless Terminals

2.4GHz:1-13
5 GHz: 36/40/44/48,52/56/60/64,149/151/153/157/161/165

Function

Encryption Mode

WPA-PSK
WPA2-PSK
WPA3-AES
WPA/WPA2-PSK
WPA2-PSK/WPA3-AES

Management and Log NTP; Syslog
Firmware Update Web/WiLynk App update
OFDMA Yes
MU-MIMO 2 x 2
DHCP Yes
NAT Port-based mapping
QoS Yes
DDNS Yes
Parental Controls Yes
Equipment Management Web/WiLynk App
General
Power Supply

12 VDC,1 A

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

10%–90% (RH), non-condensing

Net Weight

0.26 kg (0.57 lb)

Gross Weight

0.56 kg (1.23 lb)

Product Dimensions

321 mm × 257 mm × 76 mm(12.63" × 10.11" × 2.99") (L × W × H)

Packaging Dimensions

215 mm × 119 mm × 173 mm (8.46" × 4.67" × 6.81") (L × W × H)

Statics Protection

Air discharge: 8 kV
Contact discharge: 4 kV

Lightning Protection

Common mode: 2.5 kV
Differential mode: 0.5 kV

Installation

Desktop mount

Packing List

1 × Device
1 × Power Adapter
1 × Network Cable
1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Frequency Band Information
1 × Warranty Card
1 × Product Information QR Code

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
