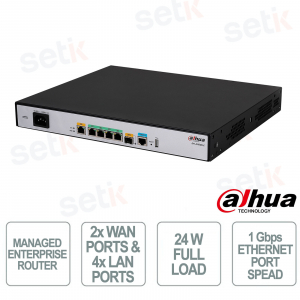

AR506-E | L3 MANAGED ENTERPRISE ROUTER


Dahua

The Dahua AR506-E enterprise router provides stable and secure gigabit connectivity, ideal for businesses, schools, and public offices. Thanks to its powerful multi-core CPU and advanced security features, it ensures high performance, data protection, and 24/7 business continuity. Perfect for managing complex networks and creating reliable VPNs with simplified management.

Main specifications:

- 2 WAN ports, 4 Gigabit LAN ports and Multi-WAN support

- Advanced protection with firewall, URL filtering and anti-DDoS

- IPSec and L2TP VPN for secure remote connections

- Centralized management via SNMP, SSH and Telnet

- High reliability architecture for continuous use

Further details

Connection ports:
Equipped with 2 Gigabit WAN ports, 4 LAN ports configurable as WAN, 2 USB 2.0 and 1 Console port, it offers great flexibility for complex business networks and the ability to expand and redundant connections.
Multi-WAN Load Balancing :
It supports multiple load balancing methods across multiple WAN connections, optimizing bandwidth distribution based on destination IP, link capacity, and custom rules. This ensures more stable connections and intelligent traffic management.
Network Security Control:
Includes advanced security tools such as HTTP/HTTPS URL filtering, site blacklisting and whitelisting, DDoS protection, and granular bandwidth control. It allows you to define limits and rules for safe and controlled network use .
VPN Tunnel :
It offers support for secure VPN protocols (IPSec, L2TP) and multiple encryption algorithms to create reliable virtual private networks and protect corporate data during transmission over the internet. Ideal for remote offices and remote working.
Continuous operation 24/7 :
Thanks to its robust and highly reliable architecture, the router ensures constant operation without interruptions, guaranteeing the continuity of network services even in critical contexts .

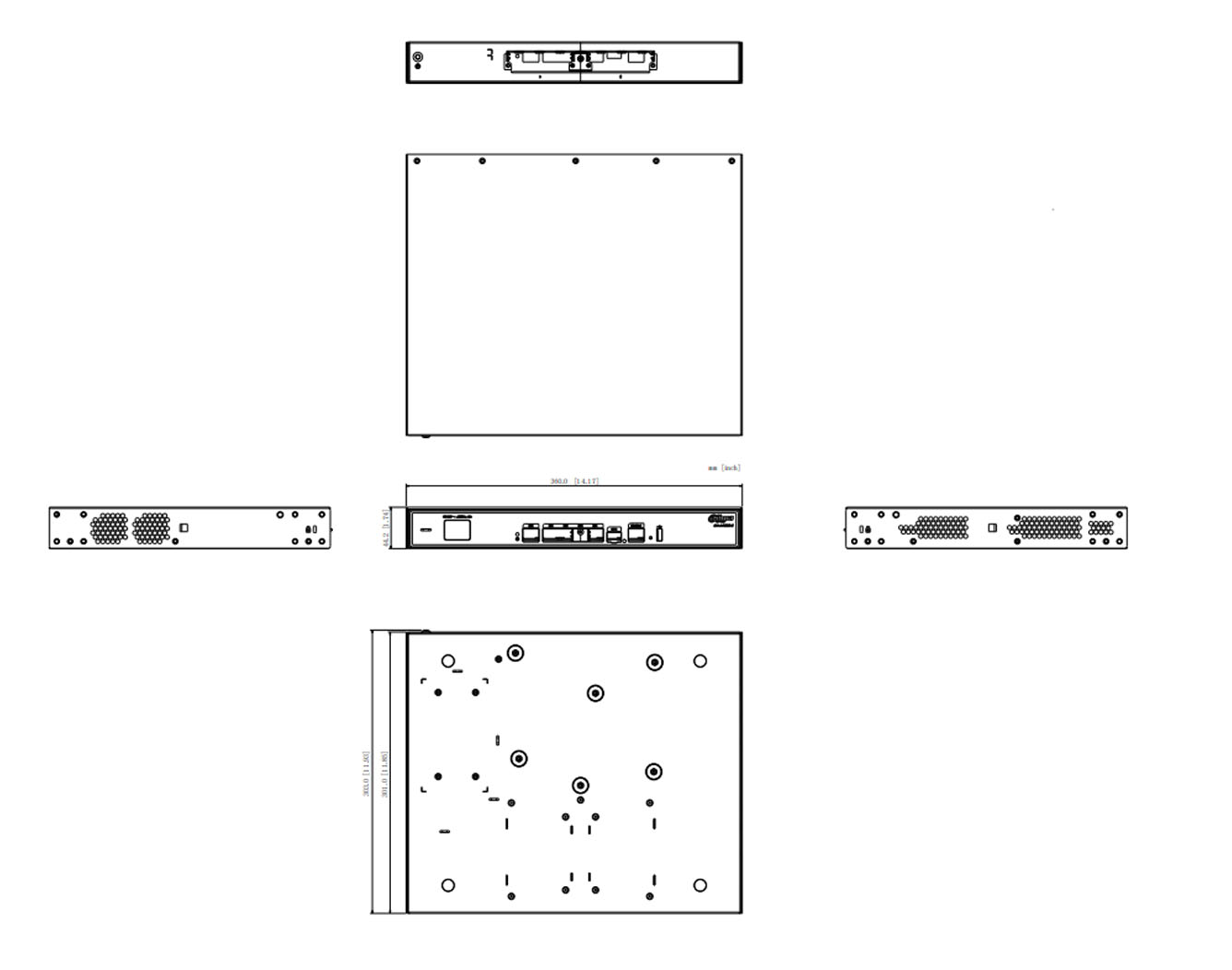

AR506-E dimensions

Technical data sheet

Model AR506-E
Hardware
Ethernet Port Speed

1 Gbps

Description of Function Slots

GE 0: 1 × RJ-45 10/100/1000 Mbps (WAN)
GE 1-3: 4 × RJ-45 10/100/1000 Mbps (LAN, can be configured as WAN ports)
SFP 5: 1 × SFP 10/100/1000 Mbps (WAN)

Debugging

1 × USB 2.0
1 × Console

Power Supply

Built-in power supply: 100–240 VAC, 50/60 Hz

Operating Temperature

0 °C to +45 °C (+32 °F to +113 °F)

Operating Humidity

5%–95% (RH)

Power Consumption

Full load: 24 W

Performance

Management Type

Yes

MTBF

50,000 hours

Dynamic ARP

4000

Reliability
Reliability

LDP, Static LSP; L3VPN: Multiprotocol MPLS VPN (Option 1/2/3), nested MPLS VPN, hierarchy of PE (HoPE), CE dual-homing, MCE, multi-role host and more;
L2VPN: Martini, Kompella, CCC, and SVC;
MPLS TE, RSVP TE;
VRRP, VRRPv3;
Multi-link for load balancing and backup;
Association between NQA and routing/VRRP/interface backup, and it realizes end-to-end link detection and backup

Security
Security

PORTAL, 802.1x;
Local authentication, RBAC, RADIUS, TACACS+;
ASPF, ALC, FILTER, domain-based firewall, connections restriction, IPS;
IKE/IPSec VPN, ADVPN, GDVPN, L2TP VPN, GRE VPN;
NAT/NAPT, PKI, RSA, URPF;
DDoS attack prevention, ARP anti-attack, URL filtering;
Endpoint Admission Defense (EAD);
Deep Packet Inspection (DPI), which limits speed and filters data traffic

Management & Maintenance
Equipment Management

SNMP v1/v2c/v3, TR069, SYSLOG, RMON;
Telnet, SSHv1.5/2.0, FTP;
Embedded Automation Architecture (EAA)
CLI management, file system management, Dual Image;
NQA tests based on DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, and SNMP

General
Product Dimensions

360 mm × 300 mm × 44.2 mm (14.17" × 11.81" × 1.74") (L × W × H)

Packaging Dimensions

500 mm × 390 mm × 118 mm (19.68" × 15.35" × 4.65") (L × W × H)
