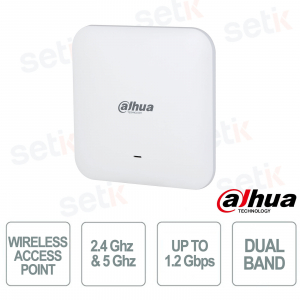

EAP5212-C | INDOOR WIRELESS ACCESS POINT


Dahua

The Dahua EAP5212-C Wi-Fi Access Point guarantees fast and stable connections up to 1.2 Gbps, perfect for hotels, offices, and commercial environments. Equipped with MU-MIMO and concurrent dual-band (2.4 and 5 GHz) technology, it ensures wide coverage without dead zones and seamless roaming for a seamless experience. Ceiling- or wall-mounted, it integrates remote management tools via the DoLynk Care platform and offers advanced 24/7 security to protect devices and business data.

Main specifications:

- Speeds up to 1.2 Gbps with dual-band 2.4/5 GHz Wi-Fi

- MU-MIMO technology and transparent roaming

- Remote management via DoLynk Care cloud platform

- Flexible ceiling or wall installation with PoE

- Advanced security with WPA3, IP and MAC filters

Further details

Seamless Roaming:
It allows you to move freely between different areas while maintaining a stable and continuous connection, without interruptions or reconnections.
Wide Coverage :
Thanks to the high-gain antennas, it covers large internal surfaces, eliminating dead spots and ensuring a strong signal in every corner.
Dual-Band Wi-Fi:
It supports 2.4 GHz and 5 GHz networks simultaneously , allowing you to manage multiple devices with optimal performance and flexibility of use .
One Network:
Easily integrate data network and video surveillance into a single system, simplifying management and improving infrastructure efficiency .
Quick Deployment :
Quick and easy installation thanks to PoE support and a compact design for ceiling or wall mounting.
Efficient Maintenance:
Intuitive management and monitoring via DoLynk Care cloud platform , with advanced remote control and update functions .
Security Guarantee:
24/7 network protection with WPA/WPA2/WPA3 encryption, IP and MAC filters to prevent unauthorized access and keep your data safe .

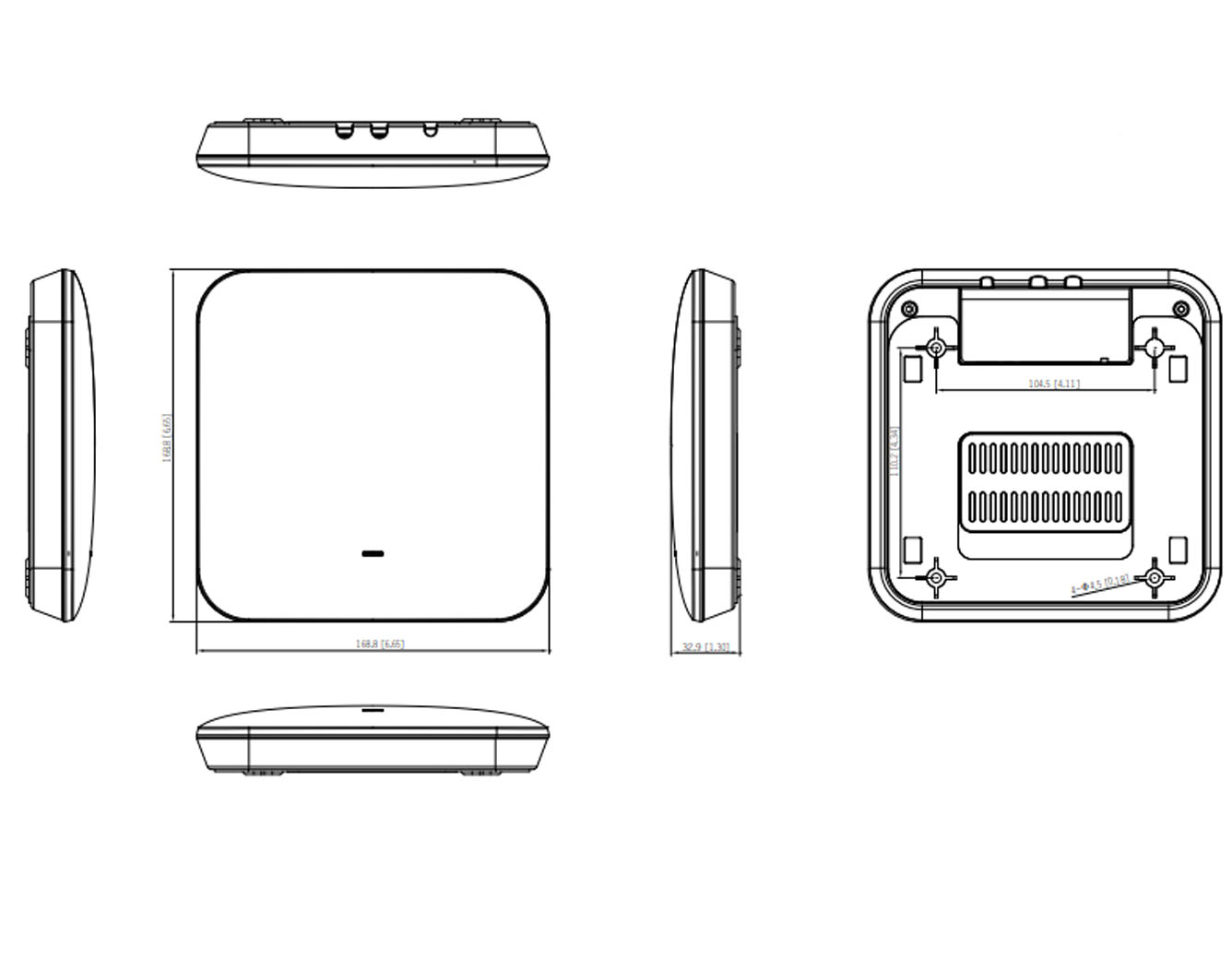

EAP5212-C dimensions

Technical data sheet

Model EAP5212-C
Basic
Device Type

AP

Hardware
WAN Port

1 × 10/100/1000 Mbps Base-T (PoE In)

LAN Port

1 × 10/100/1000 Mbps Base-T

Power Supply

12V DC,1.5A;
802.3af PoE;
802.3 at PoE;

Antenna Type

Omnidirectional

Built-in Antenna

2.4 GHz: 2 × 4.6 dBi;
5 GHz: 2 × 4.0 dBi

Memory

DDR: 128 MB

Indicator Light SYS; WAN/PoE; LAN
Performance
Wireless Standard 2.4 GHz: IEEE 802.11b/g/n;
5 GHz: IEEE 802.11a/n/ac
Wireless Transmission Rate 2.4 GHz: 300 Mbps;
5 GHz: 867 Mbps
Operating Frequency 2.4 GHz: 2.400 GHz–2.484 GHz;
5 GHz: 5.150 GHz–5.850 GHz
Channel Width 2.4 GHz: 20/40 MHz;
5 GHz: 20/40/80 MHz
2.4 GHz Antenna Gain 4.6 dBi
5 GHz Antenna Gain 4.0 dBi
Max. Output Power CE EIRP:
≤20 dBm@2400-2483.5 MHz;
≤23 dBm@5150-5250 MHz;
≤23 dBm@5250-5350 MHz;
≤27 dBm@5470-5725 MHz;
≤14 dBm@5725-5850 MHz
FCC output power:
≤27 dBm@2400-2483.5 MHz;
≤24 dBm@5150-5250 MHz;
≤24 dBm@5250-5350 MHz;
≤24 dBm@5470-5725 MHz;
≤30 dBm@5725-5850 MHz
2.4 GHz Max Power Output 20 dBm
5 GHz Max Power Output 22 dBm
Receiver Sensitivity

2.4 GHz
802.11b 11M: -85 dBm;
802.11b 1M: -94 dBm;
802.11g 54M: -72 dBm;
802.11g 6M: -90 dBm;
802.11n 20MHz MCS0: -88 dBm;
802.11n 20MHz MCS7: -70 dBm;
802.11n 40MHz MCS0: -86 dBm;
802.11n 40MHz MCS7: -68 dBm;
5 GHz:
802.11a 54M: -72 dBm;
802.11a 6M: -90 dBm;
802.11n 20MHz MCS0: -88 dBm;
802.11n 20MHz MCS7: -70 dBm;
802.11n 40MHz MCS0: -86 dBm;
802.11n 40MHz MCS7: -68 dBm;
802.11ac 80MHz MCS0: -85 dBm;
802.11ac 80MHz MCS9: -58 dBm

Max. Transmission Distance 20 m (65.62 ft)
Optimal Transmission Distance 15 m (49.21 ft)
SSID Number 2.4 GHz: 4;
5 GHz: 4
Connected Wireless Terminals 2.4 GHz: 50;
5 GHz: 50
PoE PoE In: 802.3af (15W/30W)

Function

Equipment Management

Web; platform; app

Network Protocol

TCP/IP;IPv4;UDP;NTP;DHCP;DNS;QoS;ICMP;ARP;IP Filter;TCP;SMB;NFS;MQTT;802.11k;802.11v;802.11e;WMM;IGMP V3

Operating Mode

FIT AP
FAT AP
Gateway mode

Encryption Mode

No Encryption
WPA/WPA2PSK; WPA2/WPA3PSK

Firmware Update

Web update; AC remote update

Security Mechanism

IP address filtering; MAC address filtering

MU-MIMO Yes
Beamforming

Yes

DHCP

Gateway way mode support

NAT

Gateway way mode support

QoS

Yes

Software

Device Management: setup wizard; network connection method; back up/restore configuration;
restore factory defaults; schedule restart; system logs; change password; firmware upgrade; system time; fat/fit mode; cloud platform configuration
AP Management: Wi-Fi settings; VLAN ID configuration; frequency configuration; country/region configuration; 5G-Prior access configuration; scheduled Wi-Fi shutdown
Client Management: MAC ACL; user isolation; limit users that can access

Function

Power Consumption

Full load: 10 W;
Idling: 4 W

Operating Temperature

-20 °C to +45 °C (-4 °F to +113 °F)

Storage Temperature

-40 °C to +70 °C (-40 °F to +158 °F)

Operating Humidity

5%–95% (RH), non-condensing

Net Weight

0.36 kg (0.79 lb)

Gross Weight

0.71 kg (1.56 lb)

Product Dimensions 168 mm × 168 mm × 32 mm (6.61" × 6.61" × 1.26") (L × W × H)
Packaging Dimensions

243 mm × 253 mm × 76 mm (9.57" × 9.96" × 2.99") (L × W × H)

Statics Protection

Air discharge: 8 kV;
Contact discharge: 6 kV

Lightning Protection

Common mode: 2 kV;
Differential mode: 1 kV

Installation

In-ceiling mount; wall mount

Certifications

THERE IS

Packing List

1 × Device;
4 × Screws;
1 × User Manual;
1 × Network Cable;
1 × Bracket
