EAC10-P | WIRELESS CONTROLLER

The Dahua EAC10-P is a 10-port PoE wireless access controller designed for SMB enterprise networks. It integrates gateway and AP management functions, ensuring intelligent Wi-Fi connectivity, fast roaming, and 24/7 security. It offers advanced traffic control, multi-WAN support, and automatic access point configuration, reducing costs and simplifying network management.
Main specifications:
- 10 Gigabit PoE ports (64W total)
- Multi-WAN support and advanced QoS
- Centralized Management AP EAP Series
- Fast roaming and automatic configuration
- WPA3 security, VLAN, L2TP/PPTP VPN
- Compatibility with IEEE 802.11 a/b/g/n/ac/ax standards
Further details

Technical data sheet
| Model | EAC10-P |
| Hardware | |
| PoE Power Supply |
Yes |
| PoE Power |
Full load: 64 W |
| Ethernet Port |
10 |
| Ethernet Port Speed |
10/100/1000 Mbps |
| Description of Function Slots |
Port 1-8: 8 × 10/100/1000Base-T RJ-45/PoE Out |
| LAN Port |
9 × 1000Mbps (1 LAN port can be switched to WAN port) |
| WAN Port |
1 × 1000 Mbps |
| Reset Button |
1 |
| Power Supply |
External power supply: 54 VDC, 1.33 A |
| Operating Temperature |
0 °C to +45 °C (+32 °F to +113 °F) |
| Power Consumption |
Idling: 8 W |
| Protection |
IP20 |
|
Function |
|
| 802.11 LAN Protocols | 802.11n;802.11b;802.11ax;802.11a;802.11g;802.11ac |
| CAPWAP | Layer 2 network topology between an AP and AC Enable an AP to automatically discover an accessible AC Enable an AP to automatically download configurations from an AC |
| Roaming | Intra-AC roaming |
| Forwarding | Local forwarding Centralized forwarding |
| Wireless QoS | AP-based bandwidth control WLAN-based bandwidth control User-based static and smart speed control Fair balancing |
| User Isolation | WLAN-based user isolation |
| User Management | Access control based on SSID user number |
| RF Management | Country code configuration Manual configuration of transmitting power Manual configuration of working channel Automatically allocation of working channel Scheduled reallocation of wireless channel |
| PoE Protocol | IEEE 802.3af |
| WAN Port Function | Dynamic IP Static IP PPPoE IP/Mask configuration MTU configuration TCP MSS configuration Network bandwidth configuration Gateway address assignment NQA configuration to probe address |
| Multi-WAN Load Balancing | Distributing network traffic equally Ratio load balancing Multi-link for load balancing |
| Link Detection | Enable and disable link detection ICMP probe TCP probe |
| IP Routing | Static routing Policy-based routing |
| VPN | L2TP VPN PPTP VPN |
| DHCP Function | DHCP Server DHCP Client |
| Security | Portal Authentication PPPoE Authentication IP/MAC Authentication IP/MAC Binding Intranet Anomaly Detection Intranet Attack Protection WAN Ping Forbid Virtual AP Multiple SSIDs SSID Hiding WPA/WPA2 WPA3 WEP (WEP/WEP128) TKIP |
| QoS/ACL | Traffic supervision Congestion management Congestion avoidance Traffic shaping IP-based speed limit Traffic classification |
| Equipment Management | Web Management TFTP FTP NTP System Log Ping |
|
Performance |
|
| Default Number of Manageable APs | 10 |
| Maximum Number of Manageable APs | 10 |
| Maximum Number of Configurable APs | 10 |
| Users Capacity | 1K |
| Firewall | 500 Mbps |
| Encryption | 500 Mbps |
| Forwarding Capability | 500 Mbps |
| CPU Frequency | 880 MHz |
| Processor | Dual core |
| MTBF | 40,000 hours |
| Memory | 256 MB |
| Flash | 16 MB |
| Packet Buffer Size | 2 MB |
| MAC Address List | 1024 |
| Entries of MAC Address Filtering Table | 32 |
| IPv4 Forwarding | 1 Gbps |
| Static Routes | 200 |
| Max. Number of Static DNS Records | 256 |
| Max. Number of DDNS Records | 4 |
| Static ARP | 1K |
| Dynamic ARP | 2K |
| ACL | 1K |
| L2TP Users | 128 |
| Max. Number of Tunnels | 128 |
| Max. Number of Sessions | 128 |
| Max. Number of Concurrent Connections | 200K |
| New Connections | 6K |
| Max. Number of Virtual Servers | 100 |
| Max. Number of Port Triggering | 20 |
| Aging Time of Port Triggering | 10 min |
| NAT Number | 30 |
| General | |
| Operating Temperature | –20 °C to +55 °C (–4 °F to +131 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to 158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lighting Protection | Common mode: 2 kV |
| Net Weight | 0.46 kg (1.01 lb) |
| Gross Weight | 0.98 kg (2.16 lb) |

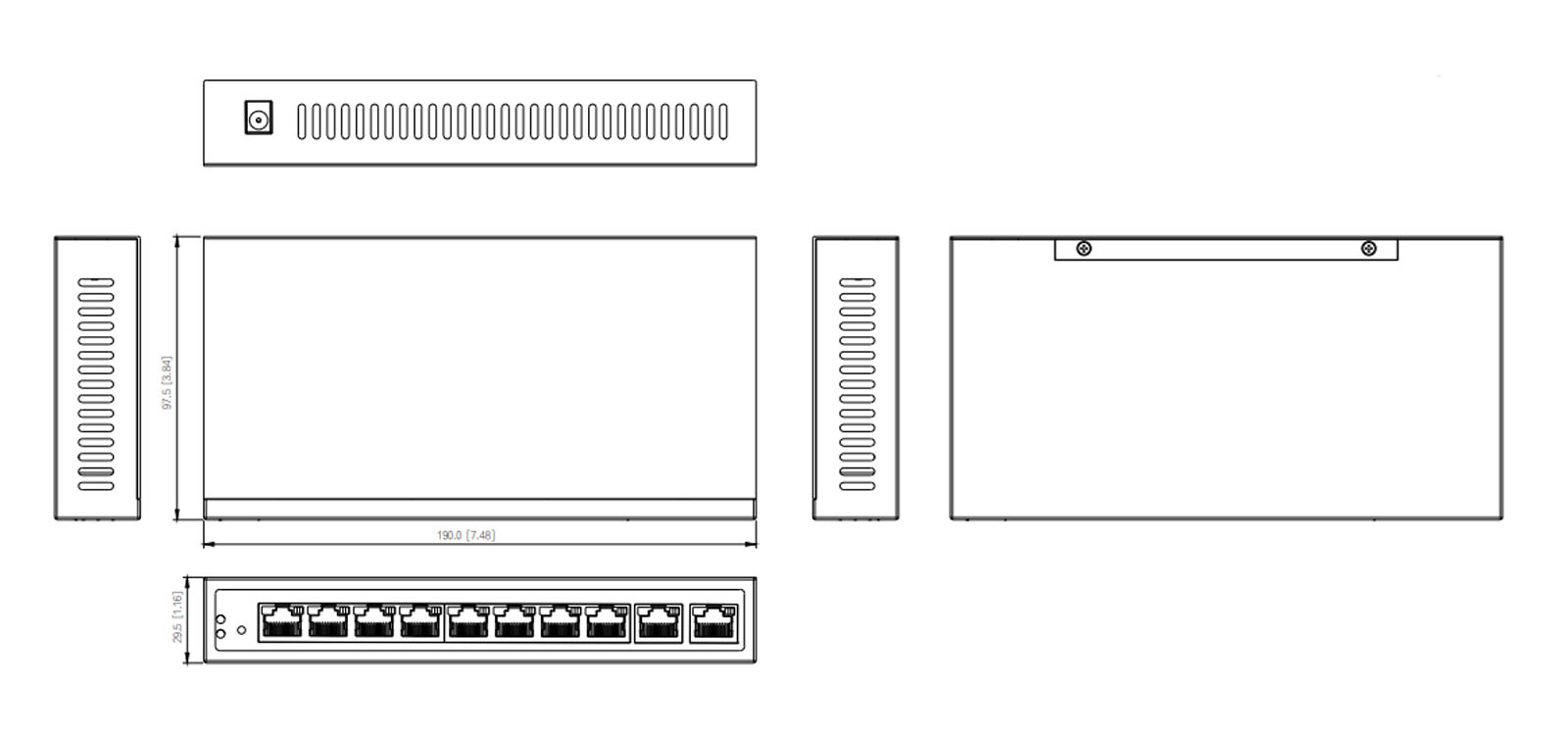

| Product Dimensions | 190 mm × 97.5 mm × 29.5 mm (7.48" × 3.84" × 1.16") (L × W × H) |
| Packaging Dimensions | 225mm × 216mm × 66mm (8.85" × 8.50" × 2.60") (L × W × H) |
| Installation | Desktop mount |
| Certifications | CE; FCC |
