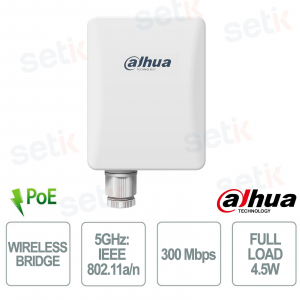

PFWB5-30n | V-RADIO OUTDOOR 11n 5G WIRELESS BRIDGE (CPE)

Dahua

The Dahua PFWB5-30n is a 5G outdoor wireless bridge designed for high-performance point-to-point and point-to-multipoint connections, ideal for video surveillance, wireless networks, and rural applications. Thanks to TDMA technology and MU-MIMO support, it guarantees stable and fast transmission up to 3 km, with a bandwidth of up to 300 Mbps. The compact design and IP66 protection ensure resistance in any weather conditions, while the minimal web interface simplifies installation and configuration.

Main specifications:

- Transmission distance up to 3 km

- Bandwidth up to 300 Mbps

- TDMA and MU-MIMO technology

- IP66 protection against dust and water

- Wide operating range from –30 °C to +70 °C

- Intuitive WEB interface for quick management

Further details

✅ TDMA Enhancement:
 TDMA (Time Division Multiple Access) technology enables intelligent bandwidth management, stabilizing video transmission and reducing delays. Thanks to this system, the device eliminates the interference and congestion problems typical of traditional wireless networks, ensuring smooth and consistent performance even in crowded environments .
✅ Wide Operating Temperatures:
Designed to withstand extreme conditions, the DH-PFWB5-30n operates perfectly between –30°C and +70°C . It also features professional lightning protection circuitry , which protects the device from electrical discharges and adverse weather conditions. This makes it a reliable solution for outdoor installations in any climate.
✅ Enhanced Antenna :
The built-in high-gain antenna ensures stable transmission up to 3 km and strong anti-interference capability. This results in a stable connection, ideal for sending real-time video streams or high-speed data, even in areas with many signal sources.
✅ Minimal WEB:
Dahua's Minimal WEB system simplifies device configuration and management with a simple and intuitive graphical interface. With just a few clicks, you can configure the network, monitor connection status, and optimize performance, reducing installation time and complexity.
✅ MU-MIMO:
Thanks to MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology, multiple users can connect simultaneously to the same access point without losing speed or stability. This feature optimizes network efficiency and improves overall transmission capacity by supporting multiple data streams in parallel.
✅ PoE (Power over Ethernet) :
The device supports PoE (24V/0.5A) , allowing both data transmission and power through a single Ethernet cable. This simplifies installation , eliminates the need for additional power supplies, and reduces cable clutter, making the system cleaner and more convenient for installers and professionals.

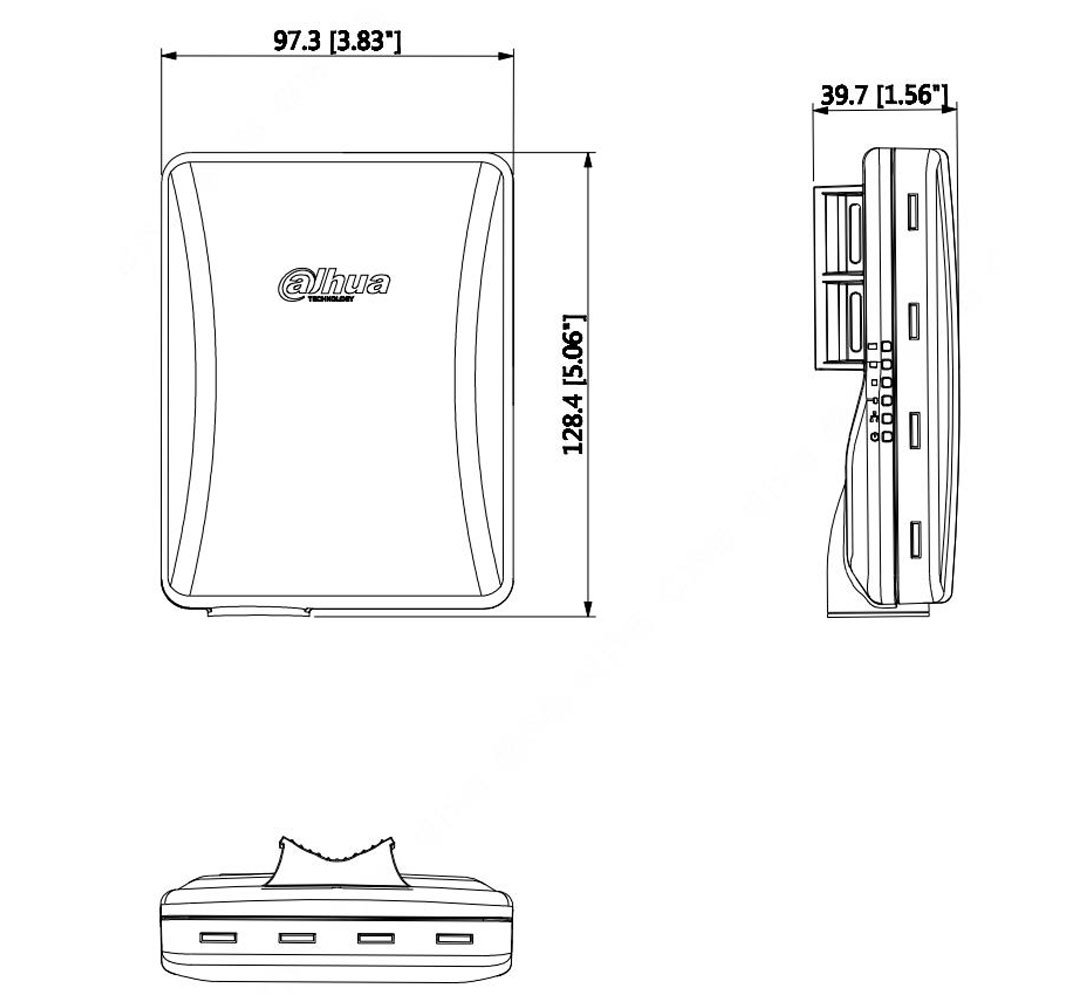

PFWB5-30n dimensions

Technical data sheet

Model PFWB5-30n
Hardware
Sold in Pairs Yes
Function Slots 1 × RJ-45 10/100/1000 Base-T
Power Supply 100 – 240 VAC
Power Consumption Full load: 4.5 W
Memory DDR 64 MB
Indicator Light 1 × Power light
1 × LAN light
4 × RSSI LEDs
Performance
Wireless Standard 5 GHz: IEEE 802.11a/n
Operating Frequency 5.150 – 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Wireless Transmission Rate 802.11n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps
802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
Channel Width 5/10/20/40 MHz
Max. Output Power CE EIRP:
≤23 dBm@5150-5250 MHz;
≤23 dBm@5250-5350 MHz;
≤27 dBm@5470-5725 MHz;
≤14 dBm@5725-5850 MHz
FCC output power:
≤24 dBm@5150-5250 MHz;
≤24 dBm@5250-5350 MHz;
≤24 dBm@5470-5725 MHz;
≤30 dBm@5725-5850 MHz
Antenna Direction Angle Horizontal: 30°, vertical: 30°
Transmission Distance 3000 m (9842.52 ft)
PoE PoE In: 24V/0.5A
PoE Out: NA
Function
Operating Mode AP (WDS)/WAP (TDMA2)/WAP(TDMA3)/Station (WDS/TDMA2/TDMA3)/Wireless client (ARPNAT)
Equipment Management Web
Encryption Mode WPA/WPA2-Personal; WPA/WPA2-Enterprise
Security Mechanism ACL; user isolation
OFDMA Yes
MU-MIMO 2 × 2
DFS Yes
DHCP Yes
Firmware Update Web update
Software DHCP server; SNMP server; NTP client; router advertisement daemon; ping watchdog
General
Operating Temperature –30 °C to +70 °C (–22 °F to +158 °F)
Storage Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Operating Humidity 5%–95% (RH), non-condensing
Net Weight 0.2 kg (0.44 lb)
Gross Weight 0.4 kg (0.88 lb)
Product Dimensions 130mm × 97mm × 37mm (5.11 × 3.81 × 1.45) (L × W × H)
Packaging Dimensions 174mm × 135mm × 80mm (6.85 × 5.31 × 3.14)(L × W × H)
Protection IP66
Installation Bracket mount
Certifications CE; FCC
Packing List 1 × Device;
2 × Dowel Pin;
1 × Pole Mount Bracket;
1 × Power Cord;
1 × 24V PoE Power Adapter;
1 × Quick start guide;
