PFWB5-10n – 5G Outdoor Wireless Bridge 5km with TDMA and MU-MIMO Technology - Dahua

PFWB5-10n – 5G Outdoor Wireless Bridge 5km with TDMA and MU-MIMO Technology - Dahua

 
-57% nuevo

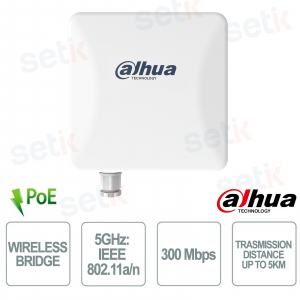

PFWB5-10N - is a high-performance 5G outdoor wireless bridge , ideal for point-to-point and point-to-multipoint connections up to 5 km . Thanks to TDMA technology, it guarantees stable and interference-free video transmission, with a bandwidth of up to 300 Mbps . The enhanced antenna ensures a strong signal even in harsh environments, while IP66 protection and operation from -30 °C to +70 °C make it a perfect solution for outdoor installations. The MU-MIMO system optimizes multi-user management and the minimalist WEB interface allows for quick and intuitive installation, ideal for video surveillance and professional wireless networks . Dahua

Technical Data Sheet

referencia : PFWB5-10N

brand : Dahua

EAN: 6939554947537

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

PFWB5-10n | V-RADIO OUTDOOR 11n 5G WIRELESS BRIDGE (CPE)

Dahua

The Dahua PFWB5-10n is a high-performance 5G outdoor wireless bridge, perfect for point-to-point and point-to-multipoint connections up to 5 km. Designed for stability and reliability, it uses TDMA technology to reduce interference and improve video transmission. The enhanced antenna ensures a strong signal even over long distances, while IP66 protection and a wide operating temperature range (–30°C to +70°C) allow for use in any environment. With MU-MIMO and a minimalist web interface, it offers professional performance and easy setup.

Main specifications:

- Transmission distance up to 5 km

- Bandwidth up to 300 Mbps

- TDMA and MU-MIMO technology

- IP66 protection against dust and water

- Wide operating range from –30 °C to +70 °C

- Intuitive WEB interface for quick management

Further details

✅ TDMA Enhancement:
 Thanks to TDMA (Time Division Multiple Access) technology, the device optimizes signal transmission by reducing interference and improving video stability. This solution stabilizes bandwidth , avoiding network congestion and ensuring smooth and continuous transmission even in crowded environments.
✅ Wide Operating Temperatures:
The PFWB5-10n is designed to operate in extreme climate conditions, with an operating range of –30°C to +70°C . It includes professional anti-lightning circuitry , which protects the network from storms and surges, ensuring consistent performance in any outdoor environment.
✅ Enhanced Antenna :
The minimalist web interface allows for simple and intuitive device management . The optimized graphic system reduces configuration times, allowing even less experienced installers to quickly perform setup and maintenance, increasing operational efficiency.
✅ Minimal WEB:
Dahua's Minimal WEB system simplifies device configuration and management with a simple and intuitive graphical interface. With just a few clicks, you can configure the network, monitor connection status, and optimize performance, reducing installation time and complexity.
✅ MU-MIMO:
With advanced MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology, the device allows multiple users to connect simultaneously to the same access point without losing performance. This improves network capacity and ensures greater speed and stability for each connected device.
✅ PoE (Power over Ethernet) :
24V/0.5A PoE support allows the bridge to be powered directly over the Ethernet cable, eliminating the need for separate power supplies. This simplifies installation and reduces cabling costs, providing a clean, secure, and professional solution for power and data transmission.

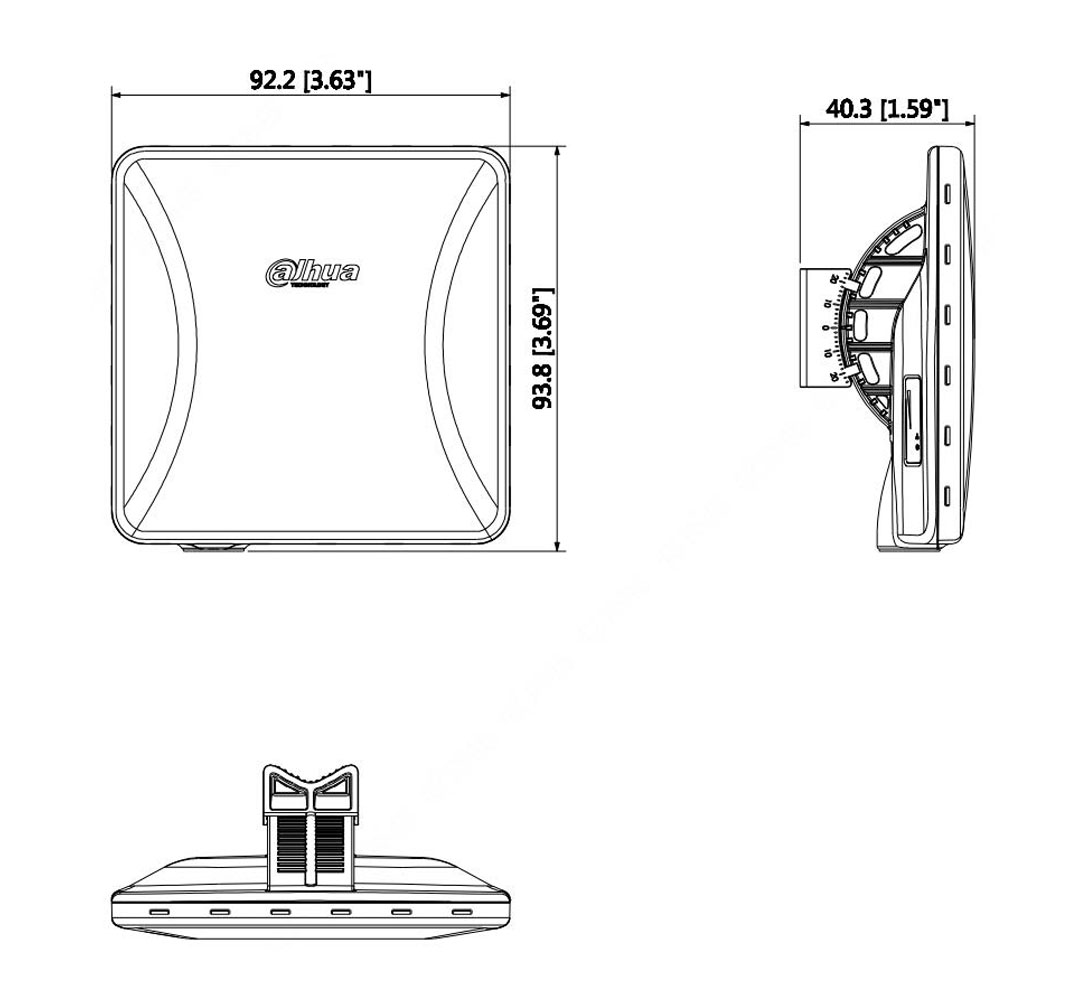

PFWB5-10N dimensions

Technical data sheet

Model PFWB5-10n
Hardware
Sold in Pairs Yes
Function Slots 1 × RJ-45 10/100/1000 Base-T
Power Supply 100 – 240 VAC
Power Consumption Full load: 4.5 W
Memory DDR 64 MB
Indicator Light 1 × Power light
1 × LAN light
4 × RSSI LEDs
Performance
Wireless Standard 5 GHz: IEEE 802.11a/n
Operating Frequency 5.150 – 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Wireless Transmission Rate 802.11n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps
802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
Channel Width 5/10/20/40 MHz
Max. Output Power CE EIRP:
≤23 dBm@5150-5250 MHz;
≤23 dBm@5250-5350 MHz;
≤27 dBm@5470-5725 MHz;
≤14 dBm@5725-5850 MHz
FCC output power:
≤24 dBm@5150-5250 MHz;
≤24 dBm@5250-5350 MHz;
≤24 dBm@5470-5725 MHz;
≤30 dBm@5725-5850 MHz
Antenna Direction Angle Horizontal: 10°, vertical: 10°
Transmission Distance 5000 m (16404.20 ft)
PoE PoE In: 24V/0.5A
PoE Out: NA
Function
Operating Mode AP (WDS)/WAP (TDMA2)/WAP(TDMA3)/Station (WDS/TDMA2/TDMA3)/Wireless client (ARPNAT)
Equipment Management Web
Encryption Mode WPA/WPA2-Personal; WPA/WPA2-Enterprise
Security Mechanism ACL; user isolation
OFDMA Yes
MU-MIMO 2 × 2
DFS Yes
DHCP Yes
Firmware Update Web update
Software DHCP server; SNMP server; NTP client; router advertisement daemon; ping watchdog
General
Operating Temperature –30 °C to +70 °C (–22 °F to +158 °F)
Storage Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Operating Humidity 5%–95% (RH), non-condensing
Net Weight 0.4 kg (0.88 lb)
Gross Weight 0.7 kg (1.54 lb)
Product Dimensions 185 mm × 185 mm × 65 mm (7.28" × 7.28" × 2.55") (L × W × H)
Packaging Dimensions 200 mm × 196 mm × 94 mm (7.87" × 7.71" × 3.70") (L × W × H)
Protection IP66
Installation Bracket mount
Certifications CE; FCC
Packing List 1 × Device;
2 × Dowel Pin;
1 × Pole Mount Bracket;
1 × Power Cord;
1 × 24V PoE Power Adapter;
1 × Quick start guide;
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
