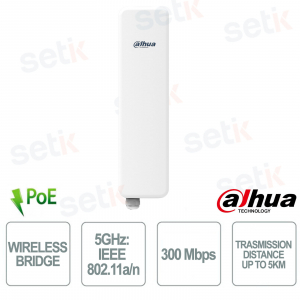

PFWB5-90n | V-RADIO OUTDOOR 11n 5G WIRELESS BRIDGE (BASE STATION)

Dahua

The Dahua PFWB5-90n is a high-performance 5G outdoor wireless bridge, ideal for point-to-point and point-to-multipoint connections in video surveillance, telecommunications, and industrial networks. Thanks to TDMA technology and MU-MIMO support, it ensures stable, high-speed transmission up to 5 km, even in congested environments. IP66 protection, operating temperature range from -30°C to +70°C, and a powered antenna ensure reliability and optimal coverage in any conditions. With a minimalist web interface and integrated PoE, it offers quick installation and simplified management for professionals and installers.

Main specifications:

- Transmission up to 5 km and 300 Mbps

- TDMA technology for network stability

- 2x2 MU-MIMO for simultaneous connections

- Enhanced antenna with long range

- IP66 protection and wide temperature range

- Intuitive WEB management and 24V PoE support

Further details

✅ TDMA Enhancement:
 TDMA (Time Division Multiple Access) technology enables intelligent bandwidth management, stabilizing video transmission and minimizing interference. Thanks to this feature, the device identifies and manages the network's "hidden nodes," ensuring a smooth and constant connection even in crowded environments , ideal for multi-camera video surveillance systems.
✅ Wide Operating Temperatures:
Designed to withstand the most extreme conditions, the PFWB5-90n operates over a temperature range of –30°C to +70°C , with integrated professional lightning protection circuitry . This makes it suitable for industrial, rural or urban environments exposed to climatic variations, ensuring stable and long-lasting performance .
✅ Enhanced Antenna :
The enhanced high-gain antenna provides stable and long-range transmission , with a 90° horizontal and vertical coverage angle. With its strong anti-interference ability, it ensures a stable connection up to 5 km , perfect for outdoor wireless networks or large-area surveillance installations.
✅ Minimal WEB:
Equipped with a minimalist and intuitive web interface, the device simplifies configuration and management operations. The installer can quickly set up and monitor the network, reducing installation times and margins of error. It is the ideal solution for those seeking efficiency and immediate control .
✅ MU-MIMO:
MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology enables simultaneous communication with multiple devices without performance loss. This improves network efficiency, optimizes throughput, and reduces latency, providing a stable and fast connection for multiple users simultaneously .
✅ PoE (Power over Ethernet) :
24V/0.5A PoE support significantly simplifies installation: power and data transmission are carried out via a single Ethernet cable. This reduces the number of required connections, minimizes wiring costs, and makes the system cleaner, more efficient, and more secure .

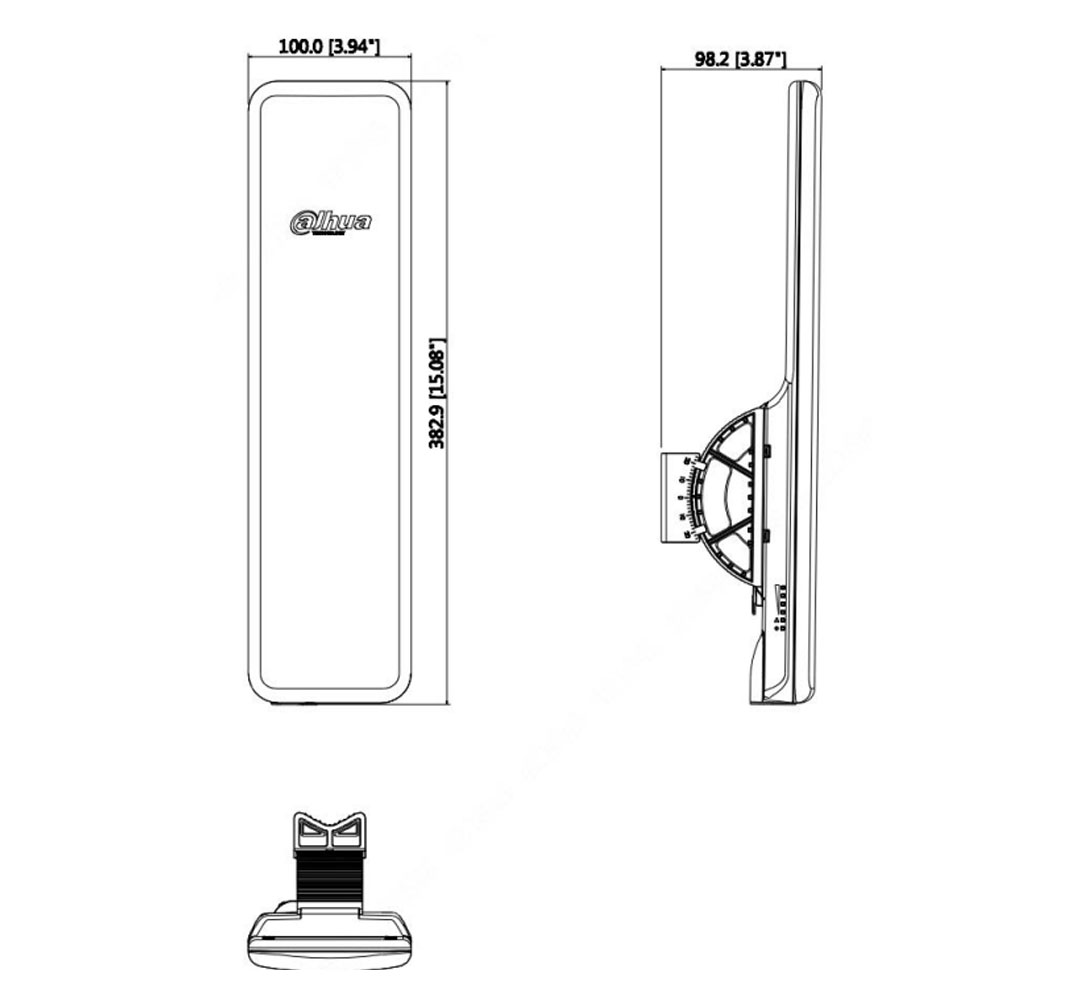

PFWB5-90n dimensions

Technical data sheet

Model PFWB5-90n
Hardware
Sold in Pairs Yes
Function Slots 1 × RJ-45 10/100/1000 Base-T
Power Supply 100 – 240 VAC
Power Consumption Full load: 4.5 W
Memory DDR 64 MB
Indicator Light 1 × Power light
1 × LAN light
4 × RSSI LEDs
Performance
Wireless Standard 5 GHz: IEEE 802.11a/n
Operating Frequency 5.150 – 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Wireless Transmission Rate 802.11n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps
802.11a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
Channel Width 5/10/20/40 MHz
Max. Output Power CE EIRP:
≤23 dBm@5150-5250 MHz;
≤23 dBm@5250-5350 MHz;
≤27 dBm@5470-5725 MHz;
≤14 dBm@5725-5850 MHz
FCC output power:
≤24 dBm@5150-5250 MHz;
≤24 dBm@5250-5350 MHz;
≤24 dBm@5470-5725 MHz;
≤30 dBm@5725-5850 MHz
Antenna Direction Angle Horizontal: 90°, vertical: 90°
Transmission Distance 5000 m (16404.20 ft)
PoE PoE In: 24V/0.5A
PoE Out: NA
Function
Operating Mode AP (WDS)/WAP (TDMA2)/WAP(TDMA3)/Station (WDS/TDMA2/TDMA3)/Wireless client (ARPNAT)
Equipment Management Web
Encryption Mode WPA/WPA2-Personal; WPA/WPA2-Enterprise
Security Mechanism ACL; user isolation
OFDMA Yes
MU-MIMO 2 × 2
DFS Yes
DHCP Yes
Firmware Update Web update
Software DHCP server; SNMP server; NTP client; router advertisement daemon; ping watchdog
General
Operating Temperature –30 °C to +70 °C (–22 °F to +158 °F)
Storage Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Operating Humidity 5%–95% (RH), non-condensing
Net Weight 0.5 kg (1.10 lb)
Gross Weight 0.9 kg (1.98 lb)
Product Dimensions 111 mm × 100 mm × 37 mm (4.37" × 3.93" × 1.45") (L × W × H)
Packaging Dimensions 445 mm × 125 mm × 76 mm (17.51" × 4.92" × 2.99") (L × W × H)
Protection IP66
Installation Bracket mount
Certifications CE; FCC
Packing List 1 × Device;
2 × Dowel Pin;
1 × Pole Mount Bracket;
1 × Power Cord;
1 × 24V PoE Power Adapter;
1 × Quick start guide;
