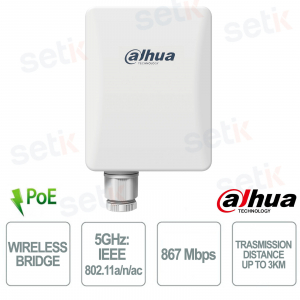

PFWB5-30ac – 5G Outdoor Wireless Bridge 3km with TDMA and MU-MIMO Technology - Dahua

PFWB5-30ac – 5G Outdoor Wireless Bridge 3km with TDMA and MU-MIMO Technology - Dahua

 
-57% nuevo

PFWB5-30ac - is a high-performance 5G outdoor wireless bridge designed for point-to-point and point-to-multipoint connections in video surveillance networks, ISPs and industrial applications . Thanks to TDMA technology and MU-MIMO support, it offers stable transmission up to 3 km with bandwidth up to 867 Mbps . The enhanced antenna ensures a strong and continuous signal, while IP65 protection and a wide operating temperature range (–30 °C ÷ +70 °C) guarantee reliability in any environment. The minimalist WEB interface simplifies installation and management, and the integrated PoE reduces wiring costs, making this device the ideal solution for those seeking efficiency, stability and professional performance . Dahua

Technical Data Sheet

referencia : PFWB5-30ac

brand : Dahua

EAN: 6939554947674

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

PFWB5-30ac | V-RADIO OUTDOOR 11ac 5G WIRELESS BRIDGE (CPE)

Dahua

The Dahua PFWB5-30ac is a high-performance 5G outdoor wireless bridge, ideal for point-to-point and point-to-multipoint connections up to 3 km, perfect for video surveillance networks, ISPs, and industrial applications. Thanks to TDMA technology and MU-MIMO support, it offers stable, fast, and interference-free transmissions, with a bandwidth of up to 867 Mbps. IP65 protection, a wide operating temperature range, and a powered antenna ensure reliability in any environment, while the minimalist web interface and integrated PoE make installation simple and efficient.

Main specifications:

- Transmission up to 3 km

- Speed up to 867 Mbps

- TDMA technology for network stability

- 2x2 MU-MIMO for multiple simultaneous connections

- IP65 protection against water and dust

- 24V PoE and intuitive WEB interface

Further details

✅ TDMA Enhancement:
 Thanks to TDMA (Time Division Multiple Access) technology, the device stabilizes video bandwidth and reduces interference in wireless transmissions. This function ensures constant and smooth transmission , eliminating problems related to "hidden nodes" and improving signal quality in congested networks.
✅ Wide Operating Temperature:
The PFWB5-30ac is designed to withstand extreme temperatures from –30°C to +70°C and features professional lightning protection circuitry to protect the hardware from surges and adverse weather conditions. It is a reliable solution for outdoor installations , even in harsh climates or industrial environments.
✅ Enhanced Antenna :
The built-in high-gain antenna ensures stable, long-distance transmission up to 3km with powerful anti-interference capability. This feature ensures reliable and continuous connections , ideal for real-time video streaming and critical wireless communications.
✅ Minimal WEB:
The minimal and intuitive web system simplifies configuration and management. Installers can quickly and accurately configure the network, reducing setup times and optimizing operational efficiency, even across multiple installations.
✅ MU-MIMO:
Thanks to MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology, the bridge allows multiple users to connect simultaneously to the same access point without losing speed or stability. This allows for greater network capacity and optimal performance , even in environments with many active devices.
✅ PoE (Power over Ethernet) :
The device supports PoE 24V/0.5A , which allows direct power supply via Ethernet cable. This solution eliminates the need for additional power supplies, simplifying installation and making the system cleaner, safer, and more professional .

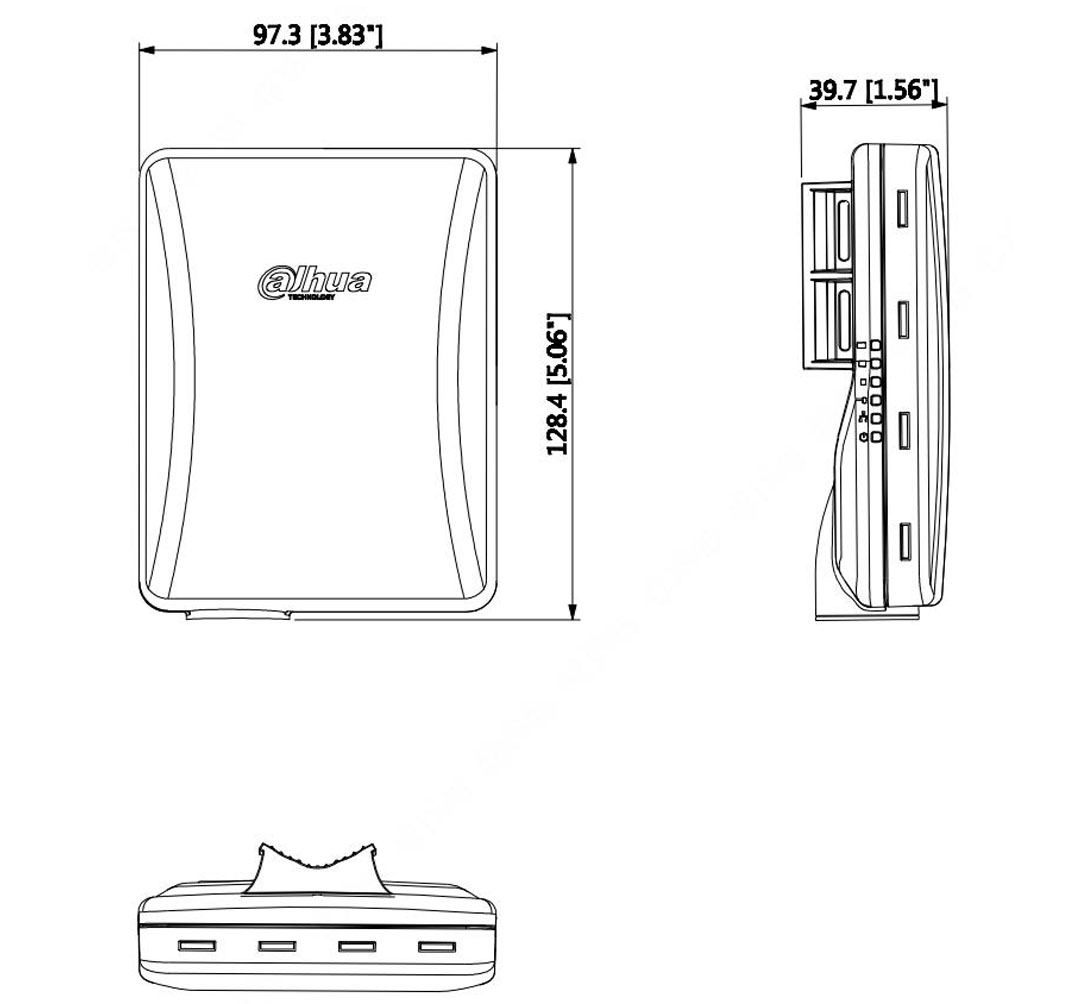

PFWB5-30ac dimensions

Technical data sheet

Model PFWB5-30ac
Hardware
Sold in Pairs Yes
Function Slots 1 × RJ-45 10/100/1000 Base-T
Power Supply 100 – 240 VAC
Power Consumption Full load: 10 W
Memory DDR 64 MB
Indicator Light 1 × Power light
1 × LAN light
4 × RSSI LEDs
Performance
Wireless Standard 5 GHz: IEEE 802.11a/n
Operating Frequency 5.150 – 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Wireless Transmission Rate 802.11 ac@40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps;
802.11 ac@80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps
Channel Width 5/10/20/40 MHz
Max. Output Power CE EIRP:
≤23 dBm@5150-5250 MHz;
≤23 dBm@5250-5350 MHz;
≤27 dBm@5470-5725 MHz;
≤14 dBm@5725-5850 MHz
FCC output power:
≤24 dBm@5150-5250 MHz;
≤24 dBm@5250-5350 MHz;
≤24 dBm@5470-5725 MHz;
≤30 dBm@5725-5850 MHz
Antenna Direction Angle Horizontal: 35°, vertical: 35°
Transmission Distance 3000 m (9842.52 ft)
PoE PoE In: 24V/0.5A
PoE Out: NA
Function
Operating Mode AP (WDS)/WAP (TDMA2)/WAP(TDMA3)/Station (WDS/TDMA2/TDMA3)/Wireless client (ARPNAT)
Equipment Management Web
Encryption Mode WPA/WPA2-Personal; WPA/WPA2-Enterprise
Security Mechanism ACL; user isolation
OFDMA Yes
MU-MIMO 2 × 2
DFS Yes
DHCP Yes
Firmware Update Web update
Software DHCP server; SNMP server; NTP client; router advertisement daemon; ping watchdog
General
Operating Temperature –30 °C to +70 °C (–22 °F to +158 °F)
Storage Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Operating Humidity 5%–95% (RH), non-condensing
Net Weight 130mm × 97mm × 37mm (5.11 × 3.81 × 1.45) (L × W × H)
Gross Weight 0.4 kg (0.88 lb)
Product Dimensions 111 mm × 100 mm × 37 mm (4.37" × 3.93" × 1.45") (L × W × H)
Packaging Dimensions 174mm × 135mm × 80mm (6.85 × 5.31 × 3.14)(L × W × H)
Protection IP65
Installation Bracket mount
Certifications CE; FCC
Packing List 1 × Device;
2 × Dowel Pin;
1 × Pole Mount Bracket;
1 × Power Cord;
1 × 24V PoE Power Adapter;
1 × Quick start guide;
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
