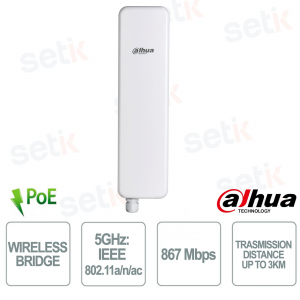

PFWB5-90ac – 5G Outdoor Wireless Bridge 3km with TDMA and MU-MIMO Technology - Dahua

PFWB5-90ac – 5G Outdoor Wireless Bridge 3km with TDMA and MU-MIMO Technology - Dahua

 
-57% nuevo

PFWB5-90AC - is a high-performance 5G outdoor wireless bridge , designed for point-to-point (PTP) and point-to-multipoint (PTMP) connections, ideal for video surveillance, ISPs and corporate networks . Thanks to TDMA technology and MU-MIMO support, it guarantees stable and fast transmissions up to 3 km , with a bandwidth of up to 867 Mbps . IP65 protection , the enhanced 90° antenna and the wide operating range from -30 °C to +70 °C ensure maximum reliability in any environment. The minimal WEB interface simplifies configuration and the 24V PoE system reduces installation time and costs. A complete solution for professional, high-performance and resistant wireless networks . Dahua

Technical Data Sheet

referencia : PFWB5-90AC

brand : Dahua

EAN: 6939554947681

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

PFWB5-90ac | V-RADIO OUTDOOR 11ac 5G WIRELESS BRIDGE (BASE STATION)

Dahua

The Dahua PFWB5-90ac is a high-performance 5G outdoor wireless bridge, perfect for point-to-point (PTP) and point-to-multipoint (PTMP) connections in video surveillance networks, ISPs, and industrial applications. Thanks to TDMA technology and MU-MIMO support, it offers stable and fast transmissions up to 3 km, with a bandwidth of up to 867 Mbps. The enhanced 90° antenna, IP65 protection, and operation from -30°C to +70°C ensure reliability in any conditions. The minimal web interface simplifies management and the 24V PoE system reduces installation costs, making it ideal for professional wireless networks and outdoor installations.

Main specifications:

- Transmission up to 3 km

- Speed up to 867 Mbps

- TDMA technology for stability and video performance

- 2x2 MU-MIMO for multiple simultaneous connections

- IP65 protection against weather and dust

- 24V PoE and intuitive WEB interface

Further details

✅ TDMA Enhancement:
 TDMA (Time Division Multiple Access) technology stabilizes video bandwidth and reduces interference between hidden nodes, improving wireless transmission quality. This feature ensures smooth and stable transmissions , ideal for surveillance systems and networks with high data traffic.
✅ Wide Operating Temperature:
The device is designed to operate over a wide temperature range from –30°C to +70°C , with professional lightning protection circuitry protecting the hardware from lightning strikes and thunderstorms. This feature ensures continued reliability even in extreme weather conditions , making it perfect for outdoor installations.
✅ Enhanced Antenna :
Equipped with a high-gain, upgraded antenna , the PFWB5-90ac ensures stable transmissions up to 3km with excellent anti-interference capability. The 90° horizontal and 90° vertical aperture antenna allows for uniform and powerful coverage, ideal for large-scale wireless networks and video surveillance systems.
✅ Minimal WEB:
The minimal and intuitive web system allows for quick and easy configuration, improving operational efficiency. Installers can easily manage the device via a graphical interface, reducing installation and maintenance times.
✅ MU-MIMO:
Thanks to MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology, multiple users can communicate simultaneously with a single access point without losing performance. This optimizes network capacity and improves stability and connection speed, even with multiple active devices.
✅ PoE (Power over Ethernet) :
24V/0.5A PoE support allows power and data transmission over a single Ethernet cable, simplifying installation and reducing cabling costs. This solution ensures a clean, secure, and easy-to-maintain system, ideal for professional installations and outdoor environments.
PFWB5-90AC dimensions

Technical data sheet

Model PFWB5-90ac
Hardware
Sold in Pairs Yes
Function Slots 1 × RJ-45 10/100/1000 Base-T
Power Supply 100 – 240 VAC
Power Consumption Full load: 10 W
Memory DDR 64 MB
Indicator Light 1 × Power light
1 × LAN light
4 × RSSI LEDs
Performance
Wireless Standard 5 GHz: IEEE 802.11a/n/ac
Operating Frequency 5.150 – 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Wireless Transmission Rate 802.11 ac@40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps;
802.11 ac@80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps
Channel Width 5/10/20/40 MHz
Max. Output Power CE EIRP:
≤23 dBm@5150-5250 MHz;
≤23 dBm@5250-5350 MHz;
≤27 dBm@5470-5725 MHz;
≤14 dBm@5725-5850 MHz
FCC output power:
≤24 dBm@5150-5250 MHz;
≤24 dBm@5250-5350 MHz;
≤24 dBm@5470-5725 MHz;
≤30 dBm@5725-5850 MHz
Antenna Direction Angle Horizontal: 90°, vertical: 90°
Transmission Distance 3000 m (9842.52 ft)
PoE PoE In: 24V/0.5A
PoE Out: NA
Function
Operating Mode AP (WDS)/WAP (TDMA2)/WAP(TDMA3)/Station (WDS/TDMA2/TDMA3)/Wireless client (ARPNAT)
Equipment Management Web
Encryption Mode WPA/WPA2-Personal; WPA/WPA2-Enterprise
Security Mechanism ACL; user isolation
OFDMA Yes
MU-MIMO 2 × 2
DFS Yes
DHCP Yes
Firmware Update Web update
Software DHCP server; SNMP server; NTP client; router advertisement daemon; ping watchdog
General
Operating Temperature –30 °C to +70 °C (–22 °F to +158 °F)
Storage Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Operating Humidity 5%–95% (RH), non-condensing
Net Weight 0.46 kg (1.01 lb)
Gross Weight 0.9 kg (1.98 lb)
Product Dimensions 380mm × 100mm × 35mm (14.96 × 3.93 × 1.37) (L × W × H)
Packaging Dimensions 445mm × 125mm × 76mm (17.51 × 4.92 × 2.99) (L × W × H)
Protection IP65
Installation Bracket mount
Certifications CE; FCC
Packing List 1 × Device;
2 × Dowel Pin;
1 × Pole Mount Bracket;
1 × Power Cord;
1 × 24V PoE Power Adapter;
1 × Quick start guide;
