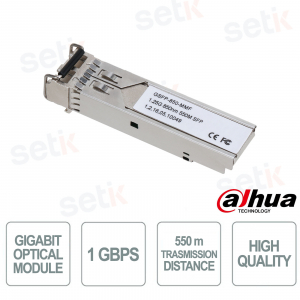

Dahua GSFP-850-MMF Optical Module: Reliable Gigabit Transmission up to 550m for Industrial and Security Networks

Dahua GSFP-850-MMF Optical Module: Reliable Gigabit Transmission up to 550m for Industrial and Security Networks

 
-57% nuevo

GSFP-850-MMF - is a high-performance Gigabit optical module with dual multimode fiber and LC connector, capable of transmitting data up to 550 meters at 850 nm. Designed to withstand extreme conditions from –40°C to +85°C, it guarantees stability and reliability even in the harshest industrial environments. Thanks to Plug and Play technology, it offers quick and easy installation, ideal for applications in security networks, telecommunications, intelligent traffic, and the energy sectors. Its compact and robust structure makes it perfect for professional switches and network devices, optimizing connectivity and operational efficiency. Dahua

Technical Data Sheet

referencia : GSFP-850-MMF

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

GSFP-850-MMF | GIGABIT OPTICAL MODULE


Dahua

The Dahua GSFP-850-MMF optical module is a high-performance Gigabit solution designed for reliable and fast connections over dual multimode fiber. Thanks to the LC connector and Plug and Play technology, it ensures simple installation and is compatible with various network devices. It withstands extreme temperatures from –40°C to +85°C, ensuring stability even in harsh industrial environments. Perfect for security networks, telecommunications, and intelligent infrastructure, it offers transmission ranges of up to 550 meters at 850 nm.

Main specifications:

- Speed up to 1 Gbps

- Dual multimode fiber with LC connector

- Transmission up to 550 m at 850 nm

- Operation from –40 °C to +85 °C

- Plug and Play installation

Further details

✅ Wide Operating Temperatures:

Designed to operate in extreme conditions, the GSFP-850-MMF operates over a temperature range of –40°C to +85°C , ensuring optimal performance even in harsh environments such as industrial plants, outdoor areas, or server rooms with fluctuating temperatures. This durability makes it ideal for applications in sectors such as energy, transportation, and security.

✅ Plug and Play :
The module is easy to install , requires no complex configuration, and automatically adapts to compatible devices. Plug-and-play technology allows for quick and secure connection, reducing installation time and increasing operational efficiency in enterprise and industrial network systems.

✅ Hardware:
 Equipped with dual multimode fiber and LC connector, the GSFP-850-MMF supports transmission speeds of up to 1 Gbps , ensuring compatibility with advanced switches and network devices. Its compact size ( 55.5 × 13.4 × 8.5 mm ) allows for optimal integration even in small spaces, while maintaining high standards of reliability and structural robustness .

 ✅ Performance :
 With a wavelength of 850 nm for both transmission and reception and an operating distance of up to 550 meters , the module ensures stable and fast communication. It supports a relative humidity between 5% and 95% , making it an excellent choice for high-data density environments or with variable climate conditions.

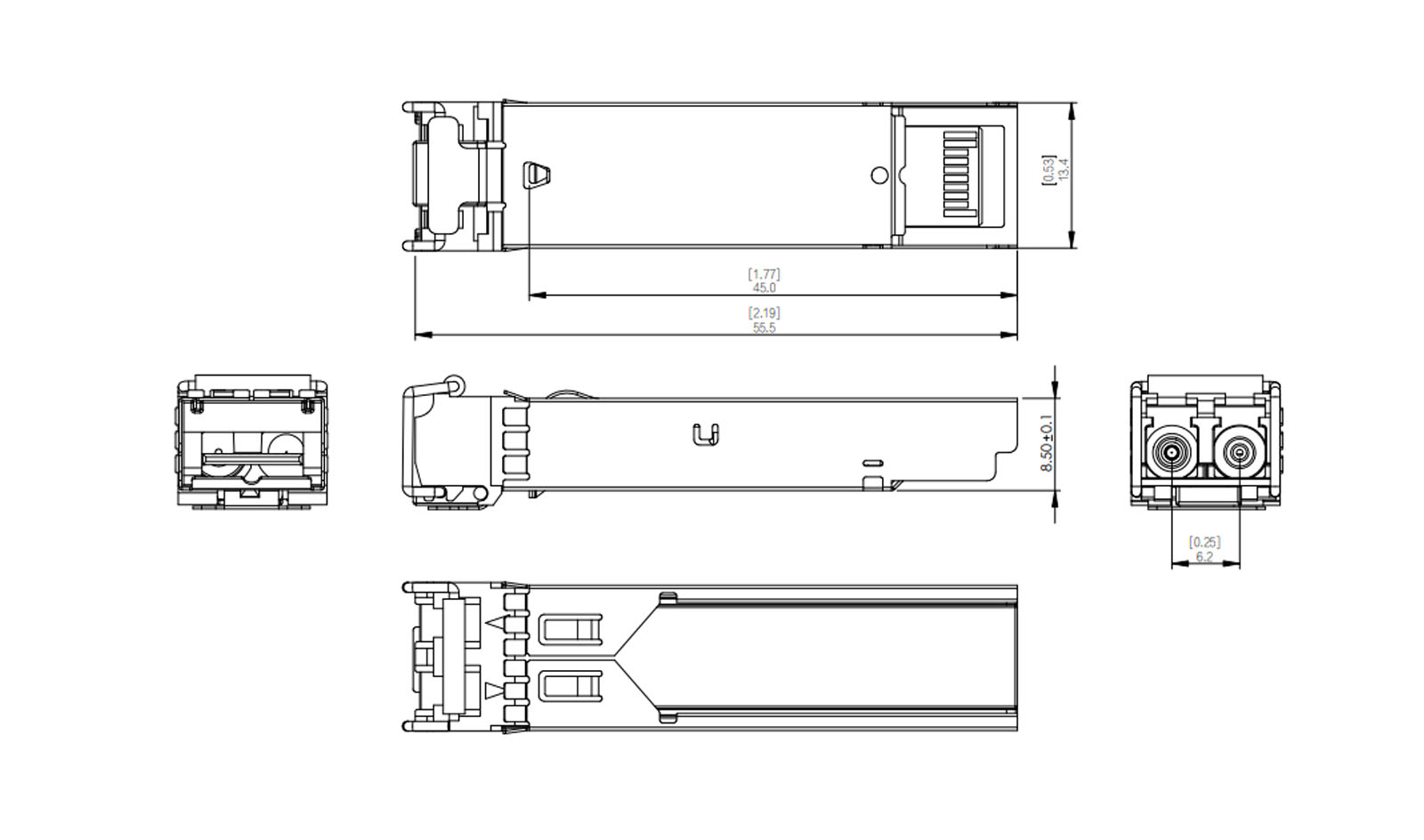

GSFP-850-MMF dimensions

Technical data sheet

Model GSFP-850-MMF
Hardware
Optical Fiber Type Multiple-mode double fiber
Optical Port Type LC
Speed 1Gbps

Performance
Wavelength 850nm sending; 850 nm receiving
Transmission Distance 550 m
Operating Humidity 5%–95%
Operating Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Max. Speed of Optical Port 1 Gbps
Product Dimensions 55.5 mm × 13.4 mm × 8.5 mm (2.20" × 0.53" × 0.33")
