Dahua GSFP-1310-20-SMF Optical Module – Gigabit Transmission Up to 20 km, Reliability and Professional Performance

Dahua GSFP-1310-20-SMF Optical Module – Gigabit Transmission Up to 20 km, Reliability and Professional Performance

 
-57% nuevo

GSFP-1310-20-SMF - is a dual-fiber single-mode Gigabit optical module with LC connector, designed for data transmissions up to 20 km at a wavelength of 1310 nm . Thanks to its rugged construction and Plug and Play technology, it ensures quick and reliable installations without complex configurations. It operates over a wide temperature range from –40 °C to +85 °C , ensuring high performance even in extreme conditions. Ideal for network applications in telecommunications, security and industrial infrastructure , it combines efficiency, stability and long life. Dahua

Technical Data Sheet

referencia : GSFP-1310-20-SMF

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

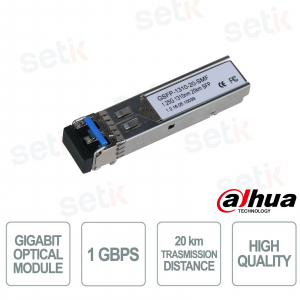

GSFP-1310-20-SMF | GIGABIT OPTICAL MODULE


Dahua

The Dahua GSFP-1310-20-SMF is a Gigabit optical module designed for reliable long-distance connections up to 20 km, with dual single-mode fiber and LC connector. Thanks to plug-and-play technology, it ensures quick installation and compatibility with various network devices. Designed for harsh environments, it operates within a temperature range of -40°C to +85°C, ensuring stability and high performance in professional telecommunications, security, and industrial automation applications.

Main specifications:

- Speed: 1 Gbps

- Transmission: up to 20 km at 1310 nm

- Fiber: dual single-mode fiber

- Connector: LC

- Operating temperature: –40 °C / +85 °C

- Plug and Play installation

Further details

✅ Wide Operating Temperatures:

The module is designed to operate in extreme environments, operating within a temperature range of –40°C to +85°C . This feature allows for safe and consistent use even in difficult climatic conditions, such as outdoor installations or industrial environments with significant temperature fluctuations, always ensuring signal stability and continuity.

✅ Plug and Play :
Thanks to Plug and Play technology, the GSFP-1310-20-SMF is quick and easy to install, requiring no complex configuration or dedicated software. Simply connect it to your device and start transmitting data immediately, making it ideal for professionals and end users looking for a quick and reliable solution to expand their network.

✅ Hardware:
 Equipped with dual single-mode fiber and LC connector, the module supports transmission speeds of up to 1 Gbps . The compact design ( 55.5 × 13.4 × 8.5 mm ) and rugged construction ensure compatibility with switches, routers, and industrial network devices, offering maximum efficiency and durability.

 ✅ Performance :
 With a wavelength of 1310 nm for both transmit and receive, the GSFP-1310-20-SMF offers stable data transmission up to 20 km , even in humidity conditions ranging from 5% to 95% . This consistent performance makes it an excellent choice for network infrastructures that require speed, reliability, and superior connection quality.

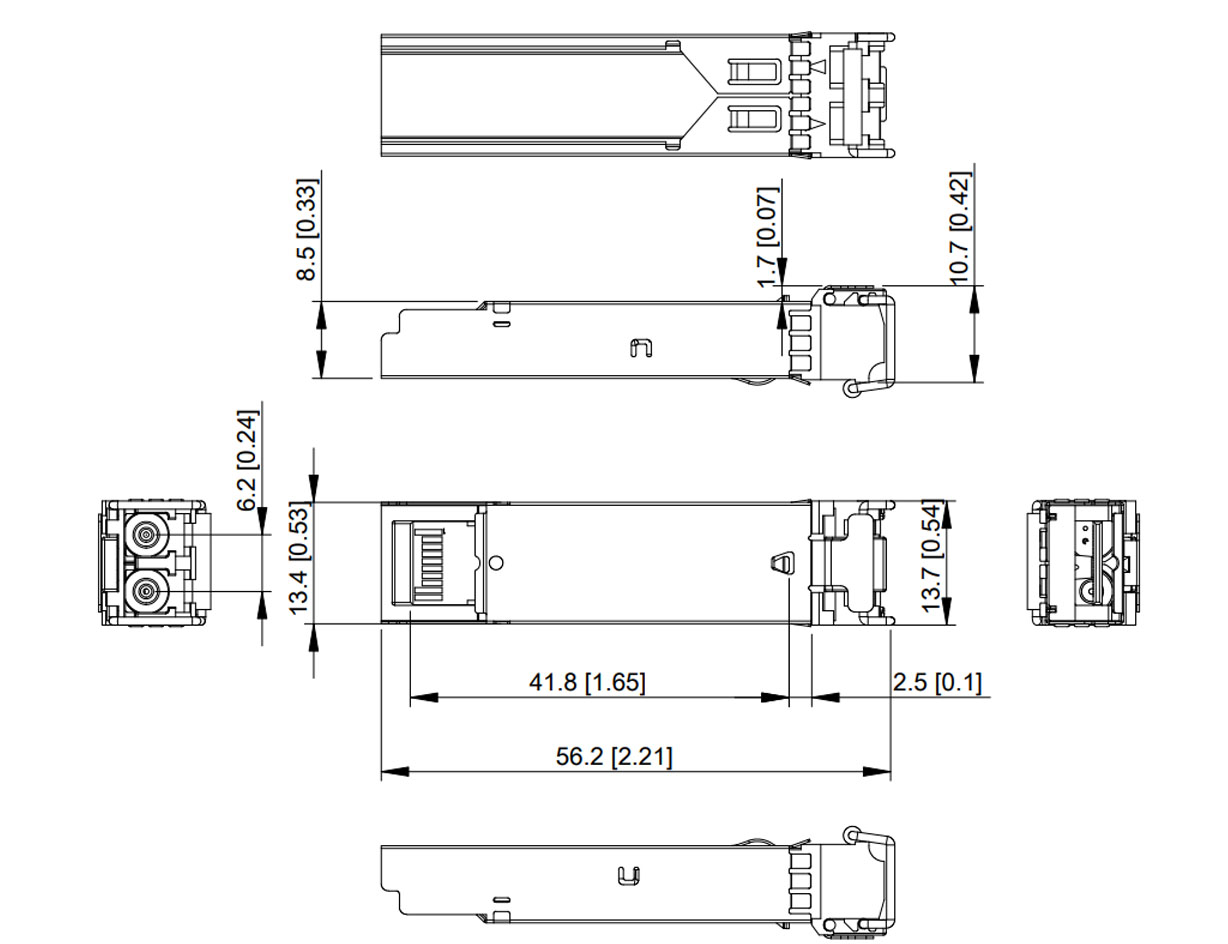

GSFP-1310-20-SMF dimensions

Technical data sheet

Model GSFP-1310-20-SMF
Hardware
Optical Fiber Type Single mode double fiber
Optical Port Type LC
Speed 1Gbps

Performance
Wavelength 1310 nm sending; 1310 nm receiving
Transmission Distance 20 km
Operating Humidity 5%–95%
Operating Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Storage Temperature –40–85 °C
Max. Speed of Optical Port 1 Gbps
Product Dimensions 55.5 mm × 13.4 mm × 8.5 mm (2.19" × 0.53" × 0.33")
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
