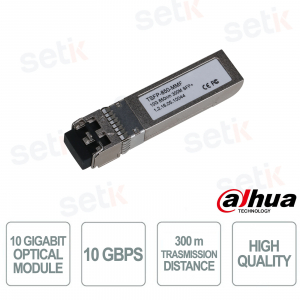

TSFP-850-MMF | 10 GIGABIT OPTICAL MODULE


Dahua

The Dahua TSFP-850-MMF is a 10 Gigabit optical module designed to ensure high-speed connections and maximum reliability in professional networks. Thanks to its compact design and dual multimode fiber, it ensures stable transmission up to 300 meters at a wavelength of 850 nm. With a wide temperature range of -40°C to +85°C, it offers consistent performance even in extreme environments. Plug-and-play technology simplifies installation, making it ideal for telecommunications, security, and industrial automation applications.

Main specifications:

- Speed: 10 Gbps

- Transmission: up to 300 m at 850 nm

- Fiber: dual single-mode fiber

- Connector: LC

- Operating temperature: –40 °C / +85 °C

- Plug and Play installation

Further details

✅ Wide Operating Temperatures:
 Designed to withstand the harshest conditions, the TSFP-850-MMF operates over a temperature range of –40°C to +85°C . This allows it to maintain high performance in both high-temperature industrial environments and cold outdoor installations. The wide thermal tolerance makes it ideal for telecommunications, security, energy, and transportation applications.
✅ Plug and Play :
The module supports Plug and Play technology, which allows for simple and immediate installation without the need for complex configurations. Simply insert it into the device to start transmission, making it a practical and quick solution for integrating into existing network infrastructures.

✅ Hardware:
 Equipped with dual multimode fiber and LC connector, the TSFP-850-MMF ensures a transmission speed of up to 10 Gbps . Its compact size ( 56.5 × 13.4 × 8.5 mm ) and solid construction allow efficient integration even in small spaces, ensuring compatibility with a wide range of professional switches and network devices.

 ✅ Performance :
 With a wavelength of 850 nm for both transmission and reception, the module ensures stable transmission up to 300 meters . It supports a relative humidity between 5% and 95% , ensuring continuous operation in high-density data environments. Its consistent performance makes it perfect for high-capacity networks and mission-critical applications where speed is crucial.

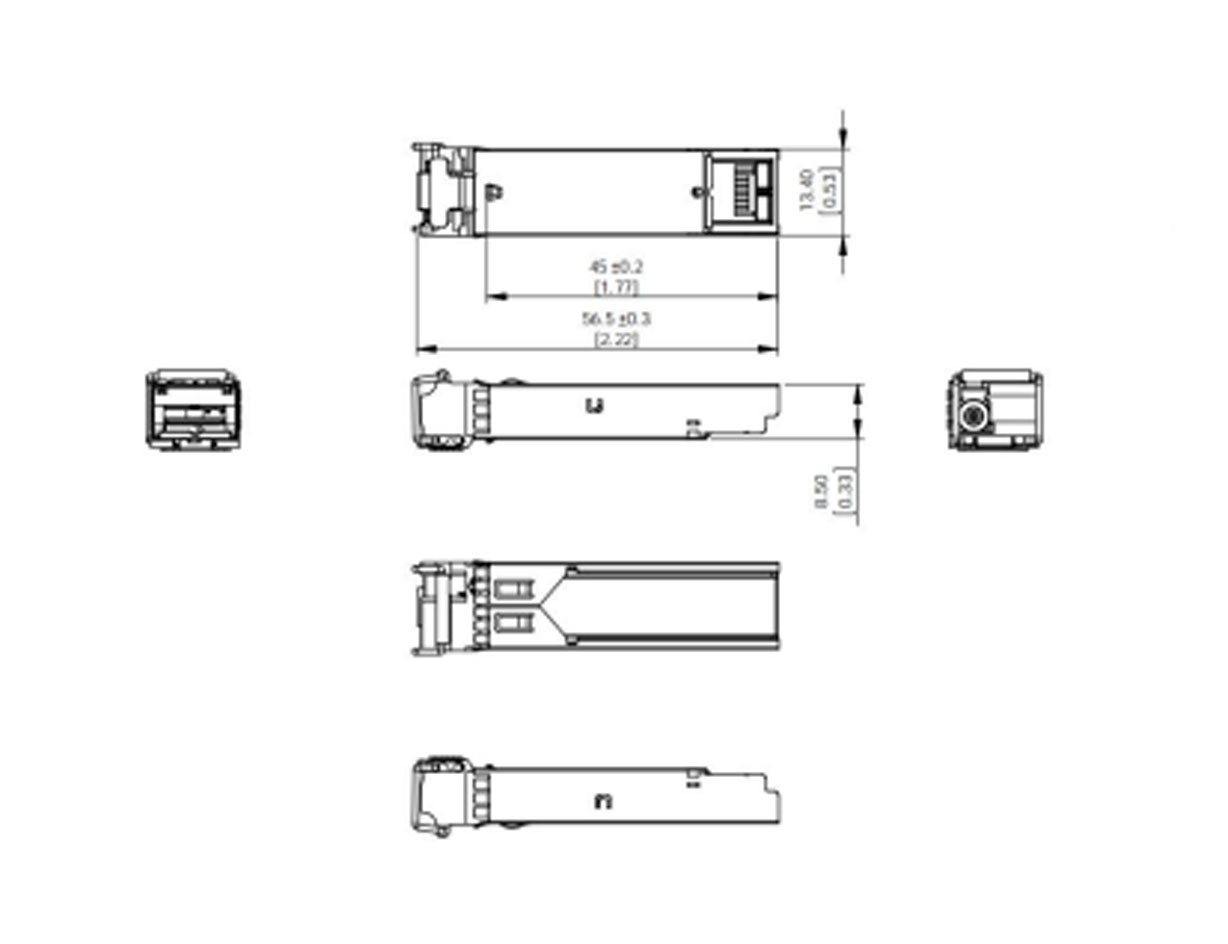

GSFP-1310-20-SMF TSFP-850-MMF dimensions

Technical data sheet

Model TSFP-850-MMF
Hardware
Optical Fiber Type Multiple-mode double fiber
Optical Port Type LC
Speed 10 Gbps

Performance
Wavelength 850nm sending; 850 nm receiving
Transmission Distance 300 m
Operating Humidity 5%–95%
Operating Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Storage Temperature –40–85 °C
Max. Speed of Optical Port 10 Gbps
Product Dimensions 56.5 mm × 13.4 mm × 8.5 mm (2.20" × 0.53" × 0.33")
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
